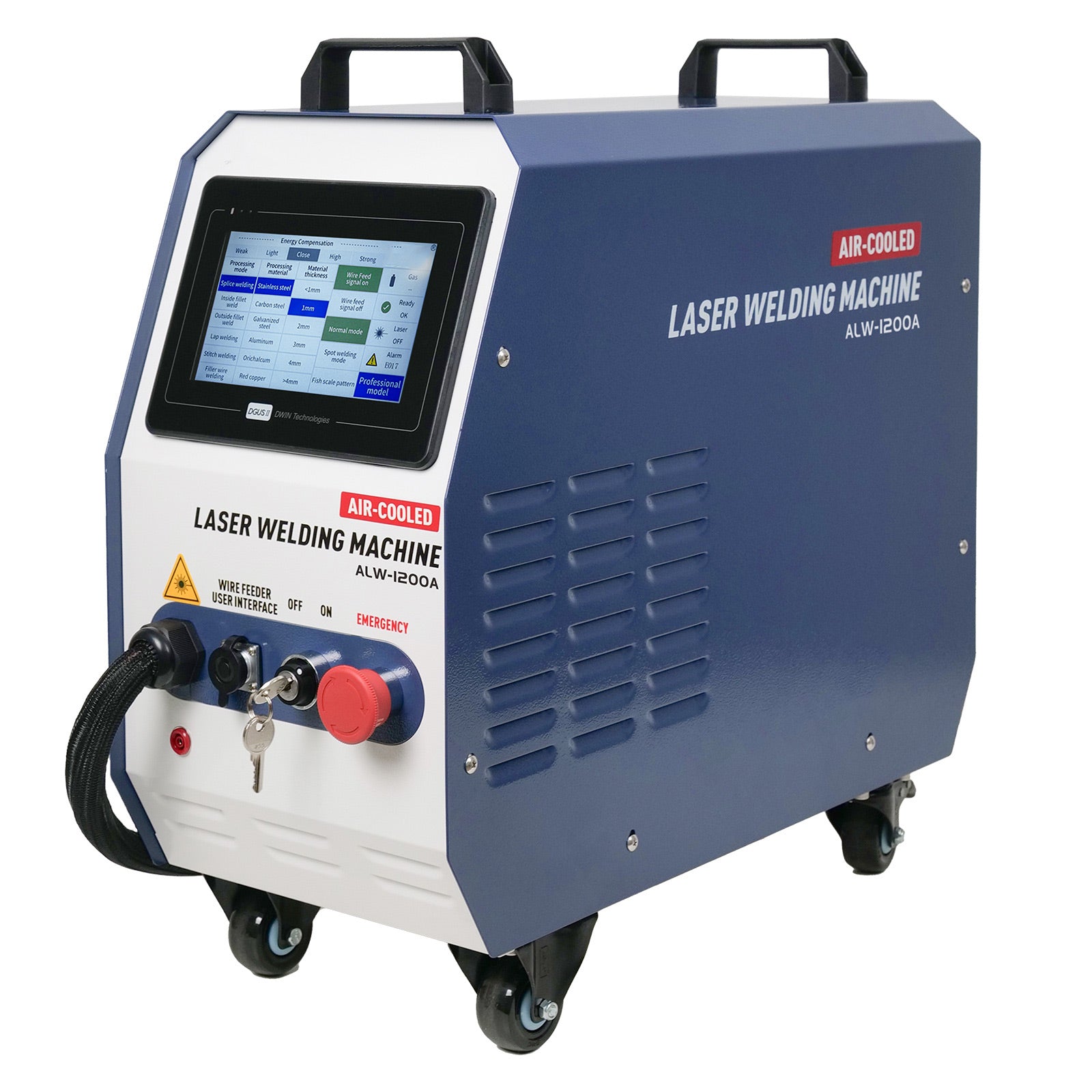

ALW-1200A Portable Air-cooled Laser Welding Machine

ALW-1200A air-cooled fiber laser welding machine is a compact and portable solution designed for efficient and high-quality metal welding. With an integrated air-cooled structure, it requires no additional maintenance while ensuring stable performance. The machine supports multiple operating modes and is suitable for a wide range of materials and industrial applications.

Key Highlights:

• Welding speed is 4–10 times faster than traditional TIG welding, greatly improving efficiency
• 2-in-1 function supports both laser welding and weld seam cleaning without changing nozzles
• Advanced anti-high-reflection technology enables stable welding on aluminum, copper, and brass
• Wide welding capacity supports up to 4mm for steel and aluminum, and up to 1.5mm for brass and copper
• Intelligent system with preset process libraries allows quick setup for different materials and thicknesses

Product Features:

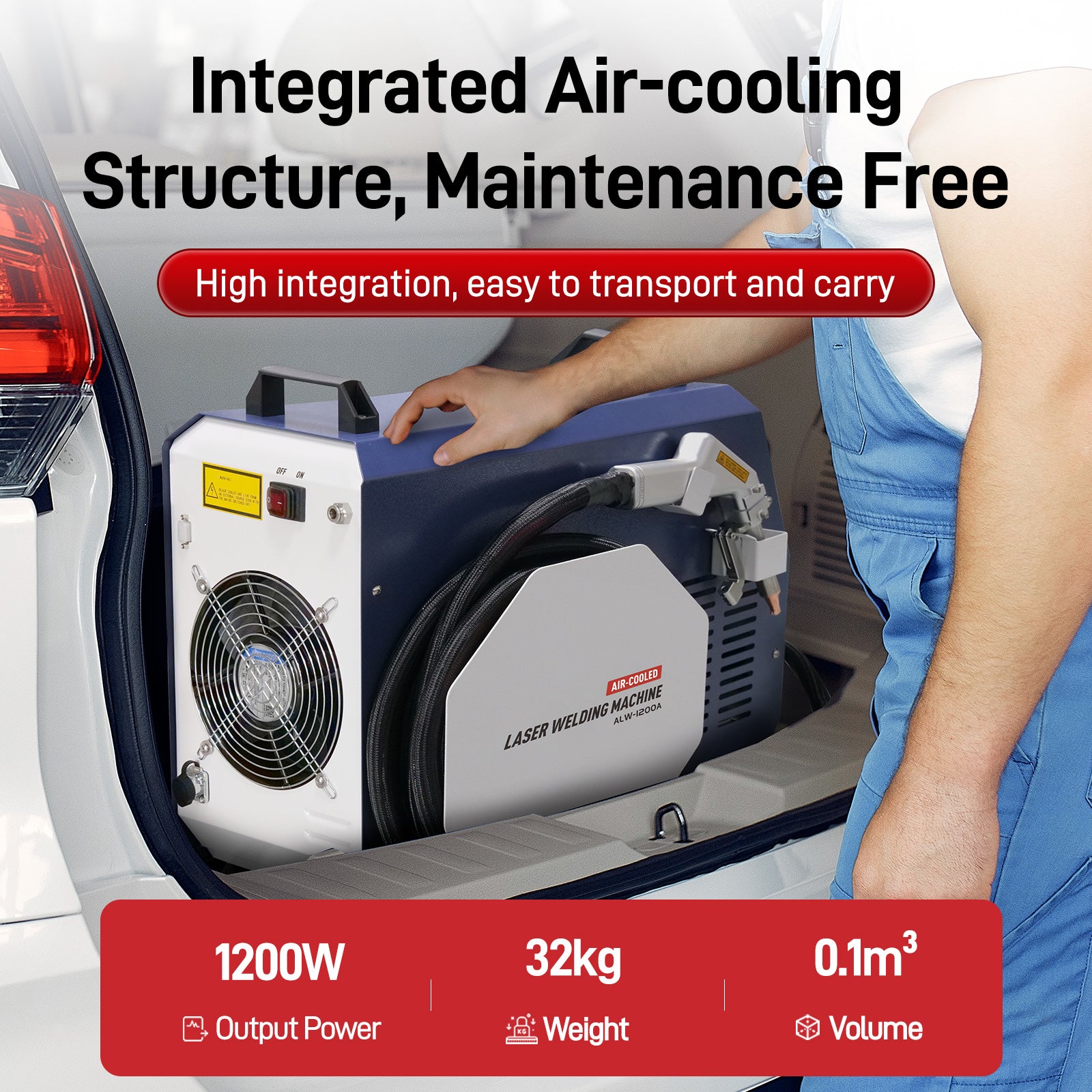

• Compact air-cooled structure with a volume of 0.1m³ eliminates the need for external cooling and reduces maintenance requirements
• Lightweight design with total weight of 32kg and a 650g ergonomic welding gun ensures portability and long-time comfortable operation

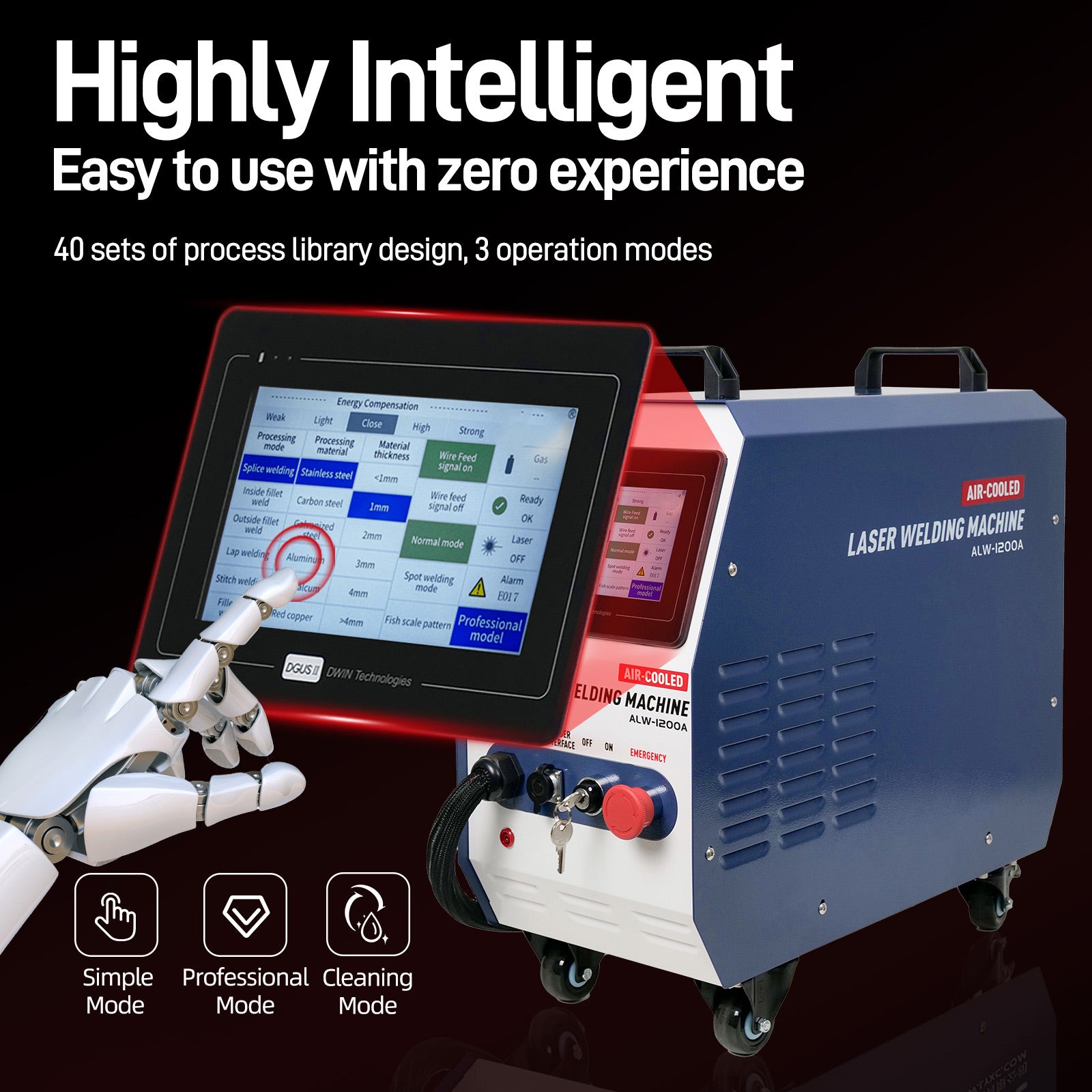

• Equipped with a 7-inch industrial-grade touchscreen, allowing direct adjustment of parameters and easy operation even for beginners
• Supports multiple operating modes including continuous, pulsed, modulation, line array, and timing modes for flexible applications
• High electro-optical conversion efficiency combined with high-quality optical fiber ensures deep penetration and consistent weld quality
• Built-in safety systems including overheating protection, optical cable interlock, and circuit protection enhance operational safety
• Advanced thermal management system with phase-change cooling and high-temperature resistant components ensures stable operation from -10°C to 40°C
• Low noise design with operating noise reduced to 76dB improves the working environment
• Compatible with a wide range of materials including stainless steel, carbon steel, galvanized sheet, aluminum, copper, and brass

Applications:

• Suitable for welding stainless steel, carbon steel, galvanized sheet, aluminum, brass, and copper

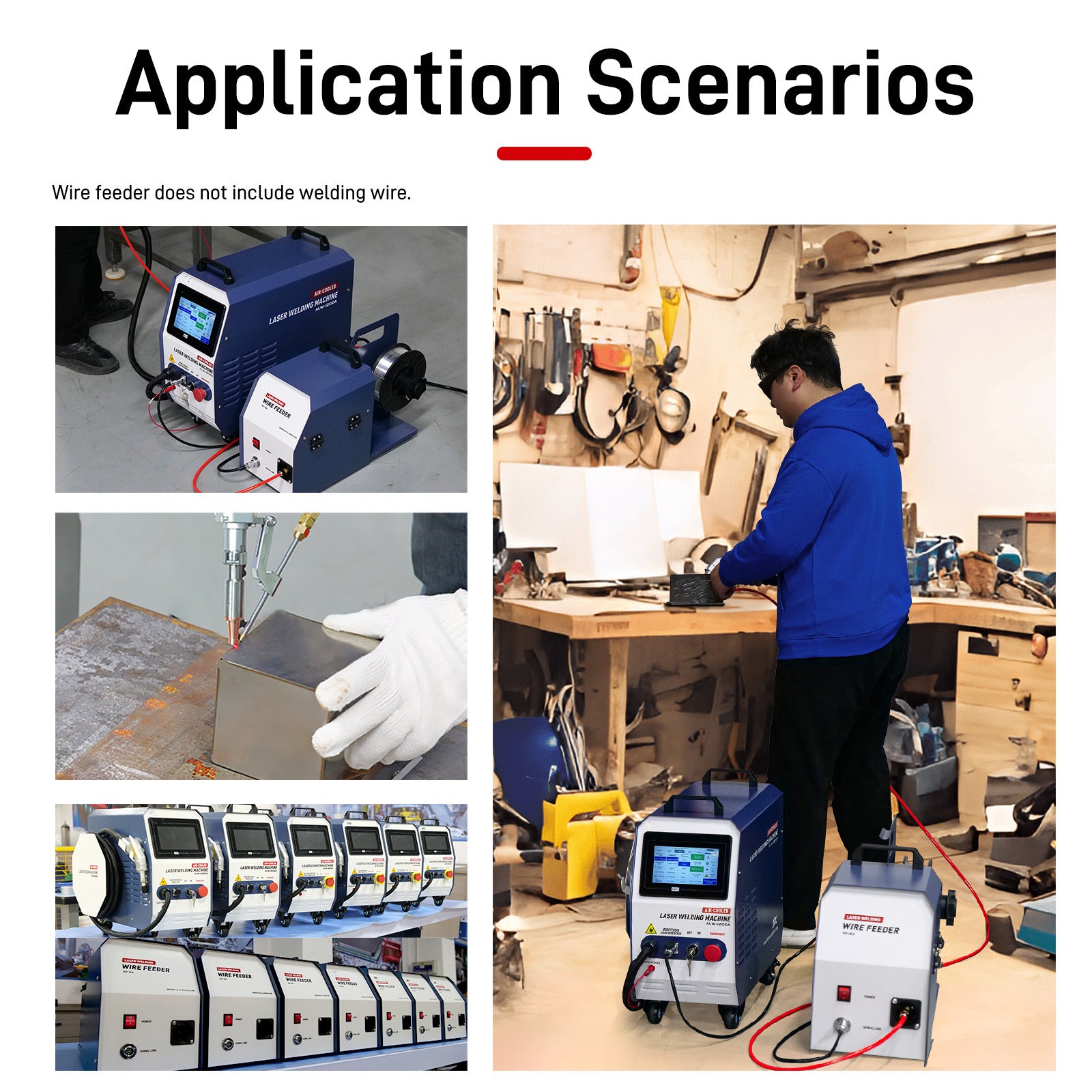

• Widely used in hardware manufacturing, building materials, kitchenware production, aerospace, automotive, and other industrial fields
• Capable of welding up to 4mm aluminum, stainless steel, carbon steel, galvanized sheet, and up to 1.5mm brass and copper

Product Parameters:

• Model: ALW-1200A
• Rated Power: 4KW
• Welding Width: 0-5mm
• Gross Volume: 0.1m³
• Weld Gun Weight: 650g
• Laser Wavelength: 1080±10nm
• Input Voltage: 220V±10%, 50Hz/60Hz
• Cable Length: 5m (max customizable length 10m)
• Operating Temperature: -10°C to 40°C
• Protective Gas: Argon, Nitrogen (0.2-0.6MPa)
• Applicable Welding Wire Diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm
• Wire Material: Stainless steel, carbon steel, aluminum, brass, copper
• Operating Mode: Continuous / Pulsed / Modulation / Line array / Timing mode
• Machine Dimension: 550×320×550mm

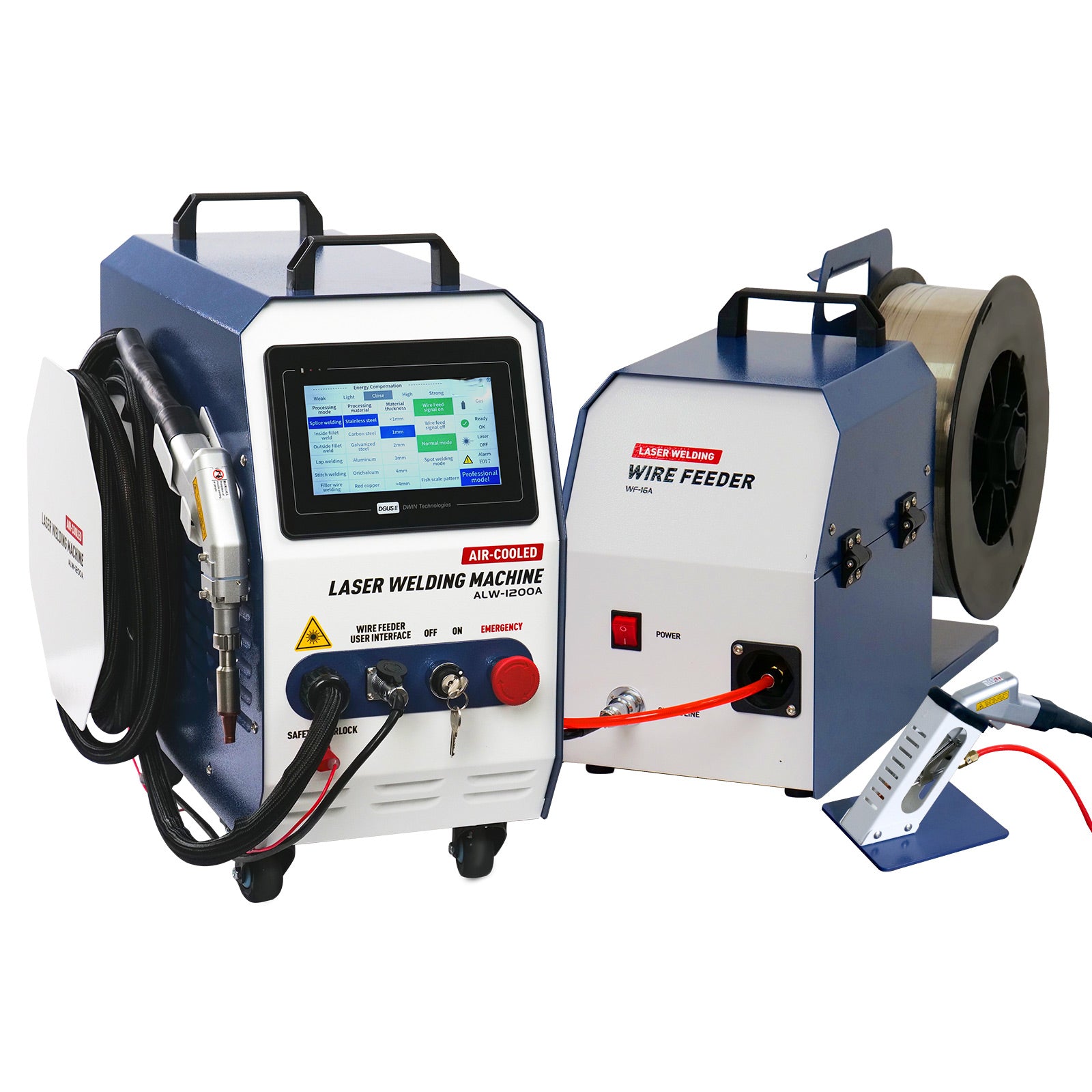

• Gross Weight: 32kg (wire feeder weight 10kg)

Warranty and Service:

• 1 year warranty for the whole machine and 2 years warranty for the laser source, consumables not included
• After-sales service centers available in CA and NY, USA, providing remote assistance for operation issues
• Lifetime online technical support available
• Free shipping to your door within about 5-10 days
• Consumables include protective lenses and copper nozzles, available for purchase when needed
• Regular maintenance includes cleaning protective lenses; technical support is available for repairs
