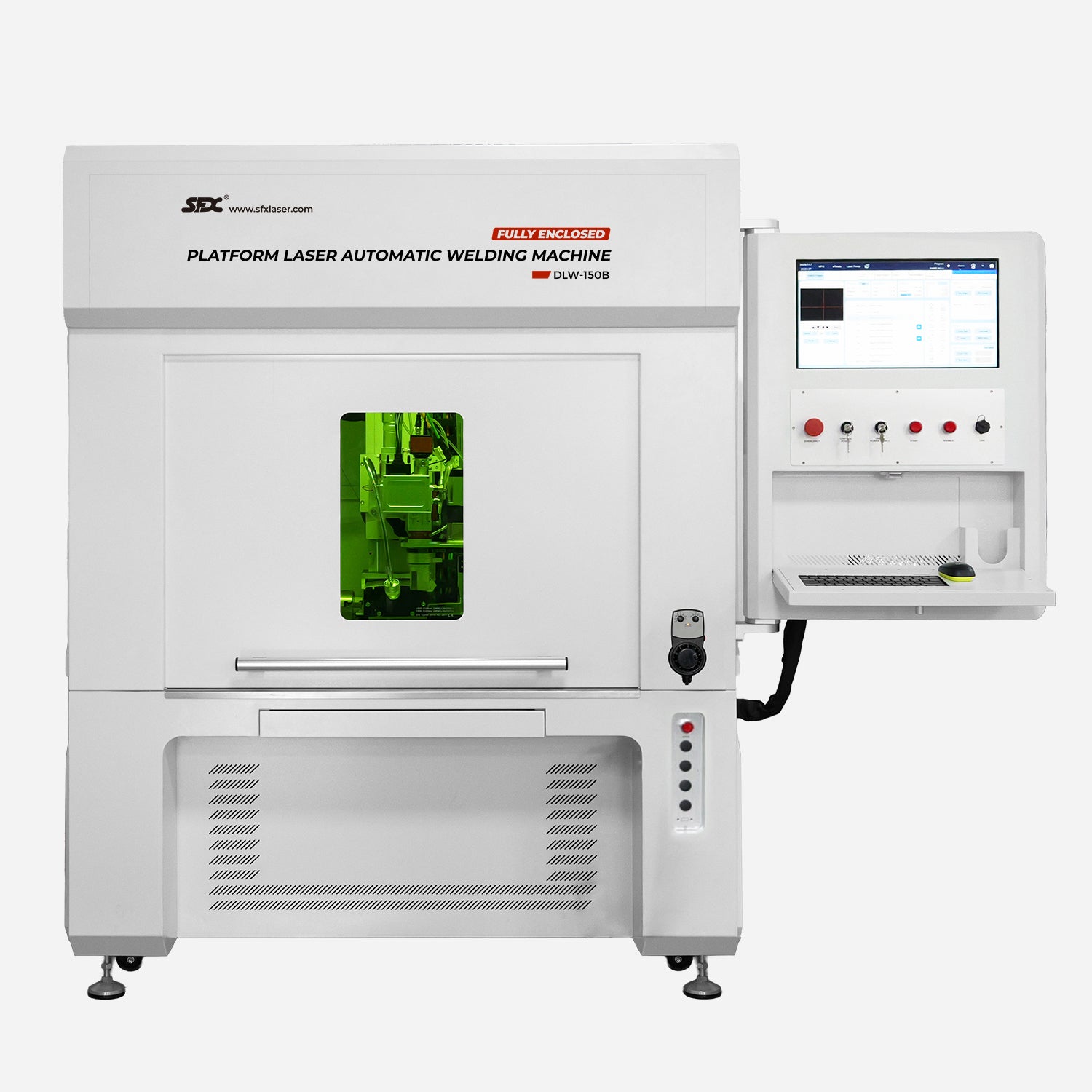

150W 300W Enclosed Platform Laser Welding Machine Customized Ultra-thin Metal Precision Intelligent Welding Machine

DLW-150B DLW-300B Customized ultra-thin metal precision Intelligent Automated Laser welding machine.

Key Highlights:

• Precision welding of ultra-thin metals below 0.5mm, ensuring stable performance in micro-scale welding applications
• Quasi-continuous-wave laser technology, combining the advantages of continuous-wave and pulsed lasers for balanced energy delivery
• Welding capacity range of 0.2–1.5mm, suitable for a wide range of fine welding tasks
• High energy output with low heat impact, delivering minimal thermal deformation and clean weld appearance

• Customized for new energy battery module welding applications, optimized for industrial battery production scenarios
• Supports fully automatic online welding for small, medium, and complex workpieces

Product Features:

• Equipped with an automated lifting and clamping structure to prevent incomplete welding and weak weld joints
• Supports multiple 2D graphic selections for flexible welding path design
• Single-pass welding area is enlarged with more uniform laser energy distribution for consistent results
• Teaching programming system enables fast setup and easy operation start
• Multilingual process library allows one-time setup with repeatable use for different production needs
• Full CNC system integration enables precise motion control and smooth welding operation
• Intelligent motion trajectory with one-click positioning, reducing manual adjustment time and improving efficiency
• Automatic weld recognition and calibration system enhances workpiece yield rate

• Online diagnostic system with remote technical support for instant troubleshooting and maintenance assistance

Application:

Applicable materials: stainless steel, mold steel, carbon steel, aluminum, zinc, nickel and other materials.

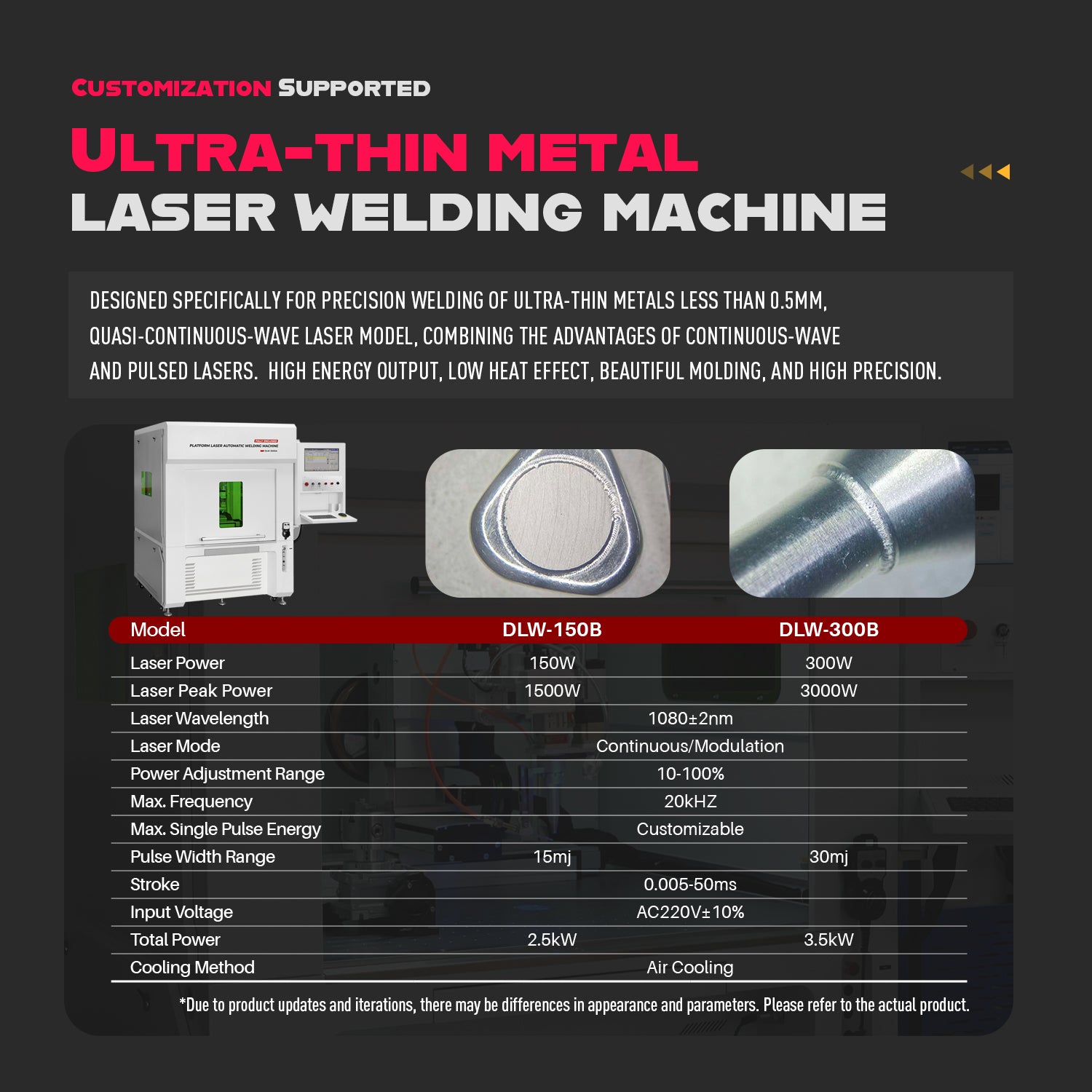

Product Parameters:

• Model: DLW-150B / DLW-300B
• Laser Power: 150W / 300W
• Laser Peak Power: 1500W / 3000W
• Laser Wavelength: 1080±2nm
• Welding Capacity: 0.2–1.5mm
• Laser Mode: Continuous/Modulation
• Power Adjustment Range: 10–100%
• Max. Frequency: 20KHz
• Max. Single Pulse Energy: Customizable
• Pulse Width Range: 15mj / 30mj
• Stroke: 0.005–50ms
• Input Voltage: AC220V±10%
• Total Power: 2.5KW / 3.5KW
• Cooling Method: Air Cooling

Warranty and Service:

• 1 year warranty for the whole enclosed automatic laser welding machine, 2 years warranty for the laser source.
• Offer Remote Assistance. Free Shipping by Sea and truck, No Import Duty for American Customers. Lifetime Online Support.
• Payment Method: 30% prepayment, 70% before shipment is acceptable.
