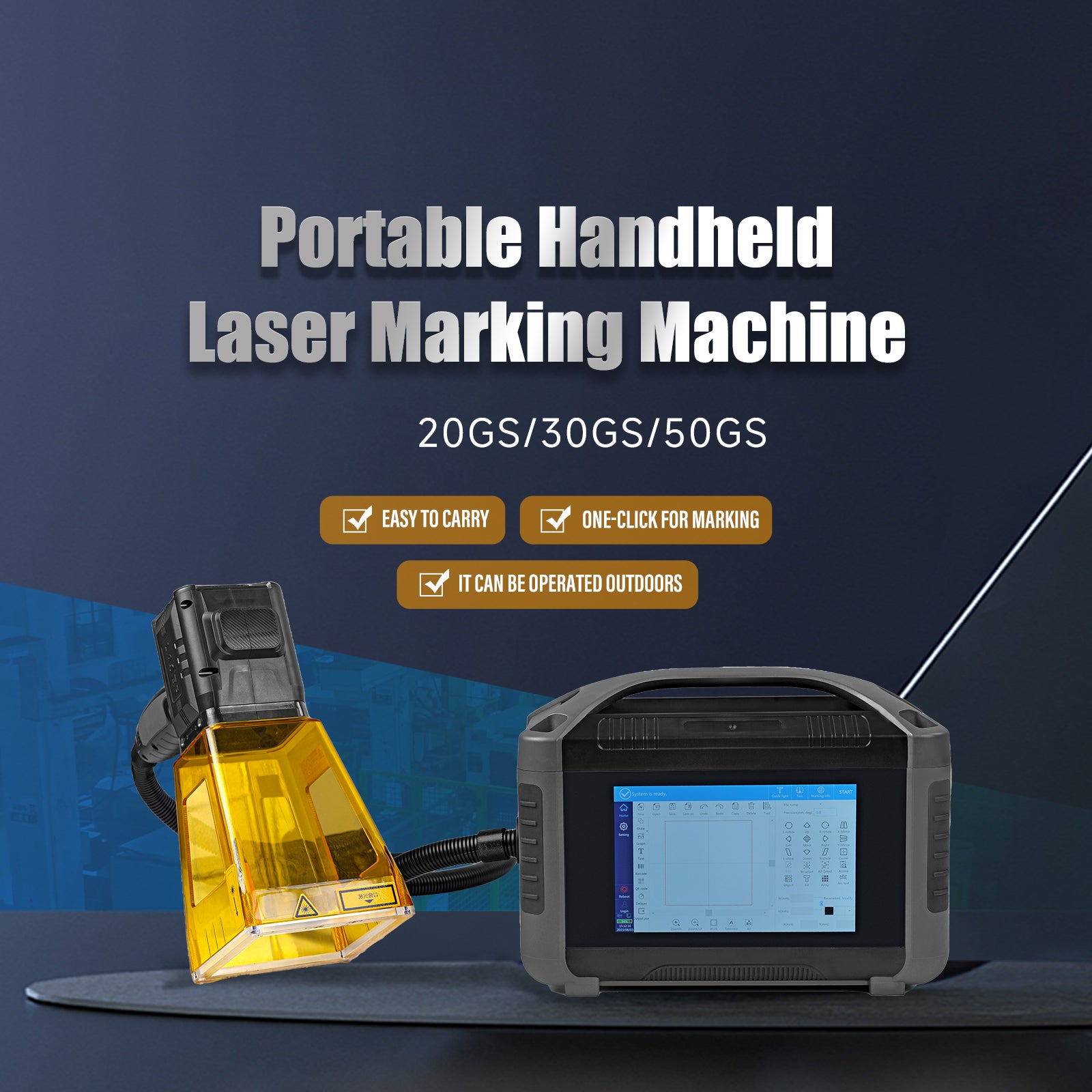

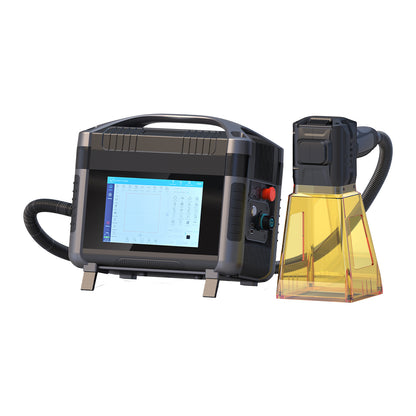

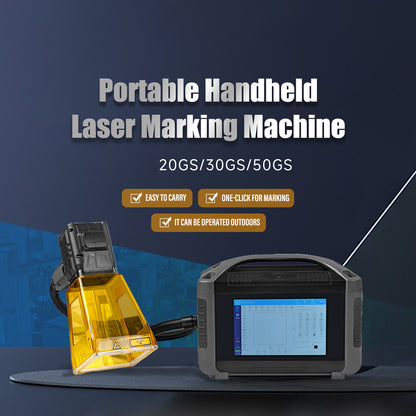

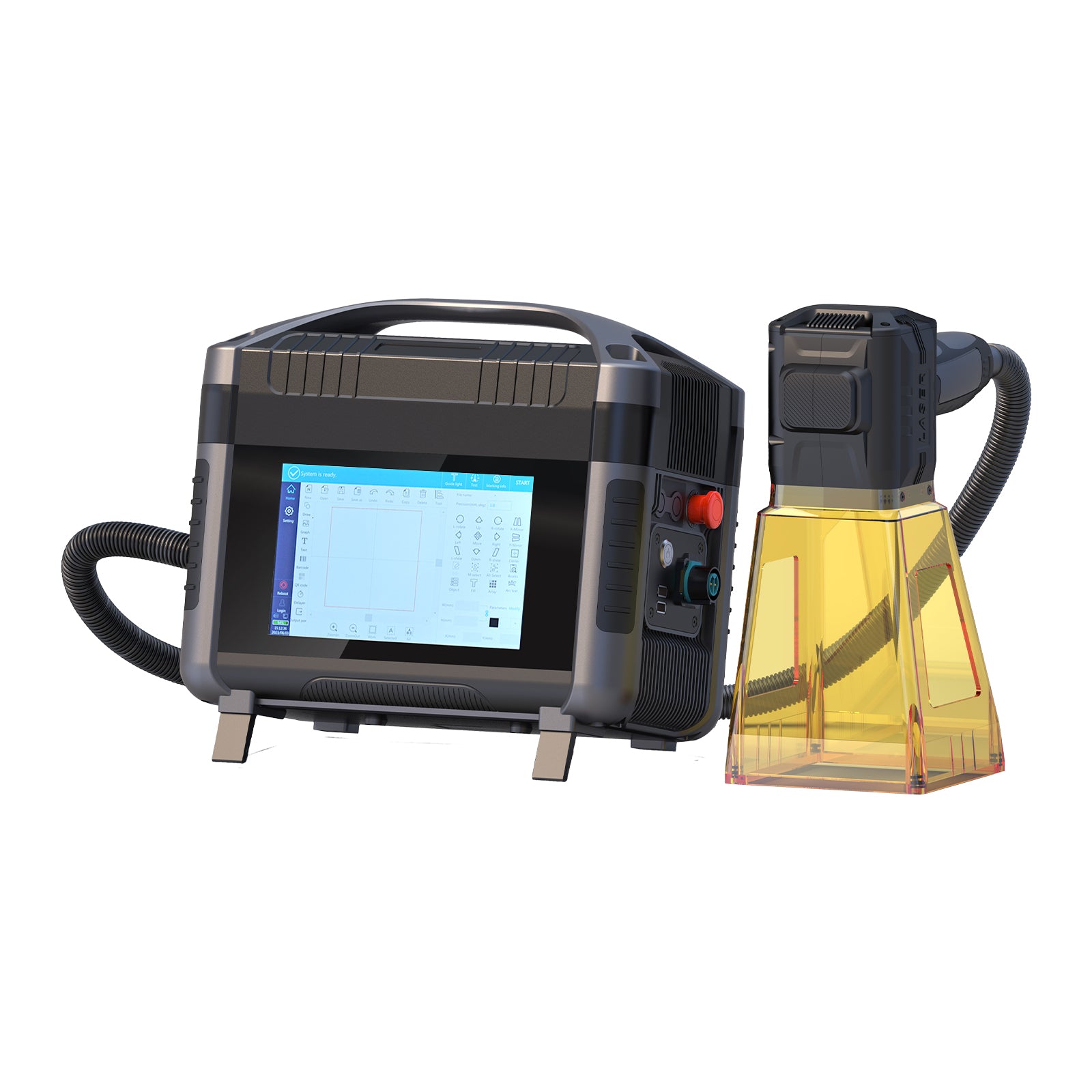

20W 30W 50W Portable Laser Marking Machine Handheld Fiber Laser Metal Engraver

20W 30W 50W portable laser marking machine is a compact and lightweight solution designed for high-precision marking on a wide range of materials. With flexible power options, intelligent control system, and easy operation, it is suitable for both indoor and outdoor applications, offering efficient and reliable marking performance.

Key Highlights:

• Portable and lightweight design with battery option for outdoor use
• One-click operation for fast and easy marking
• High marking speed up to 7000mm/s with precise and clear results
• Supports both plug-in and rechargeable battery power supply
• Wide compatibility with multiple file formats, barcodes, and languages
• High-precision marking with repeat accuracy up to 0.01mm

Product Features:

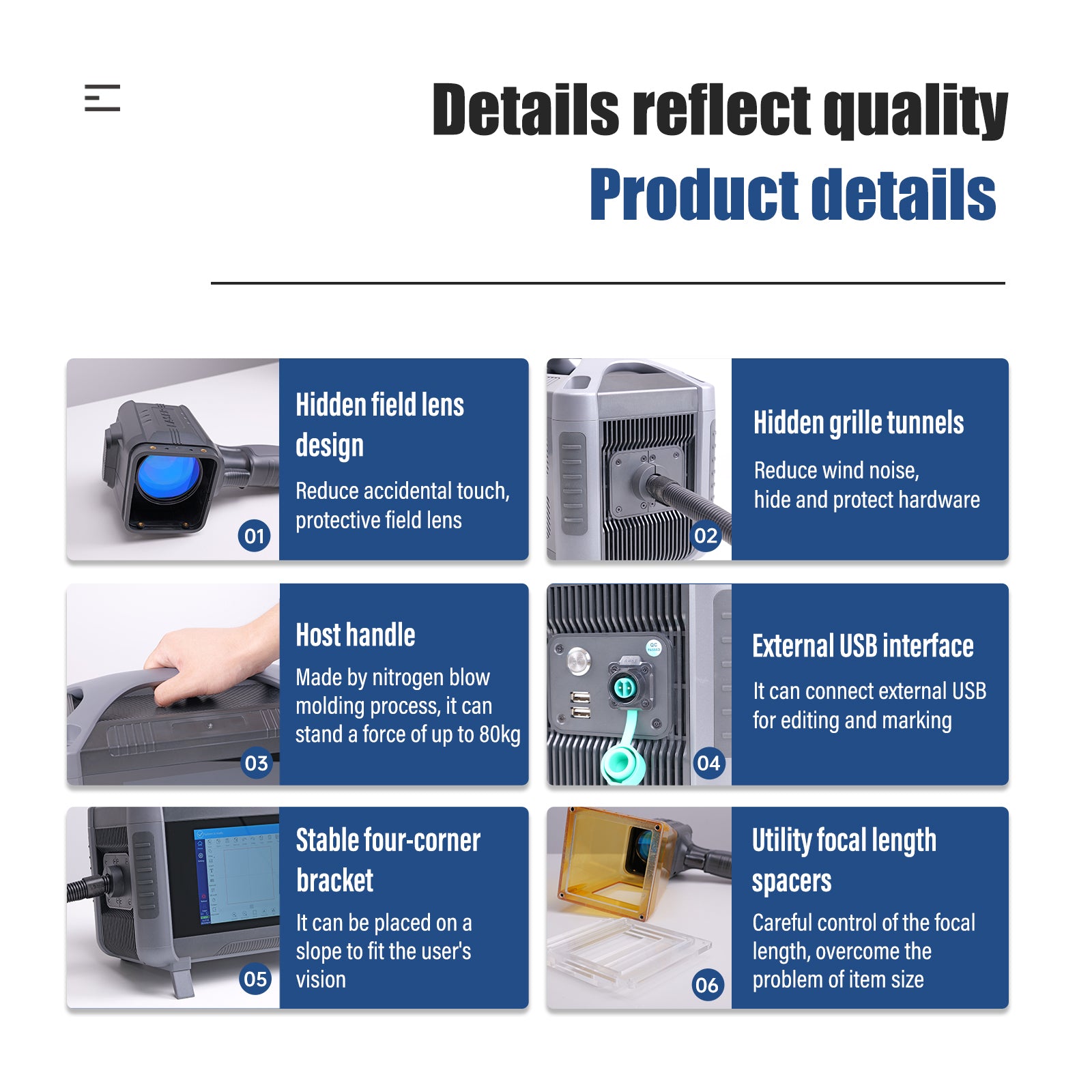

• Compact structure with total weight of 6–8.8kg and 1kg marking head, easy to carry and operate in different environments

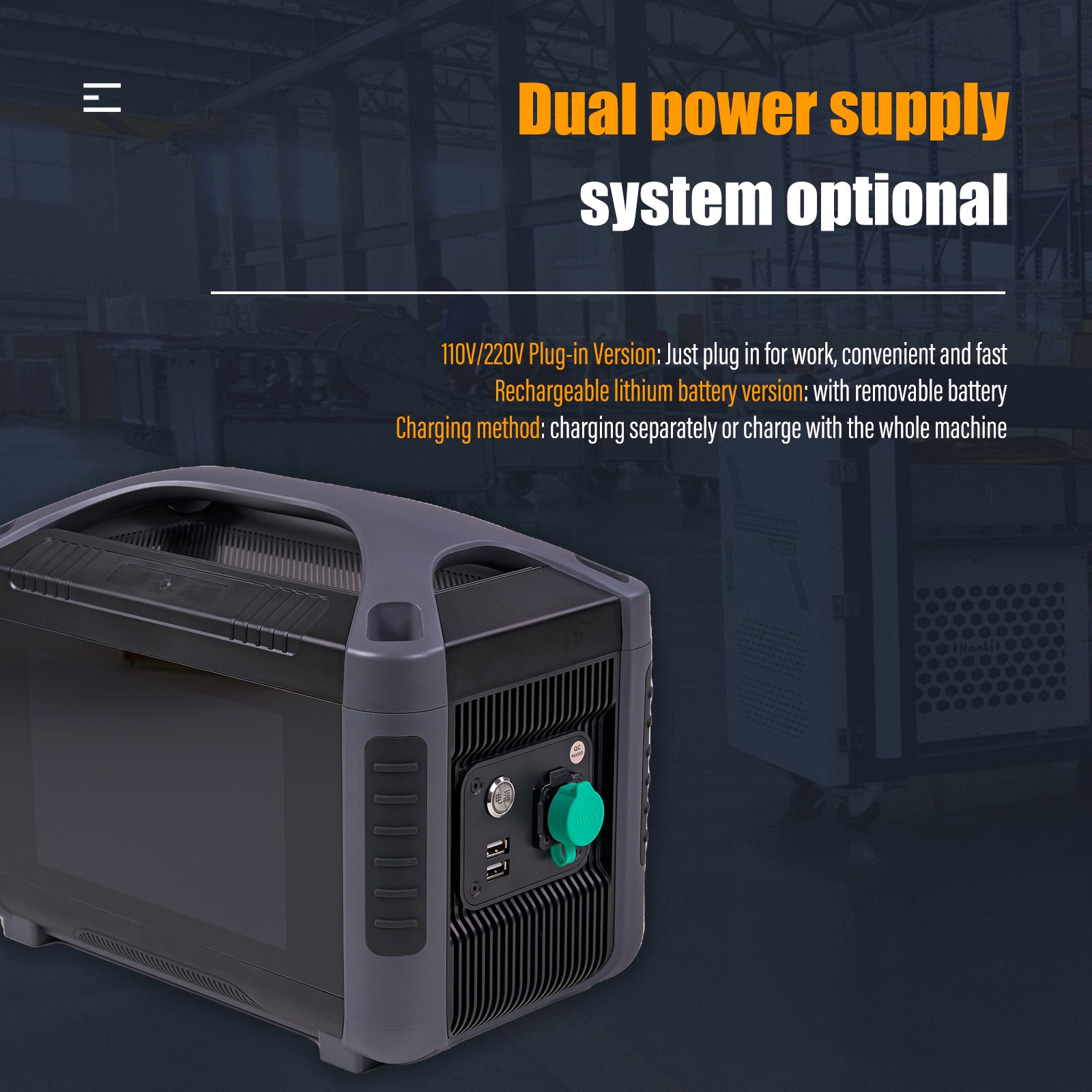

• Dual power supply options including 110V/220V plug-in version and removable lithium battery, supporting flexible working conditions

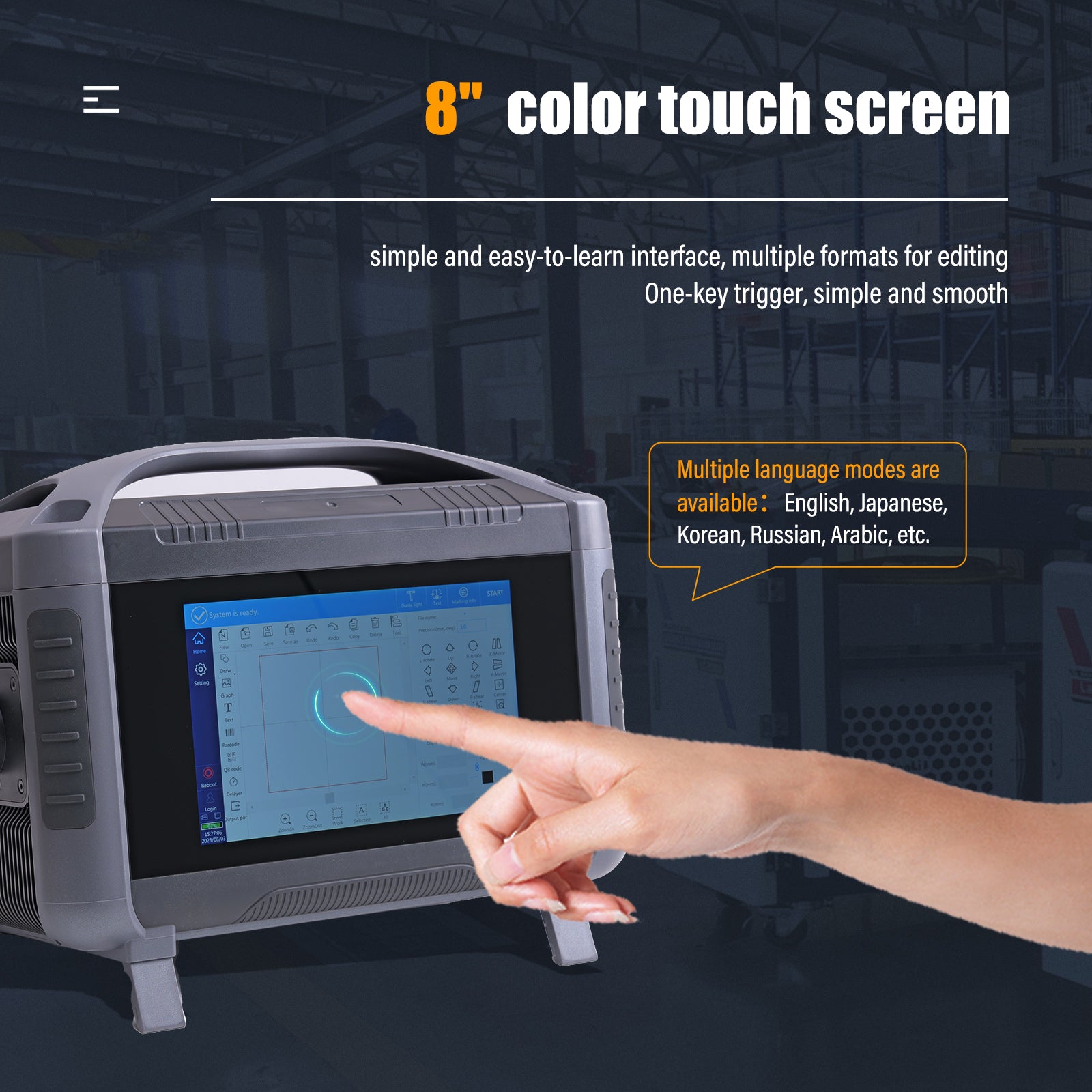

• Integrated control system with 8-inch capacitive touchscreen allows simple operation and quick setup
• High-performance system with 8-core processor ensures fast response and stable operation

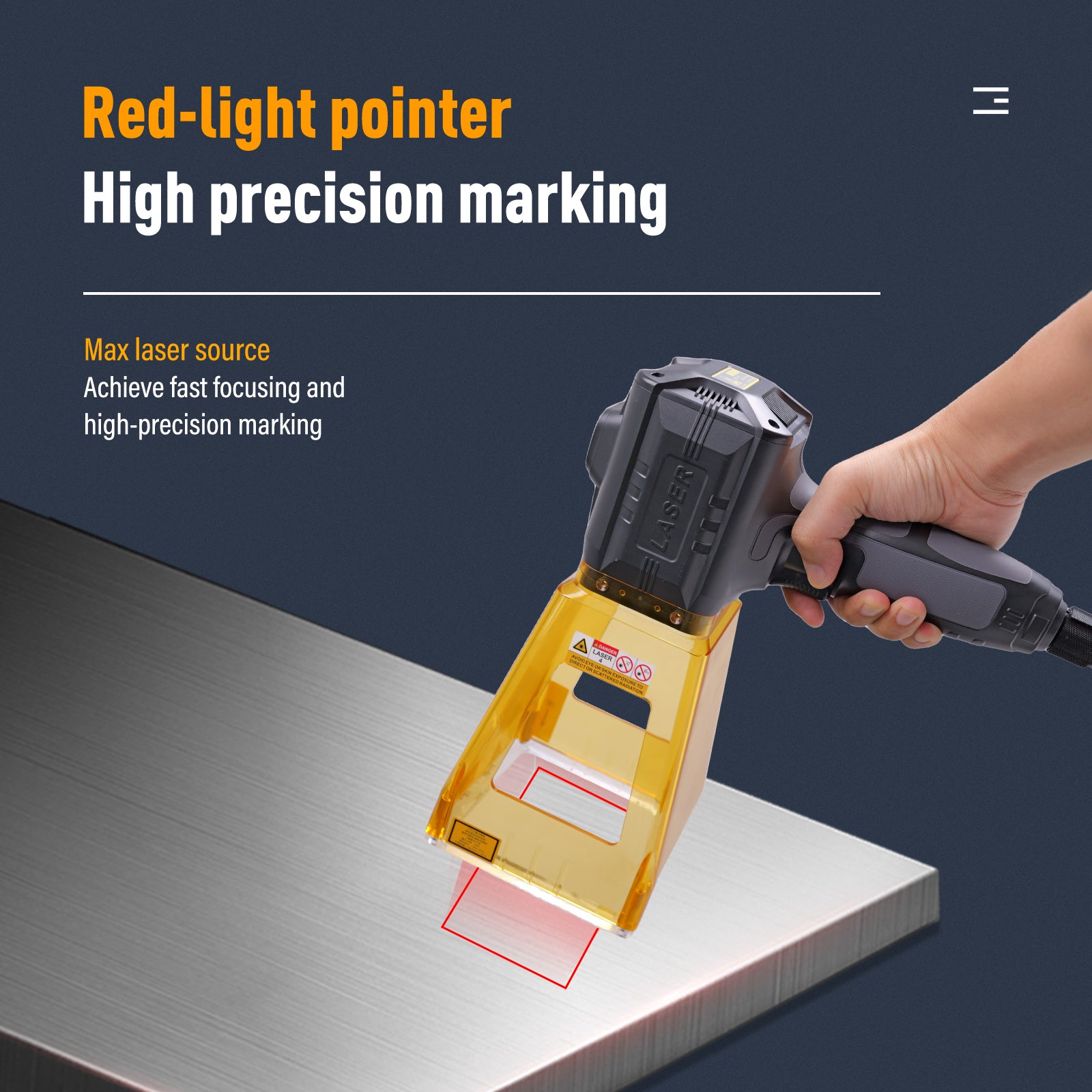

• Equipped with red-light positioning for quick focusing and improved marking accuracy
• Supports multiple file formats including BMP, DXF, HPGL, JPEG, and PLT for flexible design input
• Compatible with various barcode formats such as CODE39, CODE128, CODE126, and QR codes
• Supports multiple languages including English, Japanese, Korean, Russian, and Arabic
• Meets international safety and quality standards including CE, UN38.3, and MSDS certifications

Applications:

• Suitable for marking on metal materials such as gold, silver, aluminum, copper, and stainless steel
• Applicable for non-metal materials including plastic and leather
• Ideal for barcode marking, logo engraving, text marking, nameplate engraving, date coding, and pattern marking
• Widely used for customization, product identification, and industrial marking applications

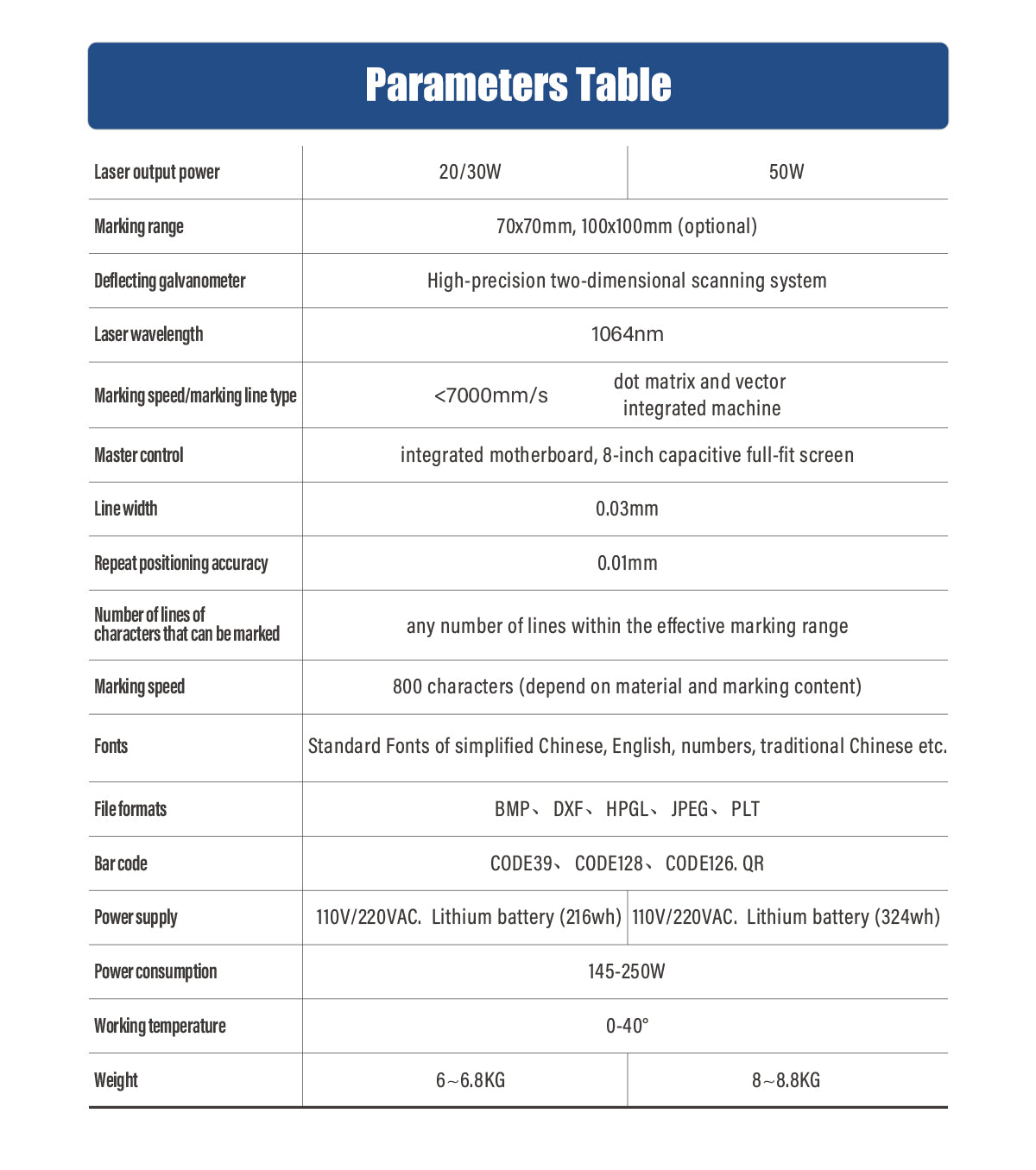

Product Parameters:

• Laser Power: 20W / 30W / 50W
• Marking Range: 70×70mm, 100×100mm, optional 145×145mm
• Laser Wavelength: 1064nm
• Marking Speed: ≤7000mm/s
• Line Width: 0.03mm
• Repeat Positioning Accuracy: 0.01mm
• Marking Type: Dot matrix and vector integrated
• Control System: Integrated motherboard with 8-inch touchscreen
• Supported Fonts: Simplified Chinese, English, numbers, traditional Chinese, etc.
• File Formats: BMP, DXF, HPGL, JPEG, PLT
• Barcode Types: CODE39, CODE128, CODE126, QR
• Power Supply: 110V/220V or rechargeable lithium battery (216Wh / 324Wh)
• Power Consumption: 145–250W
• Working Temperature: 0–40°C
• Weight: 6–6.8kg / 8–8.8kg

Warranty and Service:

• 1 year warranty for the whole machine and 6 months warranty for the battery
• After-sales service center available in NY, USA, providing remote assistance
• Lifetime online technical support
• US stock available with free shipping, delivery within 7–10 days, no import duty for US customers
