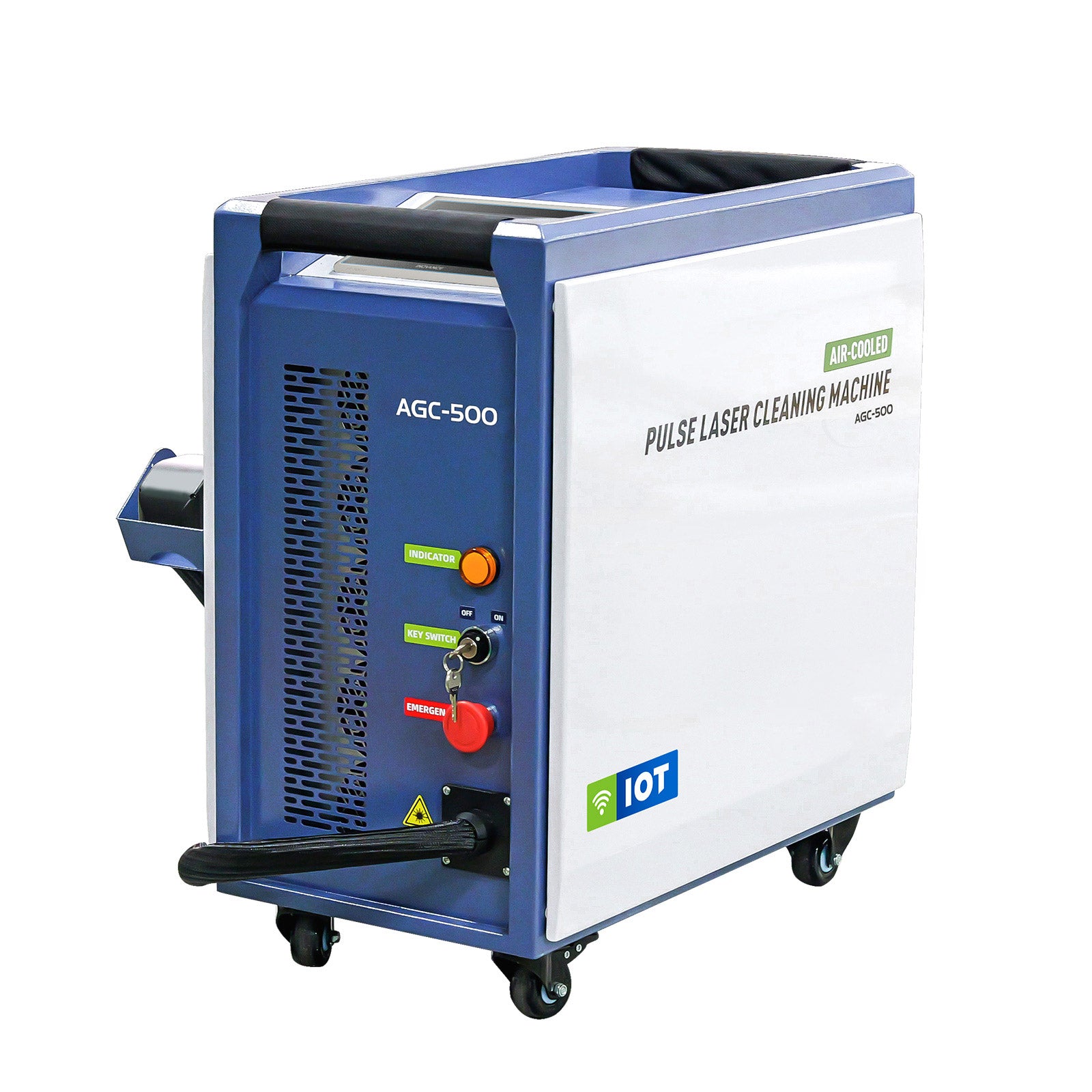

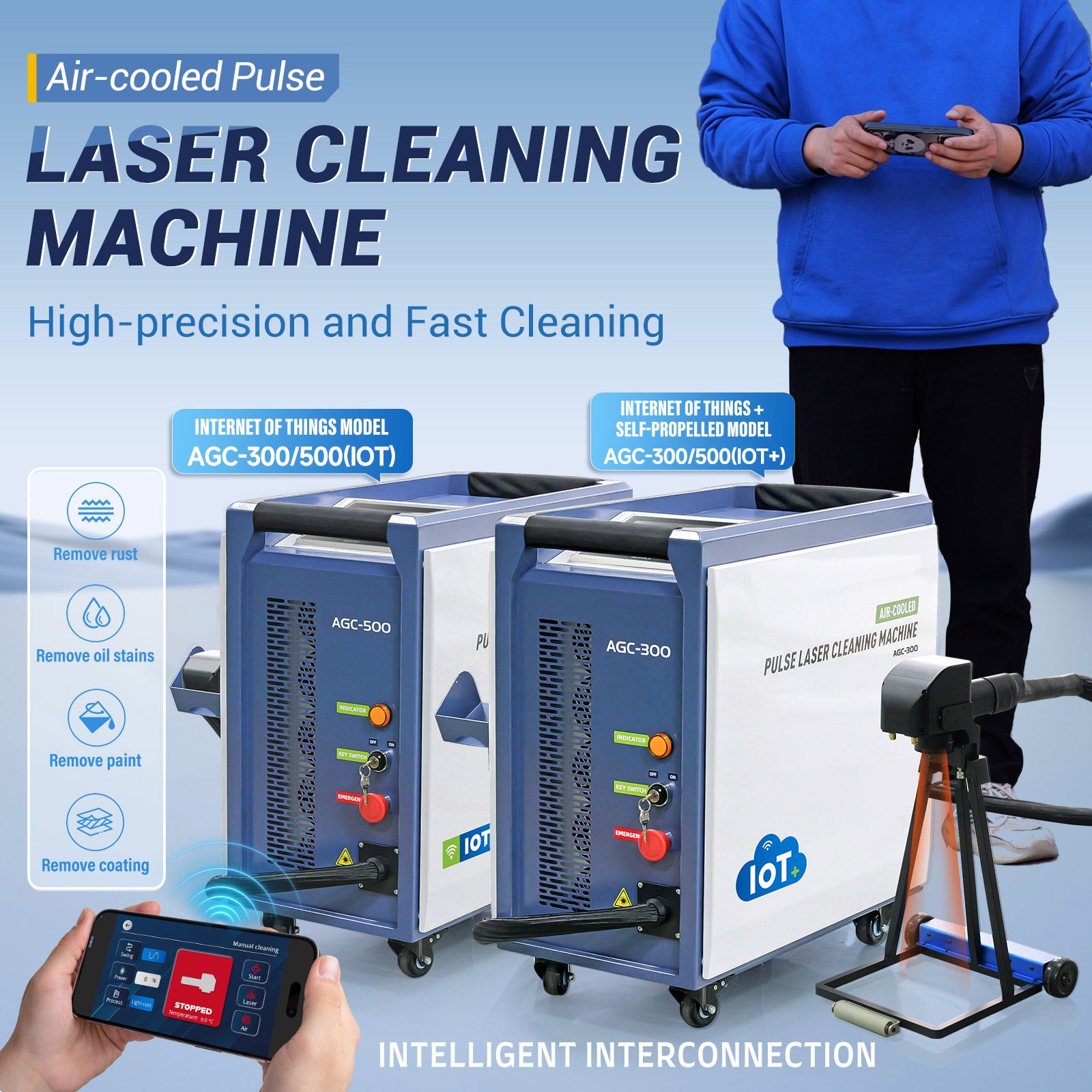

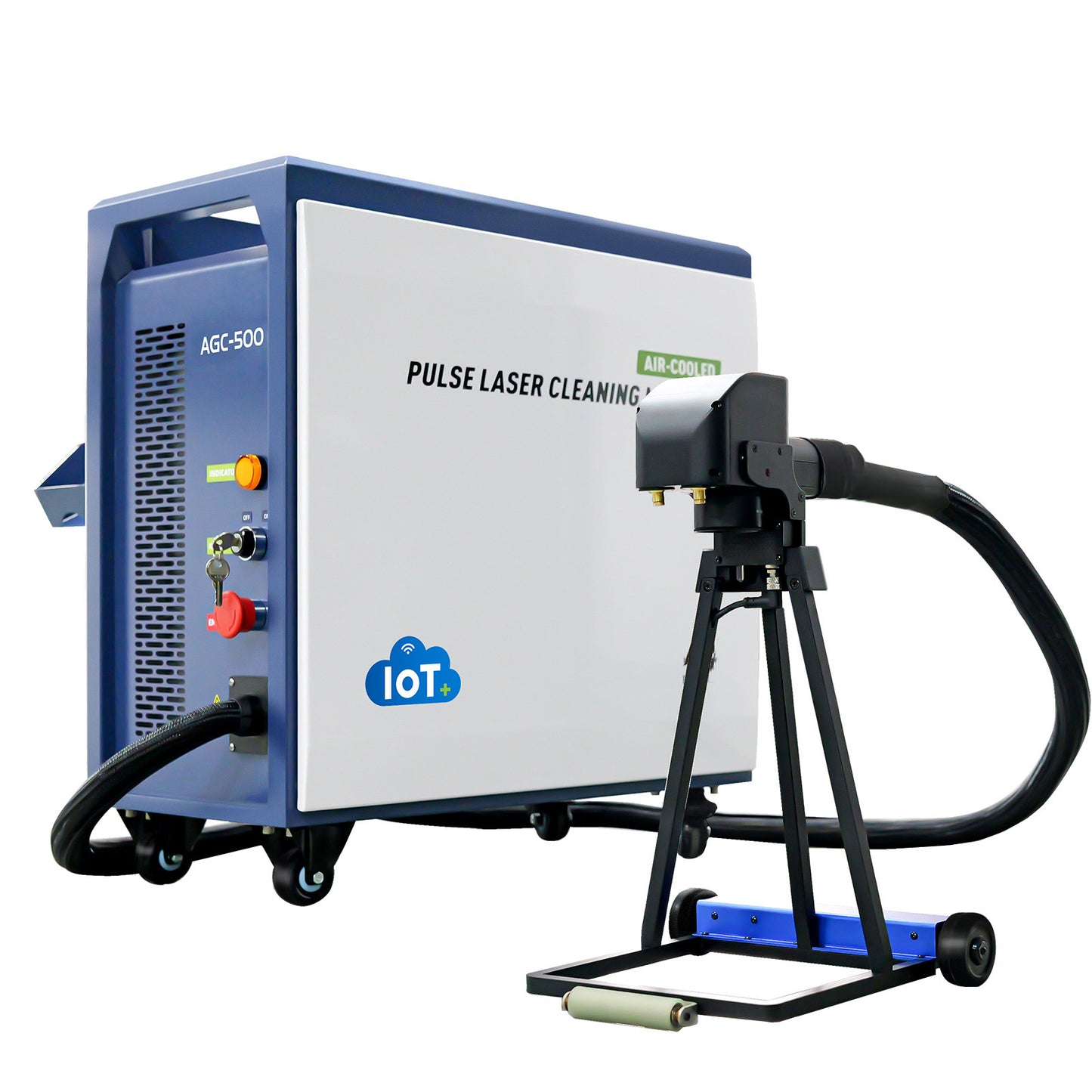

Clyertek AGC300 AGC500 IoT Pulse Laser Cleaning Machine Air-cooled Laser Rust Removal Machine

AGC-300 AGC-500 IoT Air-cooled laser cleaning machine is the update version of AGC series, designed for efficient rust, paint, oil, coating, and oxide removal. With an integrated air-cooled structure, it offers easy operation, stable performance, and low maintenance, making it suitable for both industrial workshops and on-site applications.

Key Features and Advantages

• Compact and lightweight design: Integrated air-cooled structure with a compact size and volume of only 0.15 m³, reducing energy consumption, labor costs, and maintenance requirements.
• Non-contact cleaning: Laser cleaning does not damage the surface of parts. No chemical reagents or consumables are required, and no secondary dust pollution is generated compared with traditional sandblasting.
• Easy operation with preset modes: The machine includes 6 preset cleaning processes for rust, oil, paint, coating, oxide, and wood cleaning, plus 3 customizable modes to meet different usage requirements.

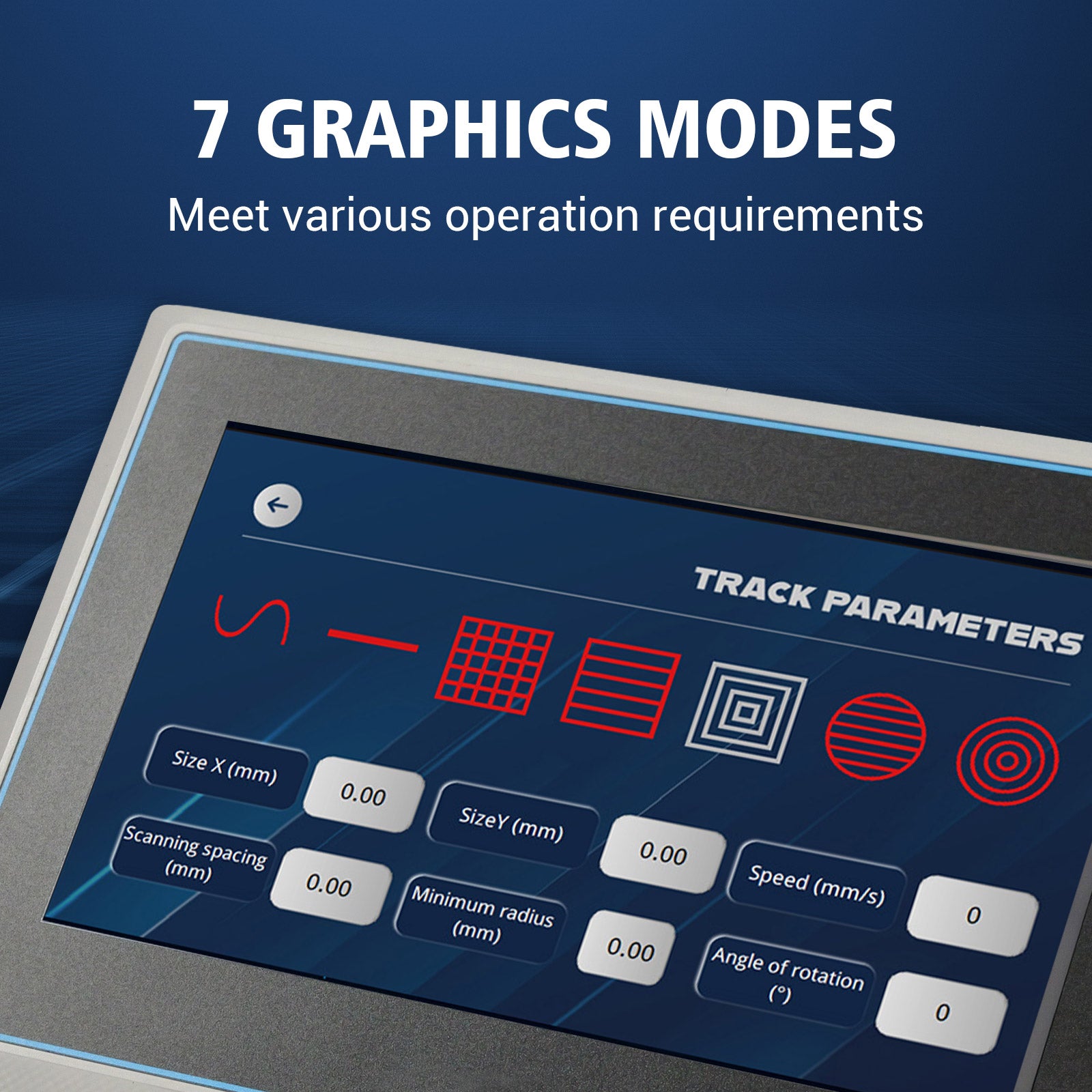

• High cleaning efficiency: Equipped with a double-wobble cleaning head with scanning width up to 190 mm, providing high cleaning efficiency and multiple graphics modes for different working conditions.
• Strong output performance: High power density and strong output make the machine highly efficient for laser rust removal and laser paint coating removal.
• Wide voltage compatibility: AC110–220V wide voltage design supports different power supply standards in various countries.
• Reliable continuous operation: The machine has been tested to operate continuously at 40°C for 8 hours without power attenuation, ensuring stable performance in demanding environments.
• Advanced anti-high reflection protection: Anti-high reflection technology enables safe cleaning of highly reflective materials such as copper, aluminum, gold, silver, and galvanized sheets without damaging the laser source.

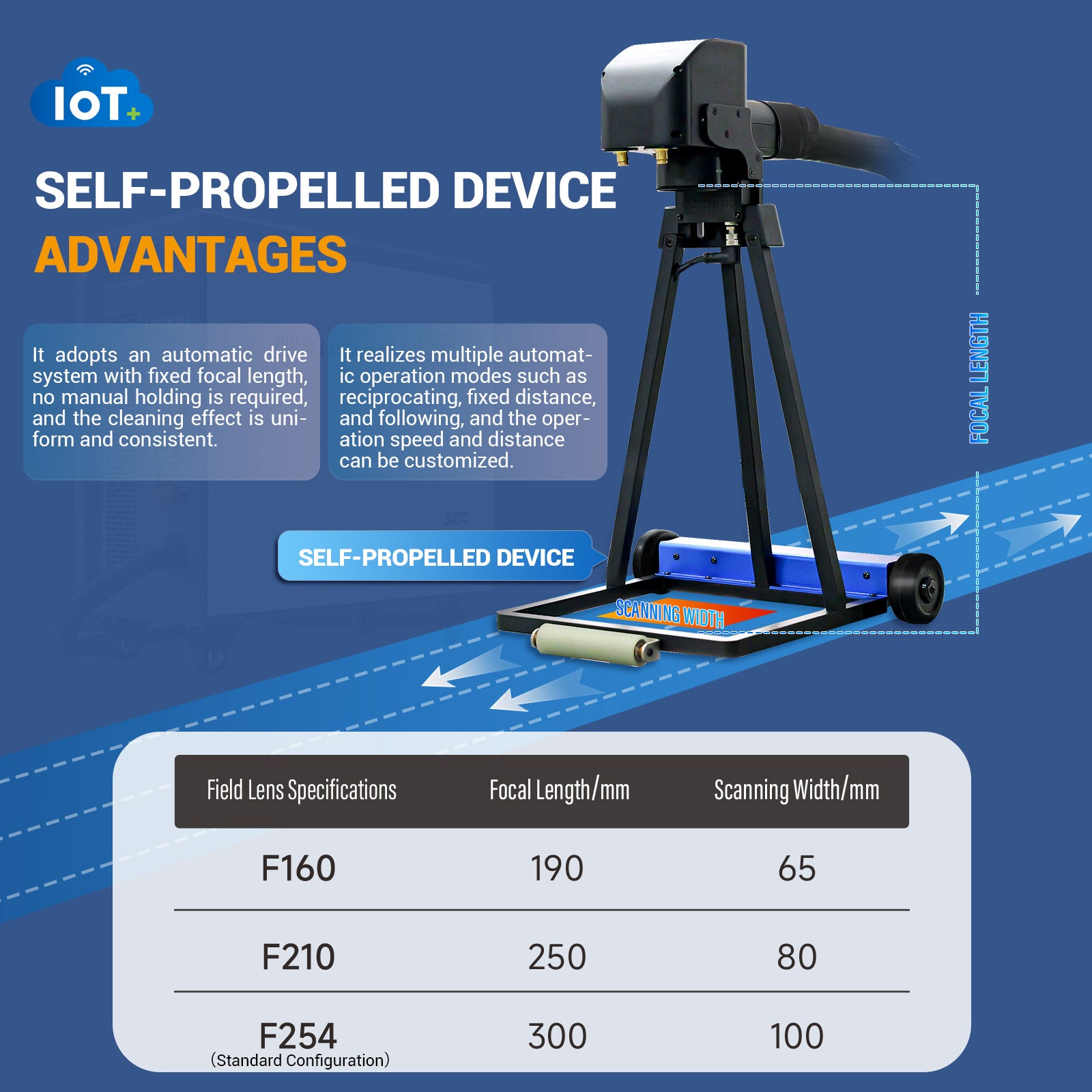

• Self-propelled device advantages: The automatic drive system with fixed focal length eliminates the need for manual holding and ensures uniform and consistent cleaning results. It supports multiple automatic modes such as reciprocating movement, fixed distance, and following mode, and the operation speed and distance can be customized.
• Intelligent interconnection: Remote control is available through smartphone operation, allowing real-time parameter adjustments without distance limitations. Online diagnostics are supported, enabling the technical team to provide remote support and solve technical issues quickly.

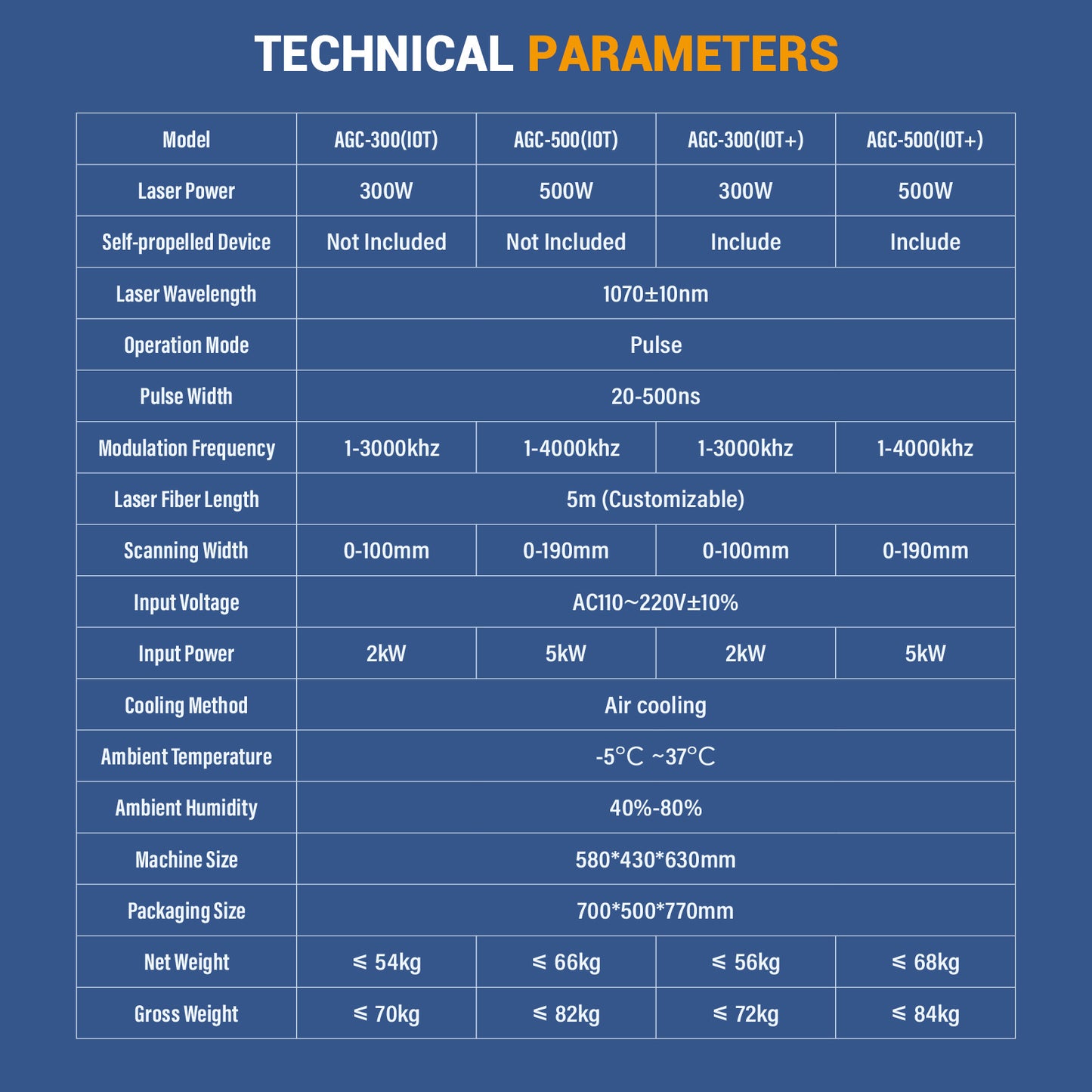

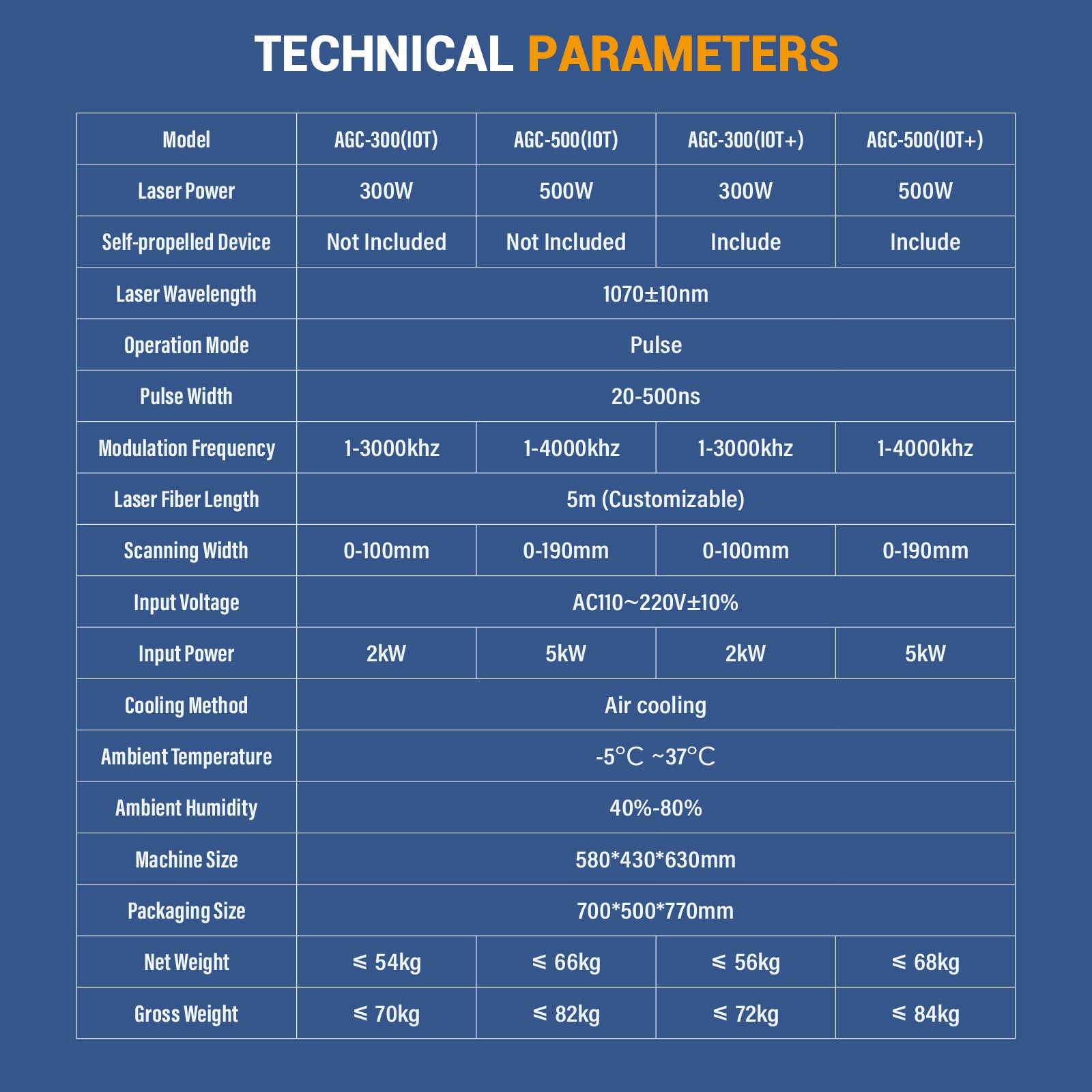

Technical Specifications

• Model: AGC-300 (IoT) / AGC-300 (IoT+) / AGC-500 (IoT) / AGC-500 (IoT+)
• Laser Power: 300W / 500W
• Laser Wavelength: 1070 ±10 nm
• Operation Mode: Pulse
• Pulse Width: 20–500 ns
• Modulation Frequency: 1–3000 kHz (300W) / 1–4000 kHz (500W)
• Laser Fiber Length: 5 m (customizable)
• Scanning Width: 0–100 mm (300W) / 0–190 mm (500W)
• Input Voltage: AC110–220V ±10%
• Input Power: 2 kW / 3 kW
• Cooling Method: Air cooling
• Ambient Temperature: −5°C to 37°C
• Ambient Humidity: 40%–80%
• Machine Size: 580 × 430 × 630 mm
• Packaging Size: 700 × 500 × 770 mm

Applications

The 300W and 500W air cooled laser cleaner is suitable for many industrial fields, including:

• Shipbuilding and maintenance

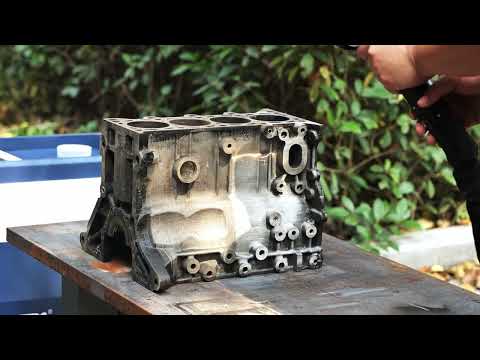

• Automobile repair
• Rubber molds
• High-end machinery and equipment
• Rail transportation
• Industrial maintenance

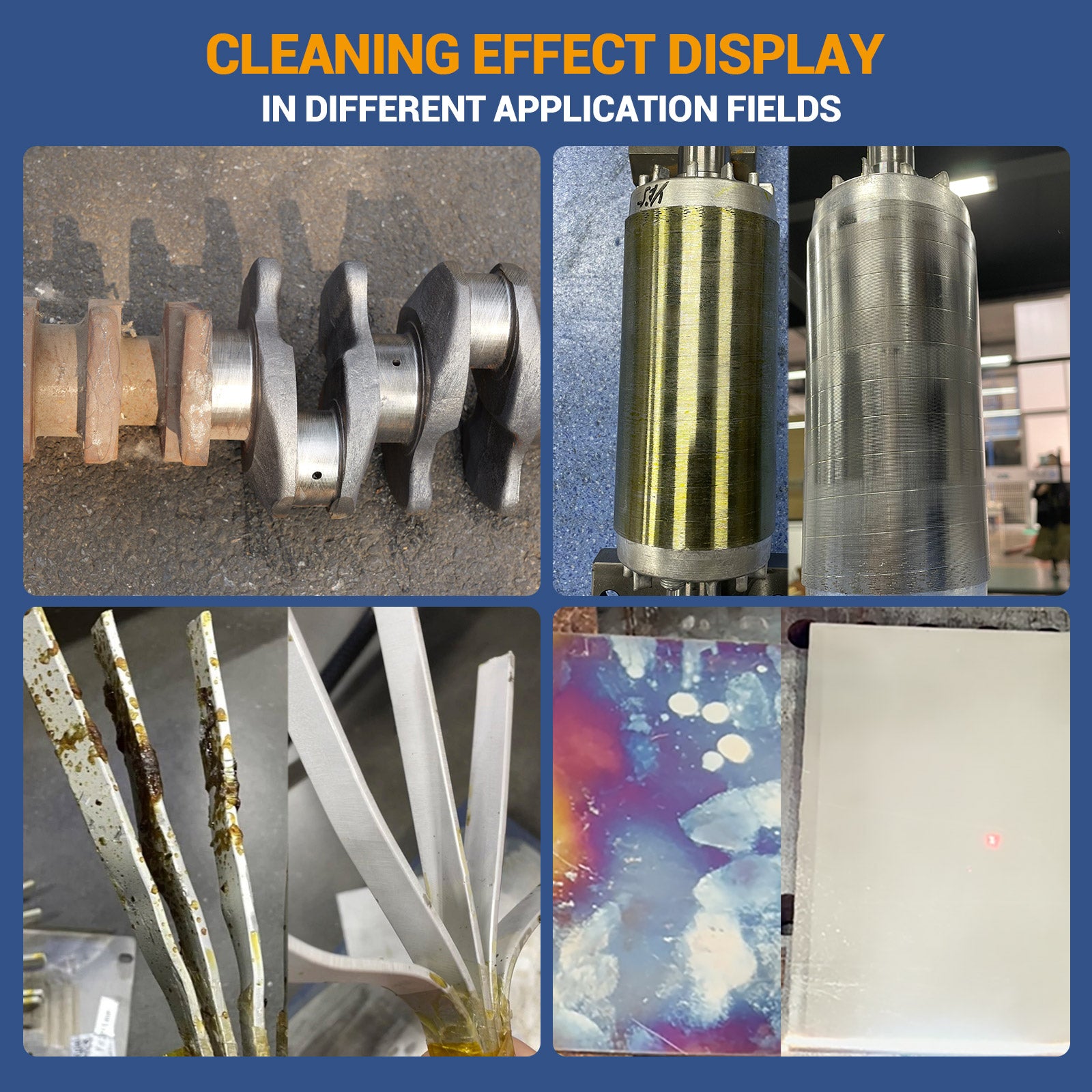

It can effectively remove rust, paint, oil stains, coatings, and oxide layers without damaging the substrate.

For wood cleaning applications, special models such as the APC-300 Pulse Laser Cleaning Machine are available.

Warranty and After-Sales Support

• Warranty: 1-year warranty for the whole laser cleaning machine; 2-year warranty for the laser source (consumables not included).
• Technical Support: Our pre-sales technical team provides professional guidance to help you choose the most suitable machine. After purchase, our certified after-sales team offers remote support and lifetime online assistance.
• Local Service: After-sales service centers are available in New York and California for local support in the United States.
• Return Policy: 30-day return policy. We take full responsibility for every machine we sell.
• Consumables: Protective lenses are available for AGC-300 and AGC-500 models.
