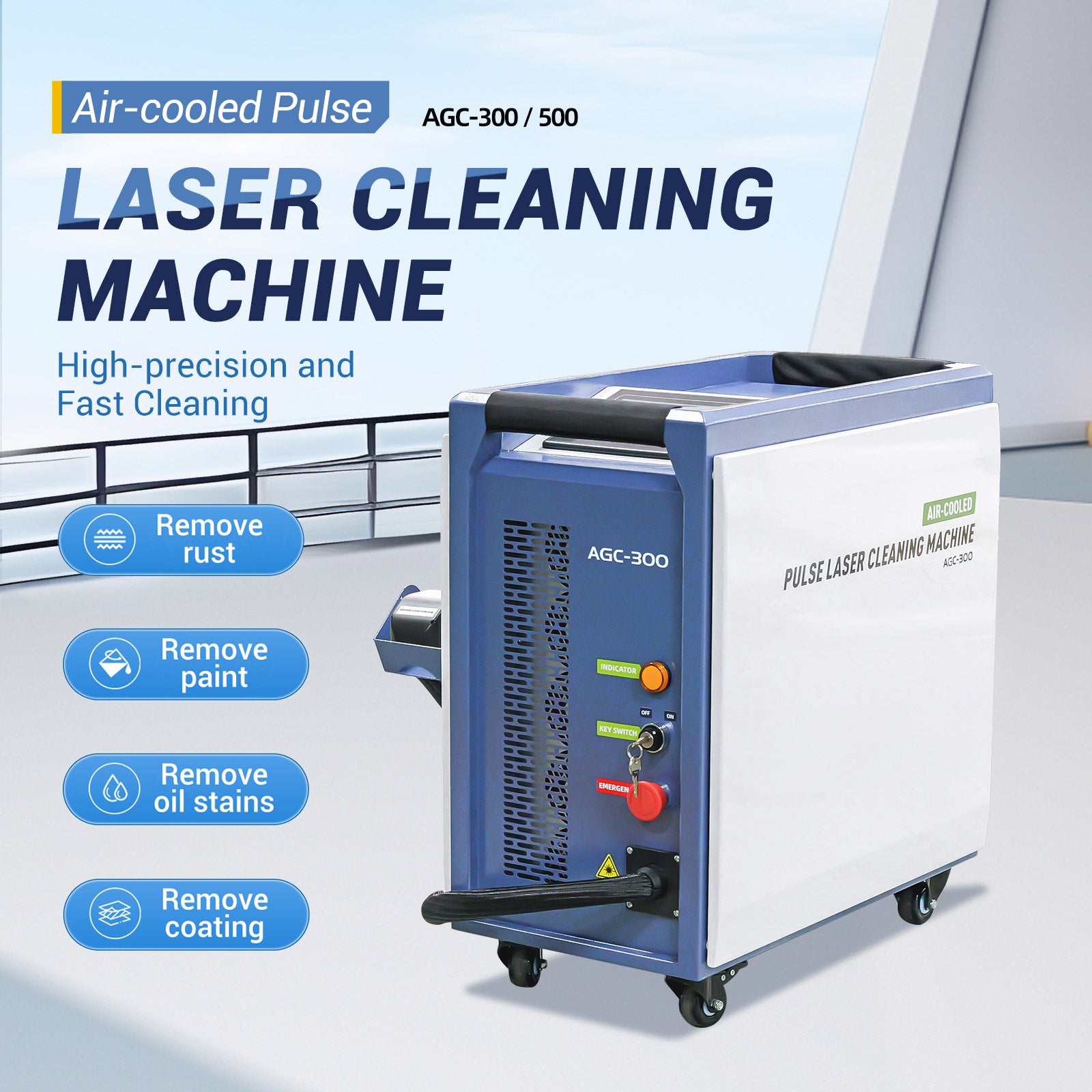

AGC 300W 500W Air-cooled Pulse Laser Cleaning Machine Rust Paint Oil Stains Removal

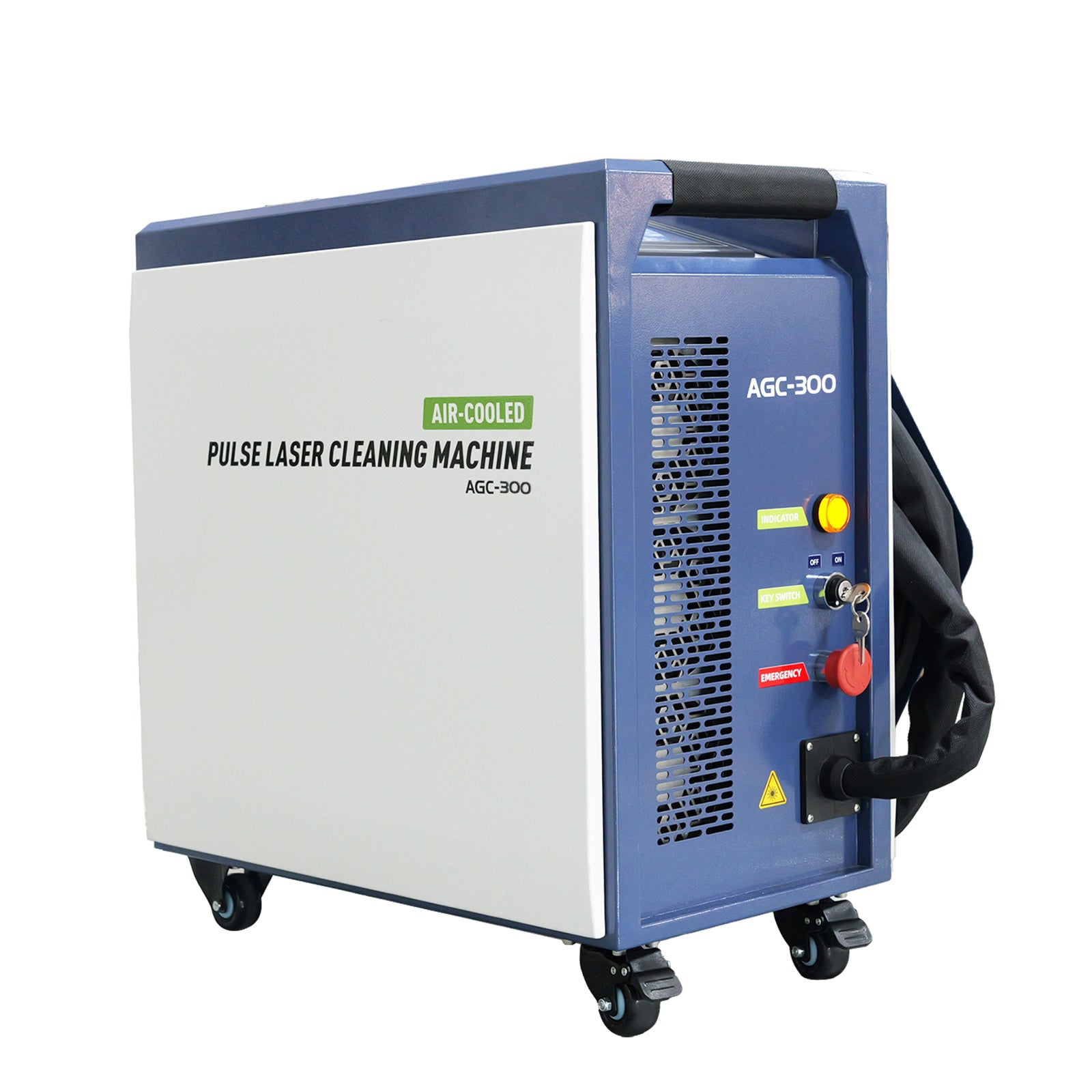

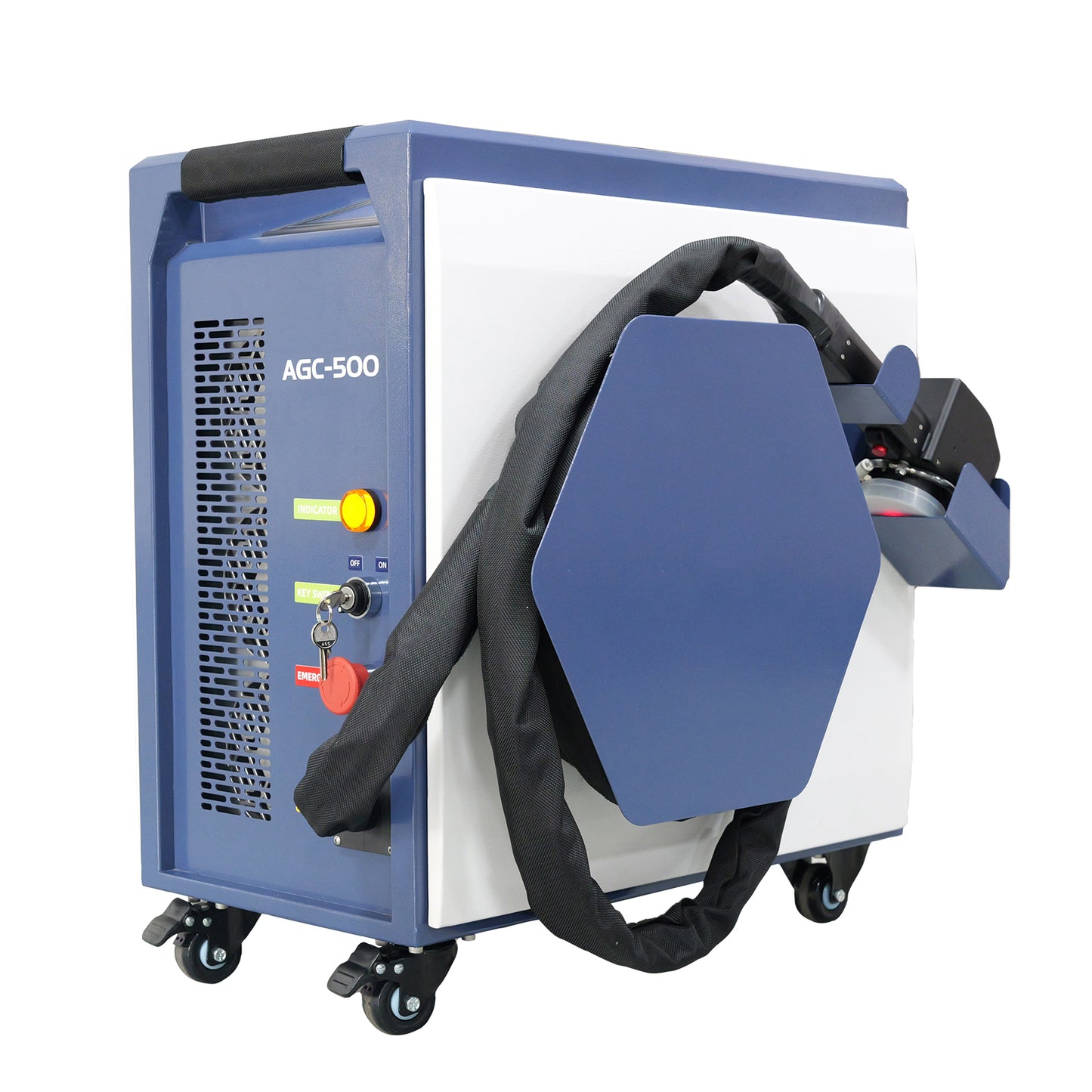

AGC-300 AGC-500 Air-cooled Laser Cleaner is a compact, portable pulsed laser cleaning system designed for efficient rust, paint, oil, and oxide removal. With an integrated air-cooled structure, it offers low maintenance, easy operation, and stable performance for industrial and on-site applications.

AGC Laser Cleaning Machine Features and Advantages

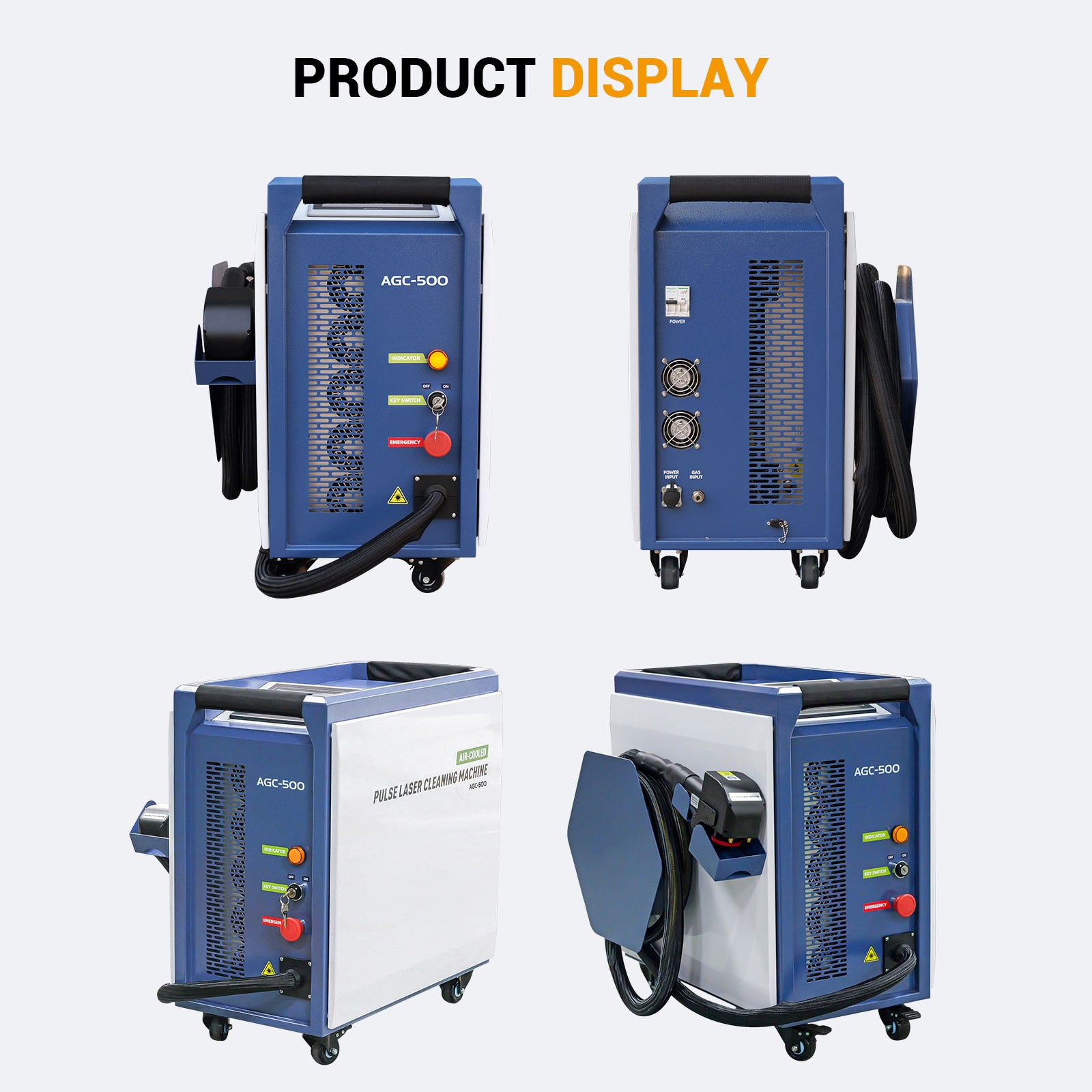

• Compact & Lightweight Design: Integrated air-cooled structure with a volume of only 0.15 m³ and total weight of 68 kg, saving energy, labor, and maintenance costs.
• Non-Contact & Eco-Friendly Cleaning: No damage to the substrate. No chemical reagents or consumables required, and no secondary dust pollution compared with sandblasting.

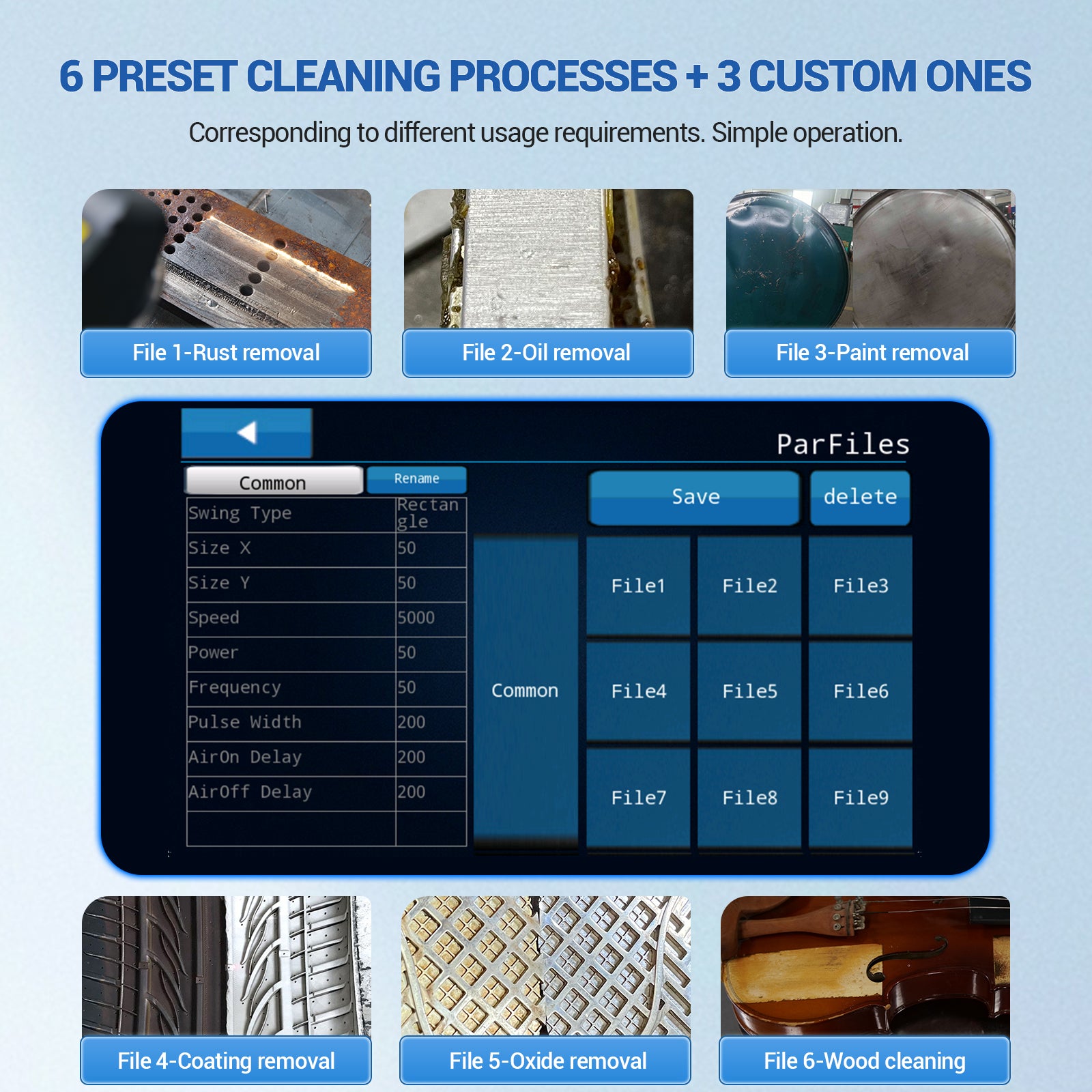

• Easy Operation with Preset Modes: 6 preset cleaning processes for rust, oil, paint, coating, oxide, and wood cleaning, plus 3 customizable modes to meet different application needs.

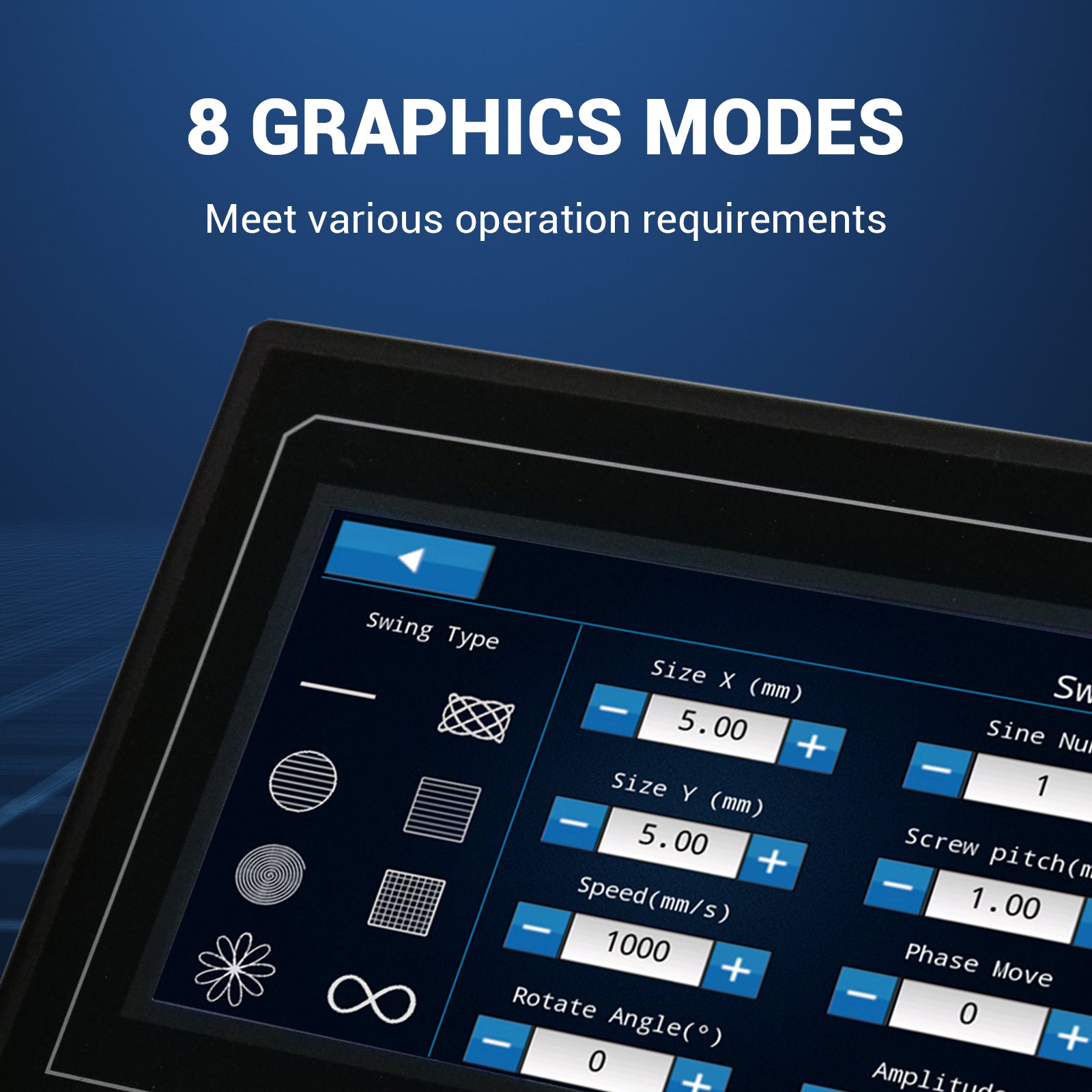

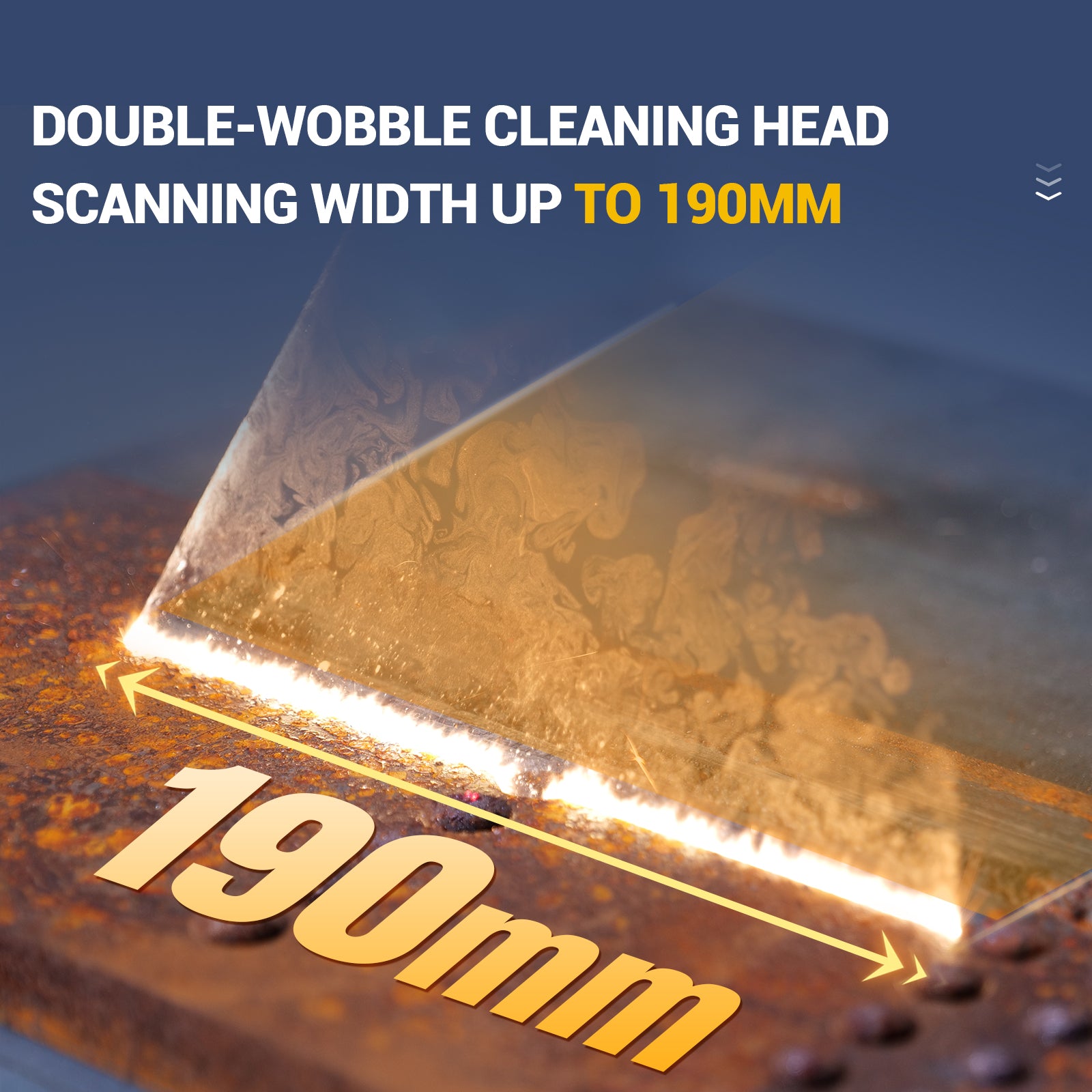

• High Cleaning Efficiency: Equipped with a double-wobble cleaning head, scanning width up to 190 mm, and 8 light modes for flexible operation.
• Strong Output Performance: High power density ensures excellent efficiency for laser rust removal and laser paint coating removal.
• Wide Voltage Compatibility: AC110–220V wide voltage design supports different power supply standards worldwide.
• Reliable Continuous Operation: Tested to run continuously at 40°C for 8 hours without power attenuation.

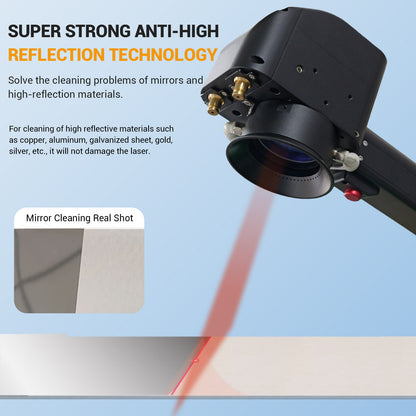

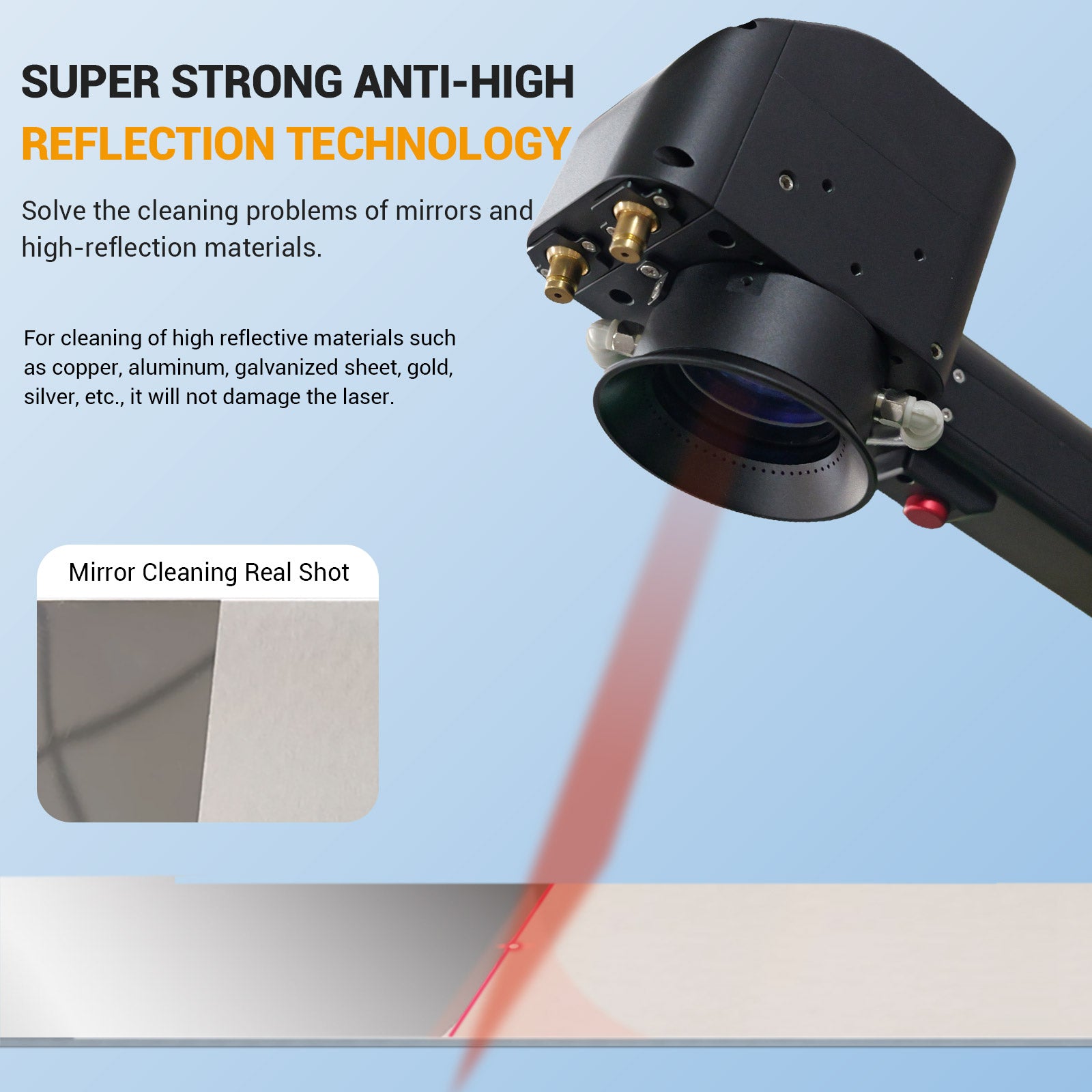

• Advanced Anti-High Reflection Protection: Safely cleans highly reflective materials such as copper, aluminum, gold, silver, and galvanized sheets without damaging the laser source.

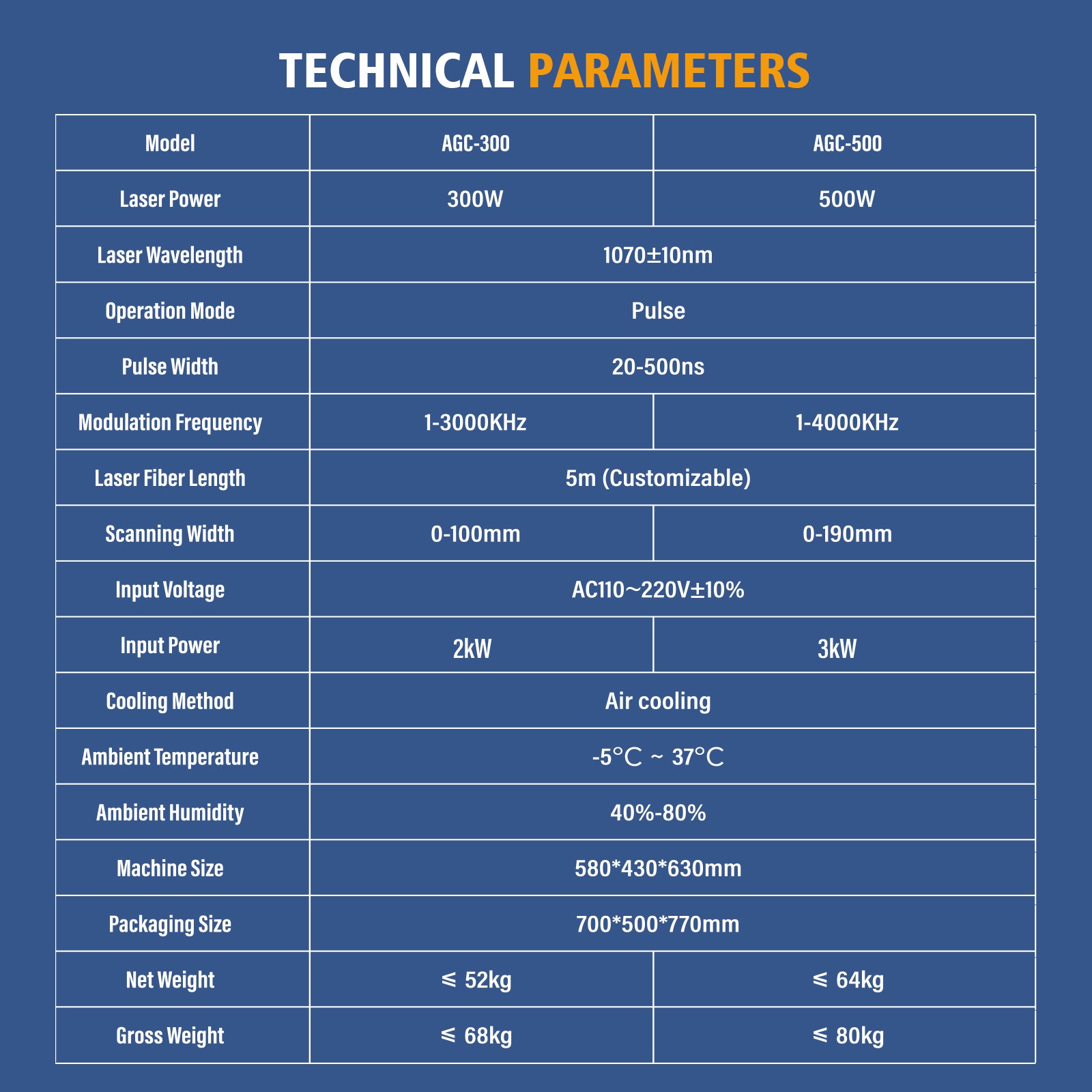

Technical Specifications

• Model: AGC-300 / AGC-500
• Laser Power: 300W / 500W
• Laser Wavelength: 1070 ±10 nm
• Operation Mode: Pulse
• Pulse Width: 20–500 ns
• Modulation Frequency: 1–3000 kHz (300W) / 1–4000 kHz (500W)
• Laser Fiber Length: 5 m (customizable)
• Scanning Width: 0–100 mm (300W) / 0–190 mm (500W)
• Input Voltage: AC110–220V ±10%
• Input Power: 2 kW / 5 kW
• Cooling Method: Air cooling
• Ambient Temperature / Humidity: −5°C to 37°C / 40%–80%

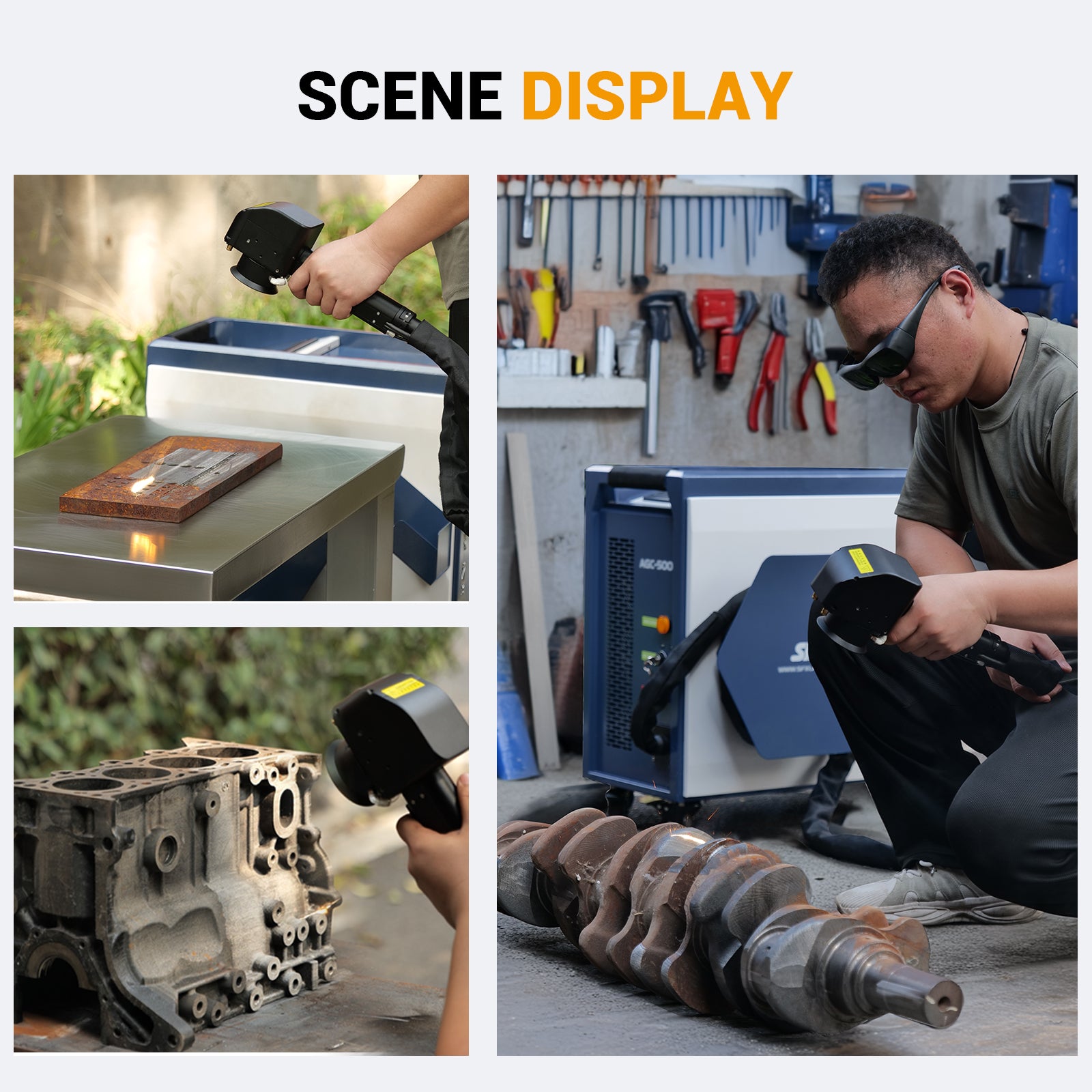

Applications

• Shipbuilding and maintenance
• Automobile repair
• Rubber molds
• High-end machinery and equipment
• Rail transportation
• Industrial maintenance

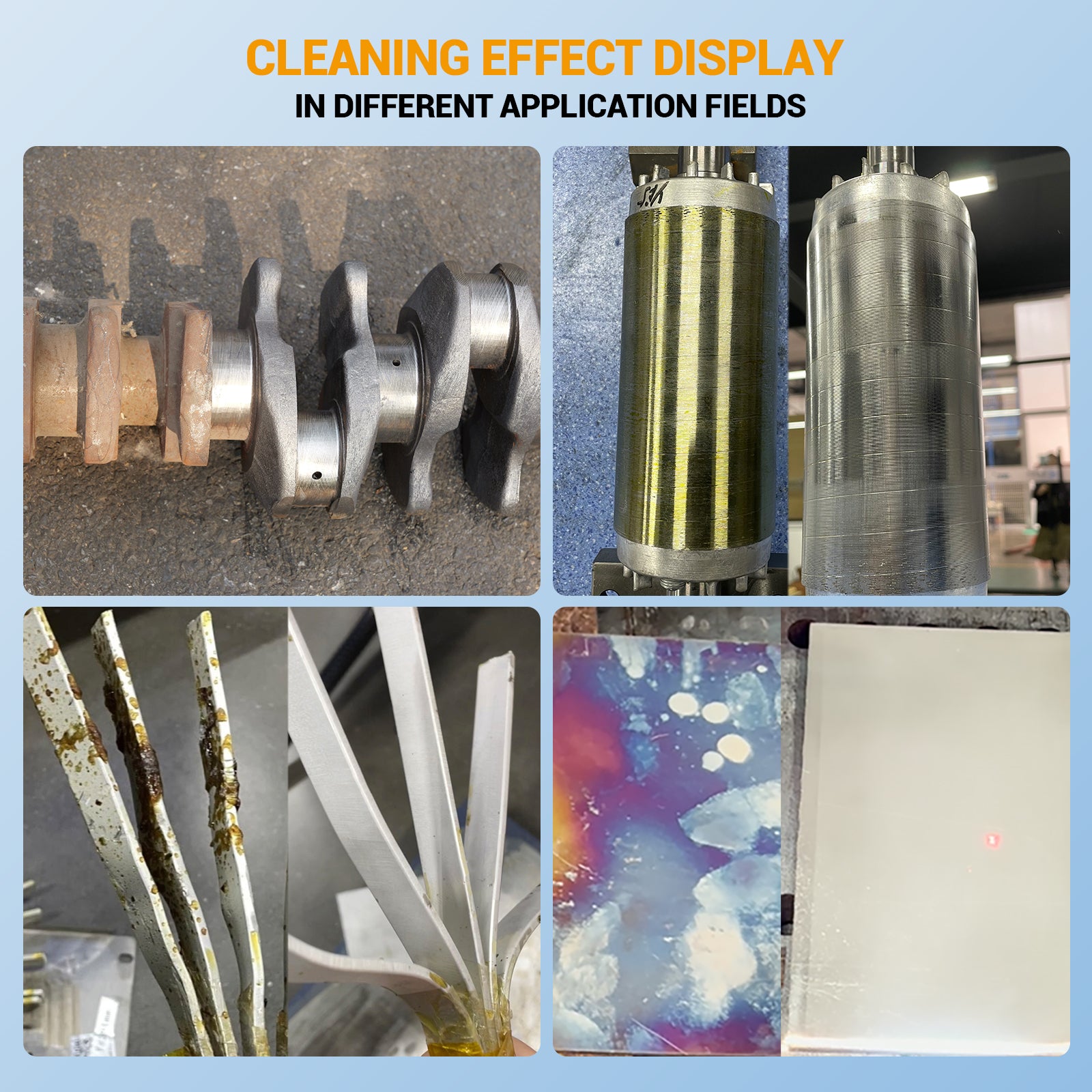

It can effectively remove rust, paint, oil stains, coatings, and oxide layers without damaging the base material.

For wood cleaning applications, please refer to our APC-300 Pulse Laser Cleaning Machine.

Warranty and After-Sales Support

• Warranty: 1-year warranty for the whole machine; 2-year warranty for the laser source (consumables not included).
• Technical Support: Professional pre-sales guidance to help select the right machine. Five-star rated after-sales team with lifetime online technical support. NY and CA service centers for local USA support.
• Shipping & Delivery: US stock available. Free shipping for US customers via DHL / UPS / FedEx. Delivery time: 5–7 days after the machine is ready. No import duties for US customers.
• Return Policy: 30-day return policy. Full responsibility for every machine sold.
