1500W Air-cooled Continuous Laser Cleaning Machine Portable Handheld Laser Rust Remover

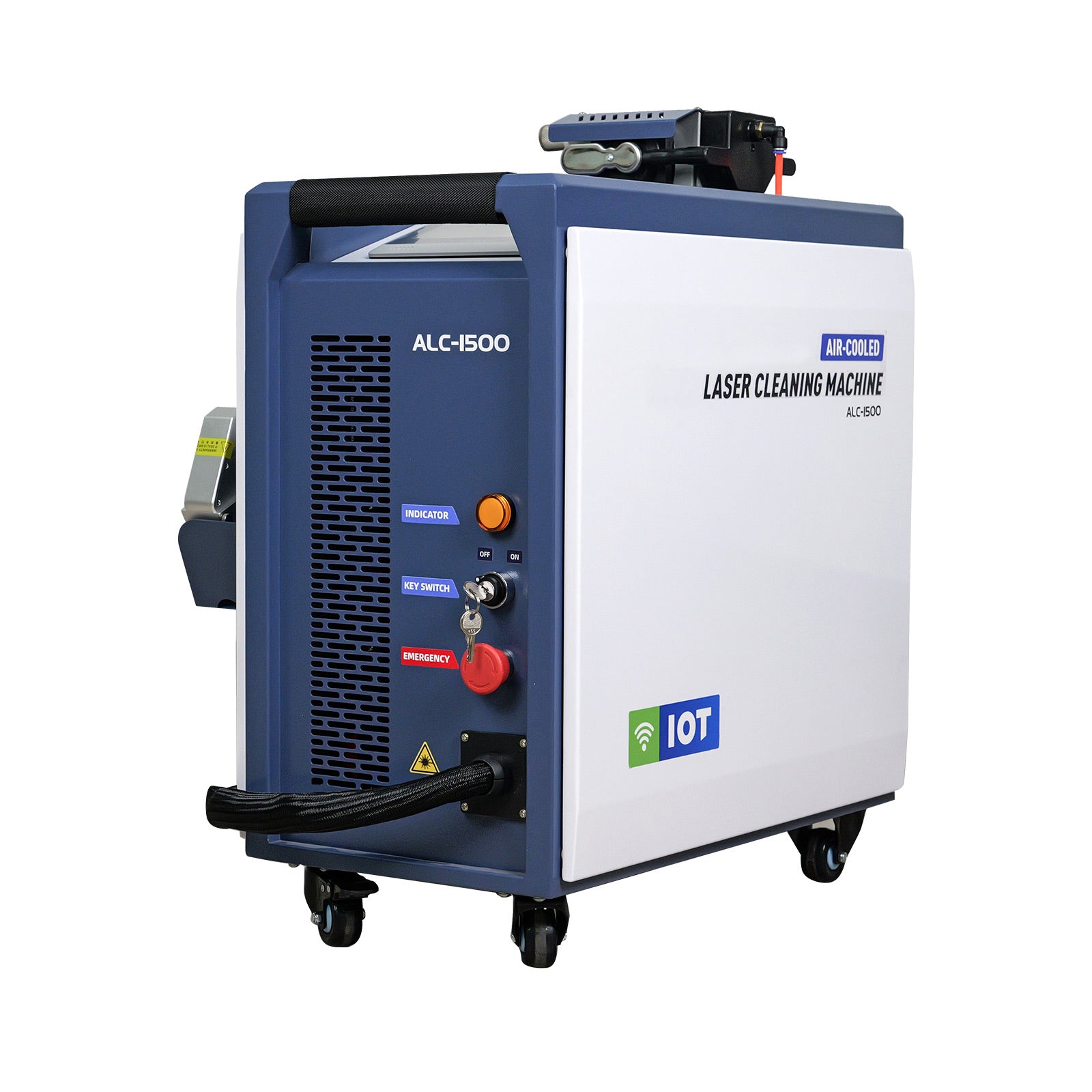

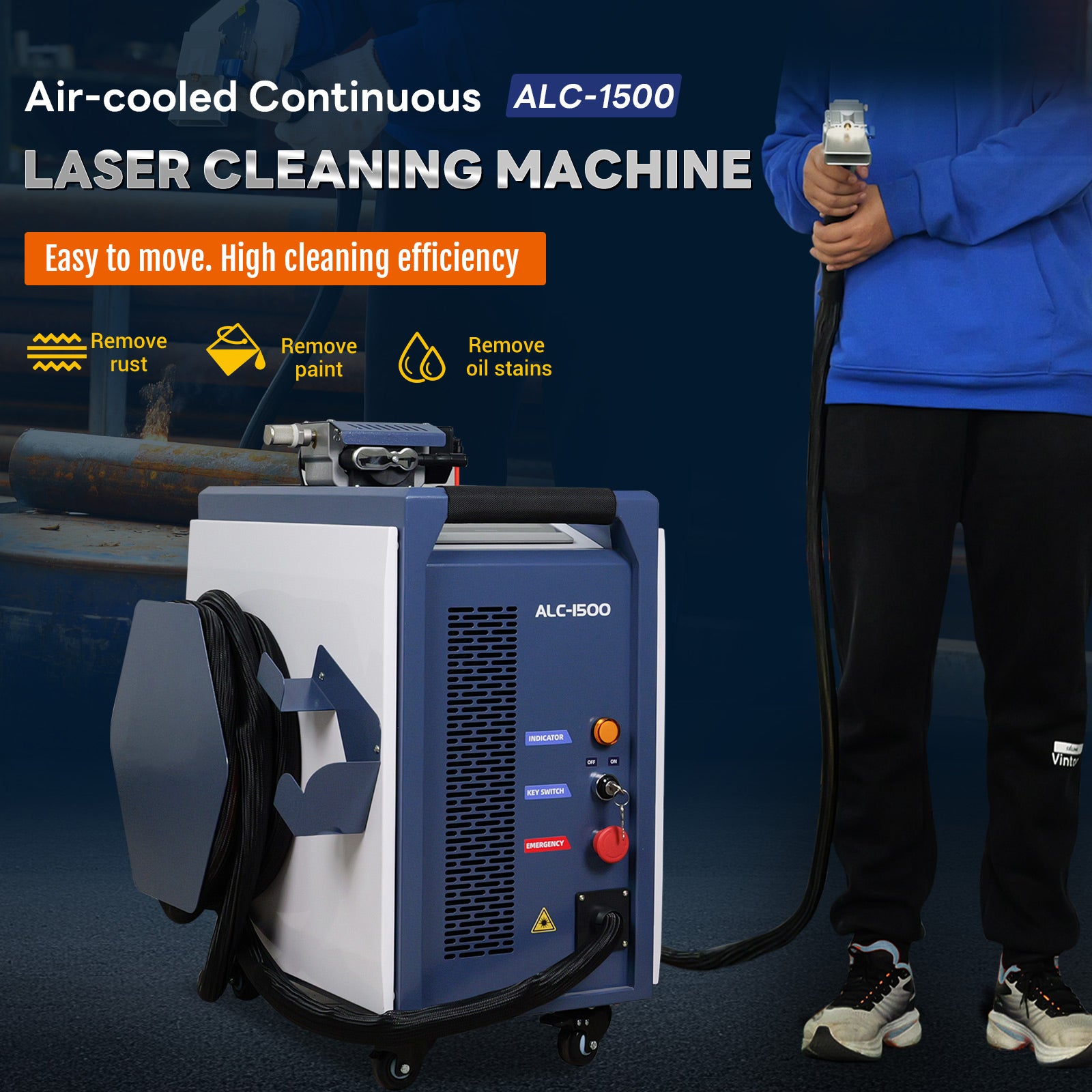

ALC-1500 Continuous Handheld Laser Cleaning Machine is a powerful, portable laser cleaning system designed for efficient rust, paint, oil, and coating removal.
With an integrated air-cooled structure and lightweight design, it offers easy operation, stable performance, and minimal maintenance, making it ideal for various industrial applications.

Key Features and Advantages

• No-contact Cleaning
  No damage to the substrate, no chemical reagents, no consumables, no secondary pollution, and no need for water cleaning.

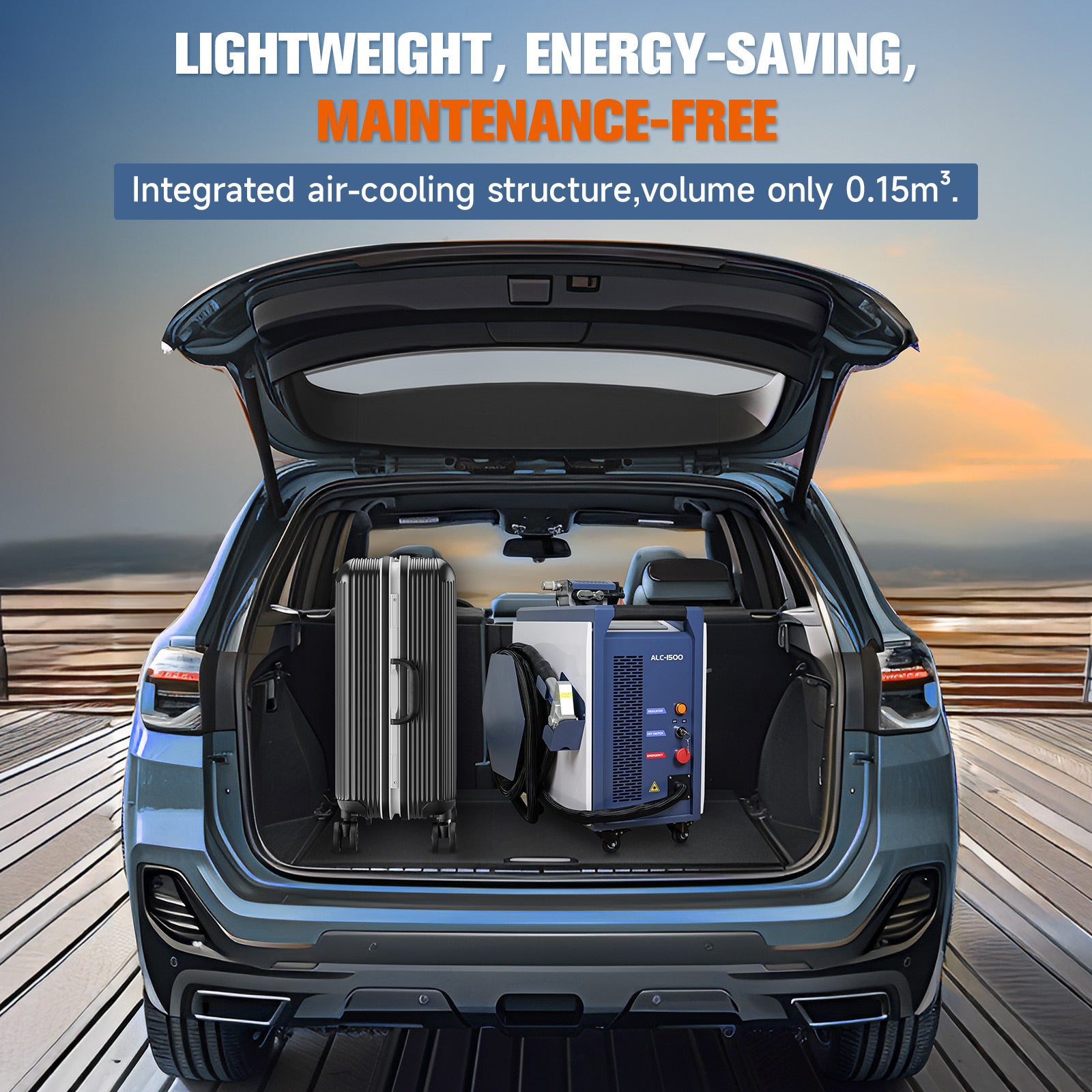

• Lightweight and Energy-saving

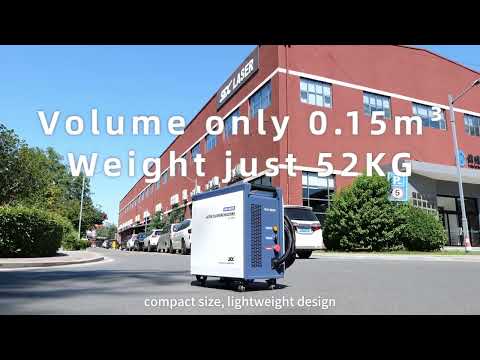

  Weighs only 51kg with a compact volume of 0.15m³, making it easy to move and operate. The integrated air-cooling structure ensures it is maintenance-free.
• 250mm Cleaning Width
  Doubles the cleaning efficiency compared to ordinary 1500W models, increasing both the cleaning width and efficiency by approximately 1.5 times.

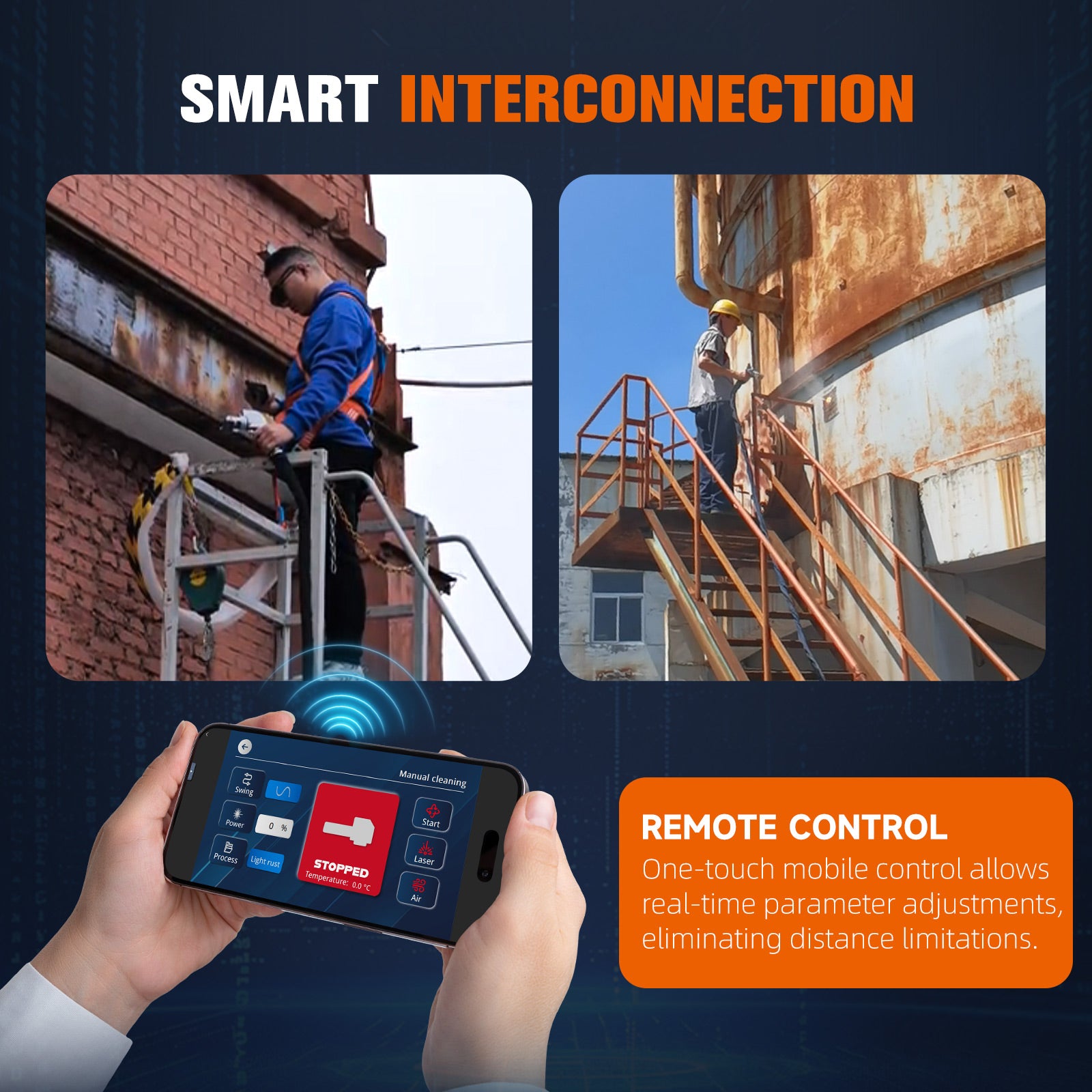

• Smart Interconnection for Remote Control
  One-touch mobile control enables real-time parameter adjustments, with no distance limitations.
• Smart Interconnection for Online Diagnosis
  Remote support from our technical team allows instant resolution of technical issues, ensuring minimal downtime.
• Excellent Beam Quality
  Strong focusing ability enhances cleaning results, offering better efficiency and precision.
• Dust-proof Cleaning Head
  Features a built-in protective cover for enhanced dustproof performance, increasing the durability and effectiveness of the cleaning process.
• Reliable Performance
  Operates continuously 24/7 without lens burning. It can function in environments as cold as 0°C and withstand temperatures up to 40°C without power attenuation even after 8 hours of use.
• Reliability Testing
  Underwent various reliability tests, including vibration, fatigue, and aging tests, ensuring quality and durability before delivery.

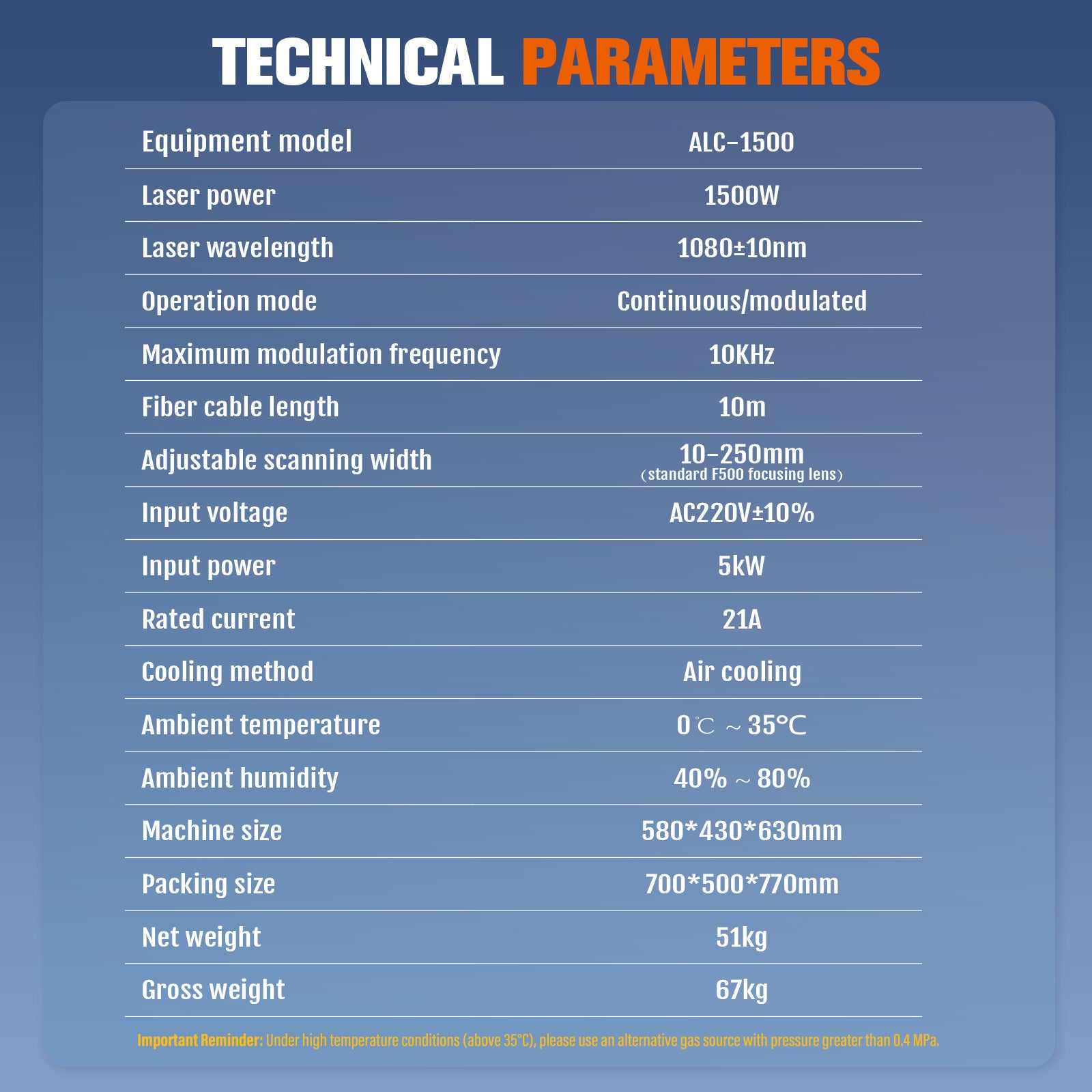

Technical Specifications

• Model and Laser Power: ALC-1500 1500W
• Laser Wavelength: 1080±10nm
• Operation Mode: Continuous/modulated
• Maximum Modulation Frequency: 10KHz
• Fiber Cable Length: 10m
• Adjustable Scanning Width: 10–250mm (standard F500 focusing lens)
• Input Voltage: AC220V±10%
• Input Power: 5kW
• Rated Current: 21A
• Cooling Method: Air cooling
• Ambient Temperature: 0℃ ~ 35℃
• Ambient Humidity: 40% ~ 80%
• Machine Size: 580 × 430 × 630mm
• Packing Size: 700 × 500 × 770mm
• Net/Gross Weight: 51kg / 67kg

Important Reminder

High-Temperature Conditions: Under high temperature conditions (above 35°C), please use an alternative gas source with pressure greater than 0.4 MPa.

Applications and Warranty

ALC-1500 Handheld Laser Cleaning Machine is suitable for various industries, including:

• Shipbuilding
• Automobile repairs
• Rubber molds
• High-end machinery and equipment
• Rail transportation
• Maintenance

We offer:

• 1-year warranty for the whole machine
• 2-year warranty for the laser source
• Consumables not included

Our pre-sales technical team provides expert advice to help you select the right machine, while our certified after-sales team offers remote support and lifetime online assistance. We also have after-sales centers in New York and California for local support.

With a global service network of over 50 service points, a professional technical team, and multilingual support, you can enjoy worry-free after-sales service.
