Clyertek 500W 6-Axis Robotic Laser Cleaning Machine Rust Paint Oxide Layer Remover

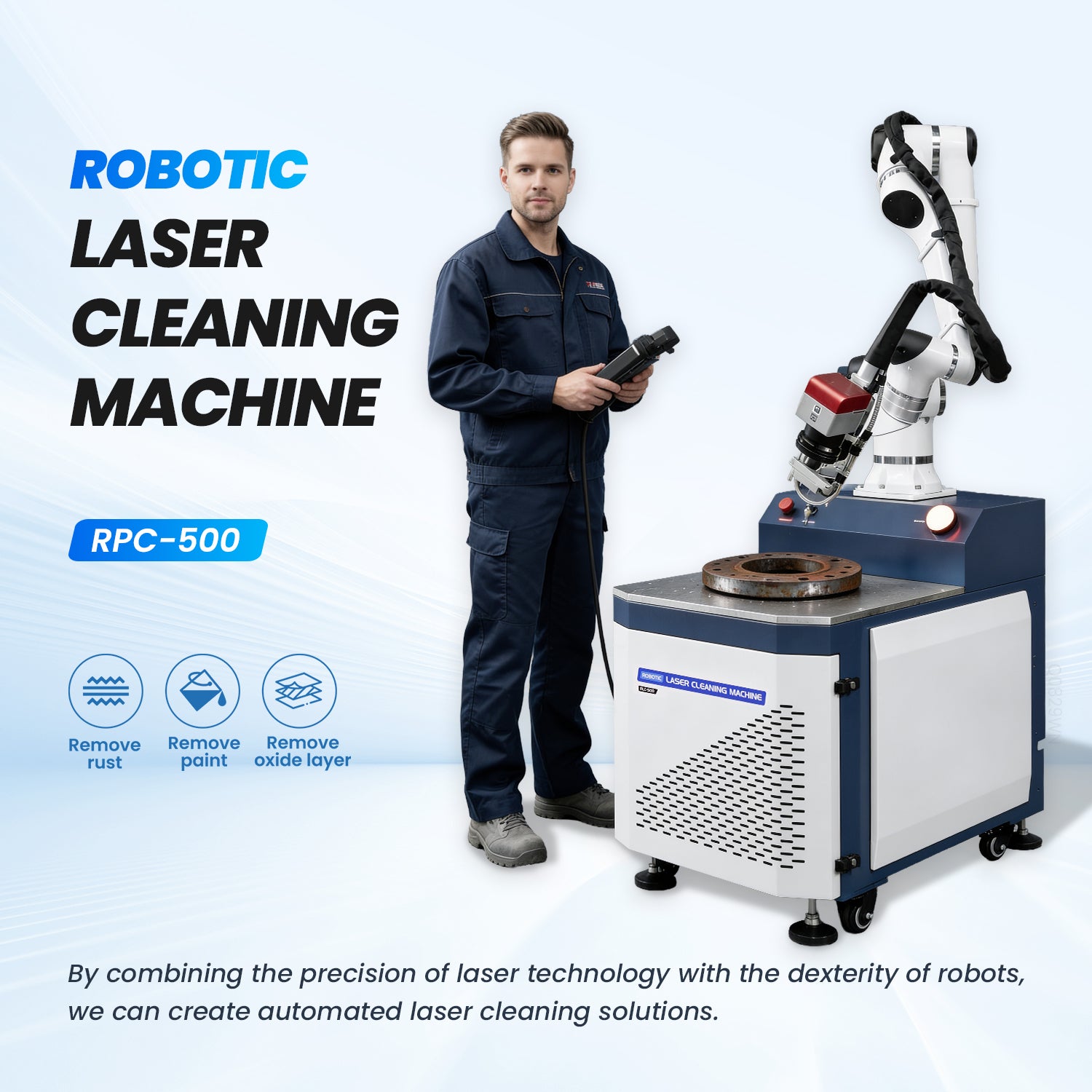

Clyertek Robotic Laser Cleaning Machine combines a six-axis robotic arm with a high-performance pulsed laser to automate surface cleaning. It is designed for efficient and precise removal of rust, paint, oxide layer, and other contaminants from complex workpieces.

Key Highlights

• 6-axis Collaborative Robotic Arm
• Low Learning Curve Teachable Drag and Drop Programming
• 8 Cleaning Graphics Dual-swing Intelligent Laser Cleaning Head

Product Features

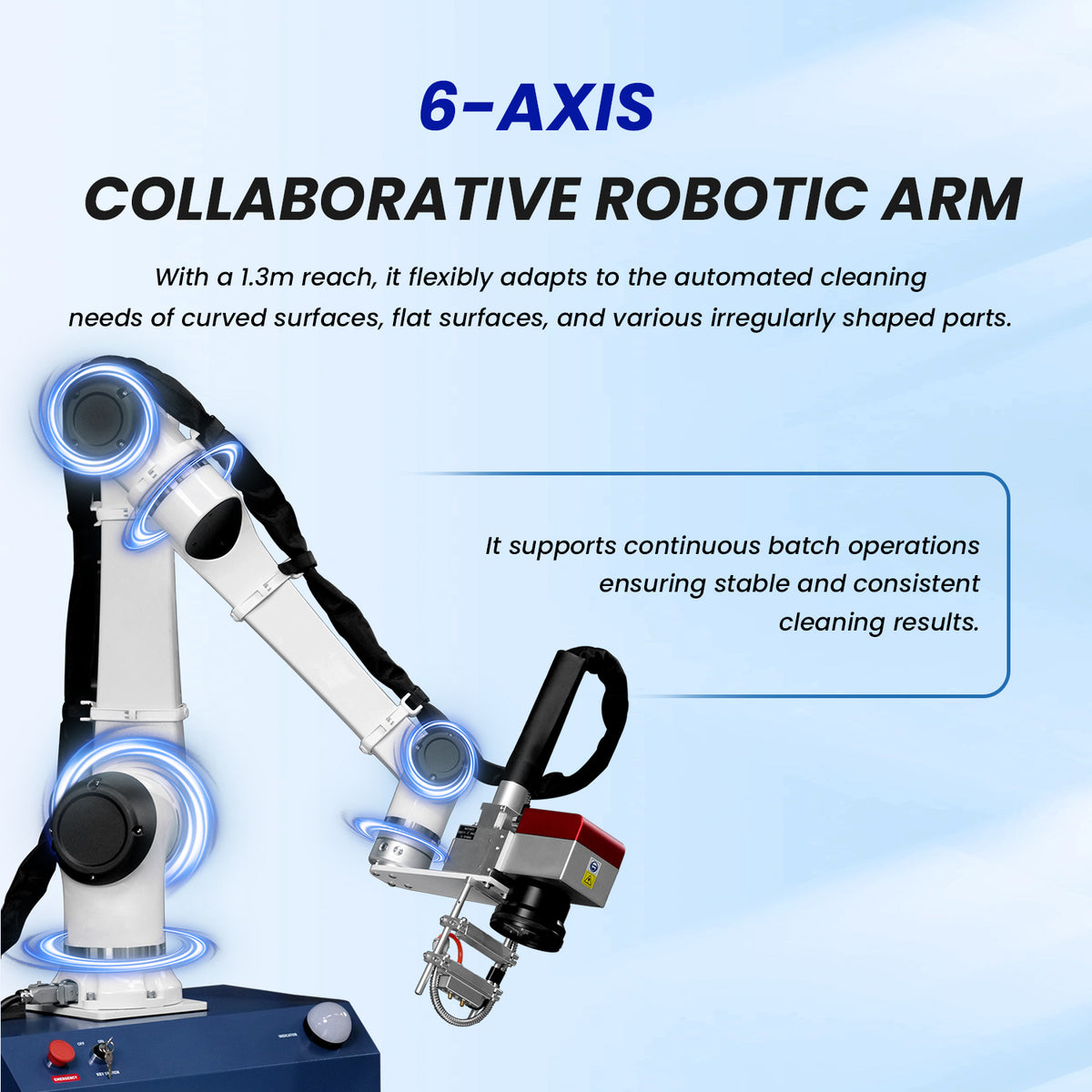

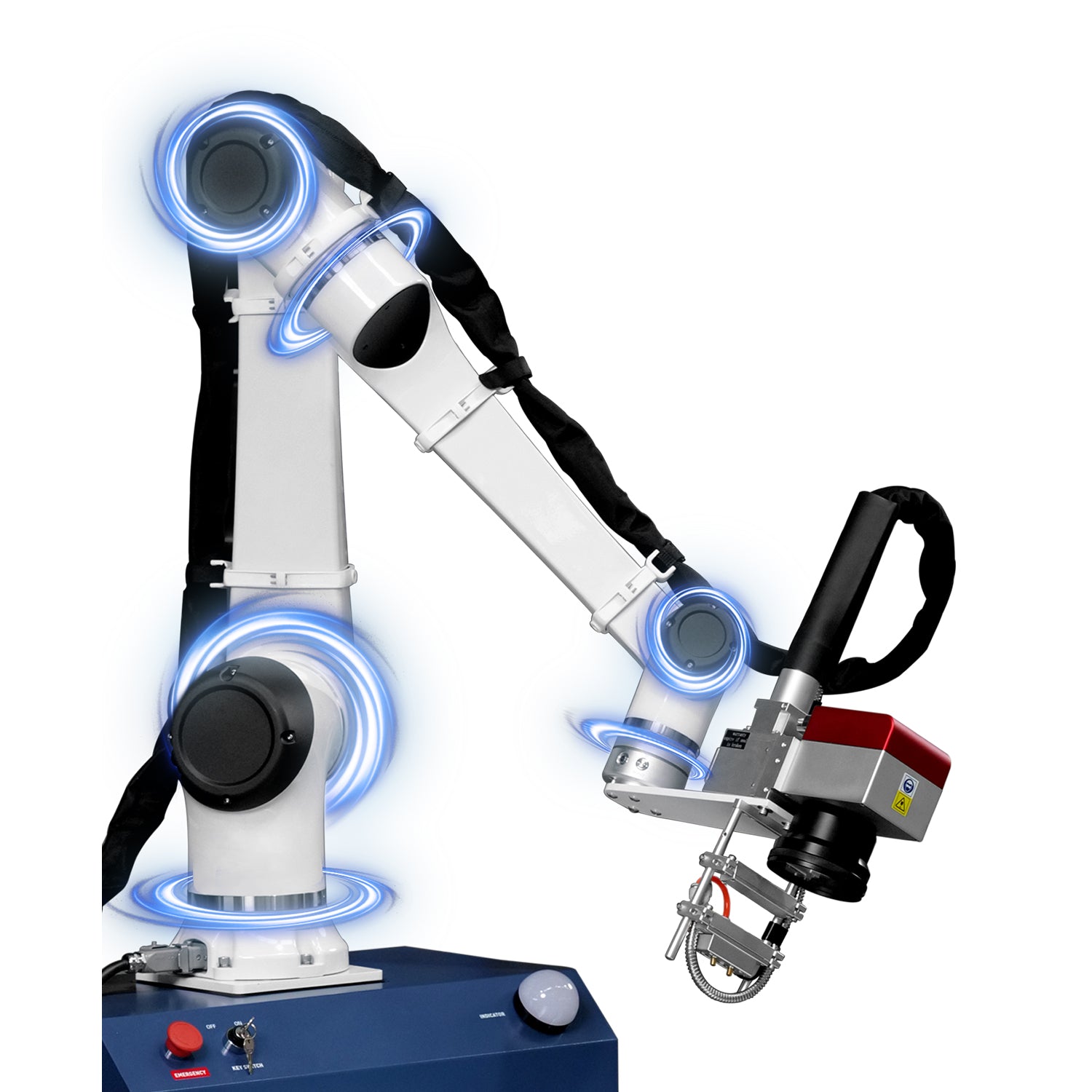

• Six-Axis Robotic Arm
  The six-axis collaborative robotic arm provides a 1.3 m reach and flexibly adapts to curved surfaces, flat surfaces, and various irregularly shaped parts. It supports continuous batch operations for stable and consistent cleaning results.

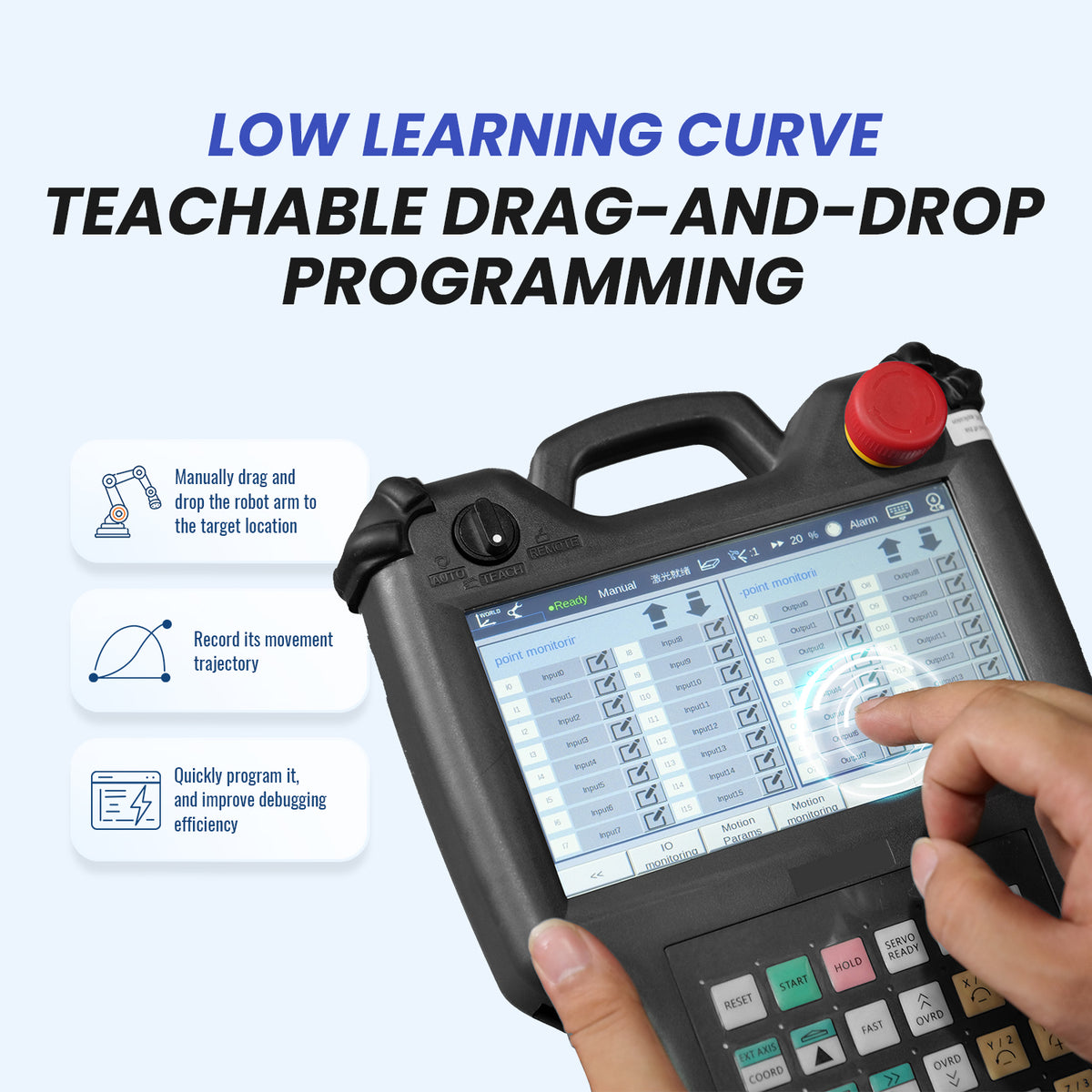

• Easy Drag-and-Drop Programming
  The teachable drag-and-drop programming system features a low learning curve and simple operation. Operators can manually guide the robotic arm to target positions and record its movement trajectory, allowing fast programming and efficient debugging.

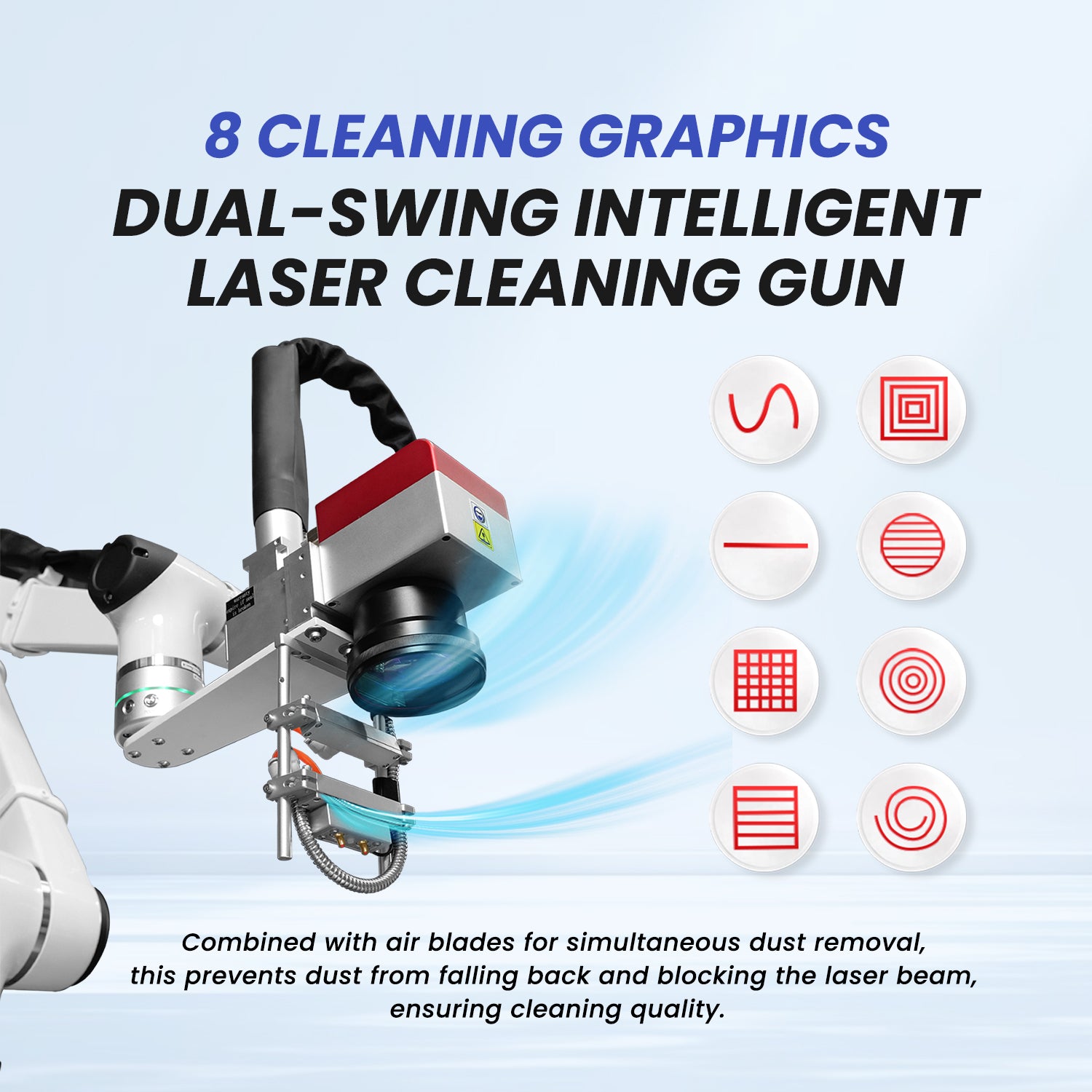

• Intelligent Dual-Swing Cleaning
  The laser cleaning gun provides 8 cleaning graphics and a dual-swing cleaning mode for flexible cleaning patterns. Integrated air blades remove dust during cleaning, helping prevent contaminants from falling back onto the workpiece or blocking the laser beam.

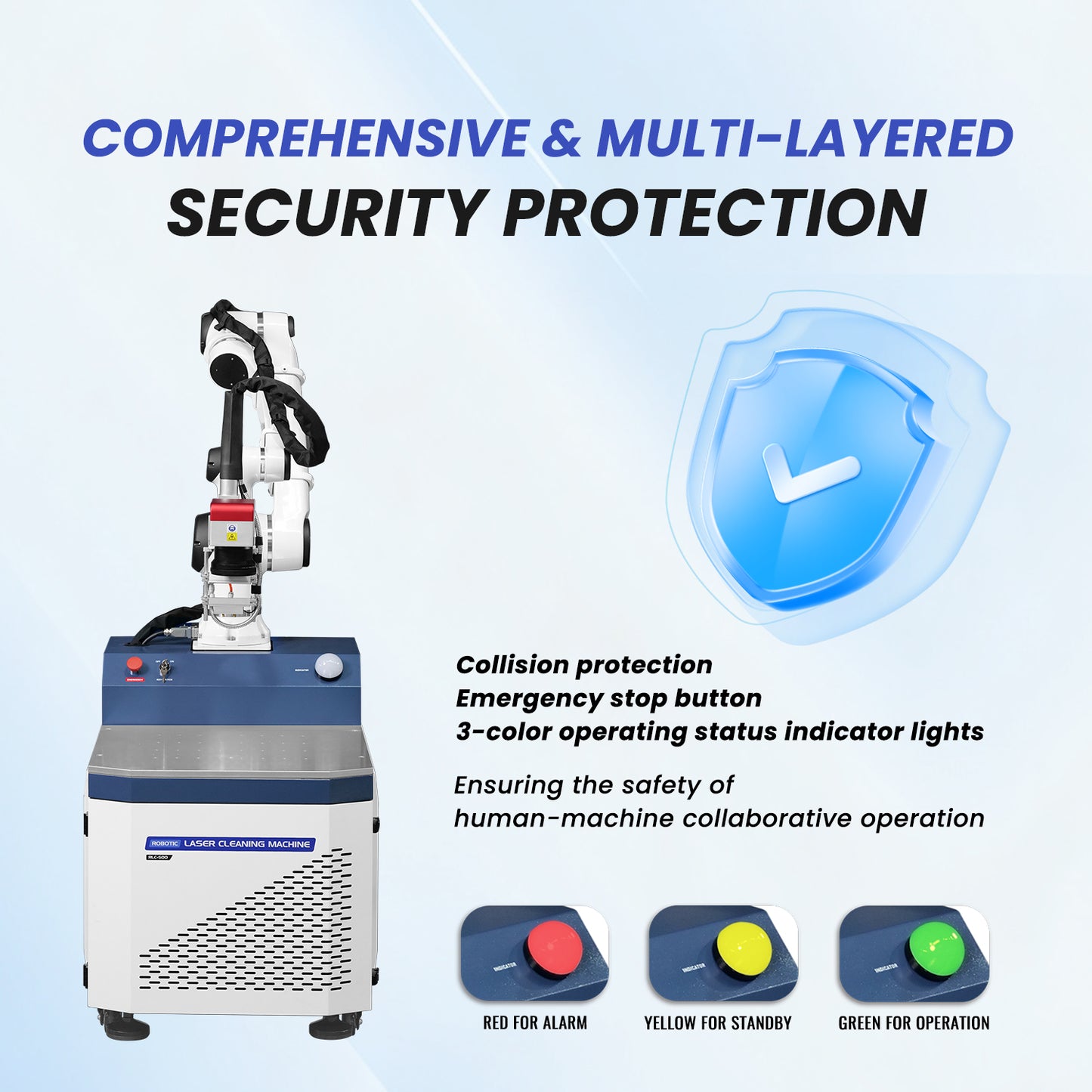

• Multi-Layer Safety Protection
  The system features collision protection, an emergency stop button, and three-color operating status indicators. These safety functions help ensure reliable and safer human-machine collaborative operation.

Applications

• Rust removal from heavy industrial equipment castings
• Paint and rust removal from rail transit components
• Coating removal from irregularly shaped hardware components
• Cleaning of residual oil stains from rubber molds and injection molds, etc.
• Please note: this machine is not suitable for cleaning highly reactive materials, such as copper and aluminum.

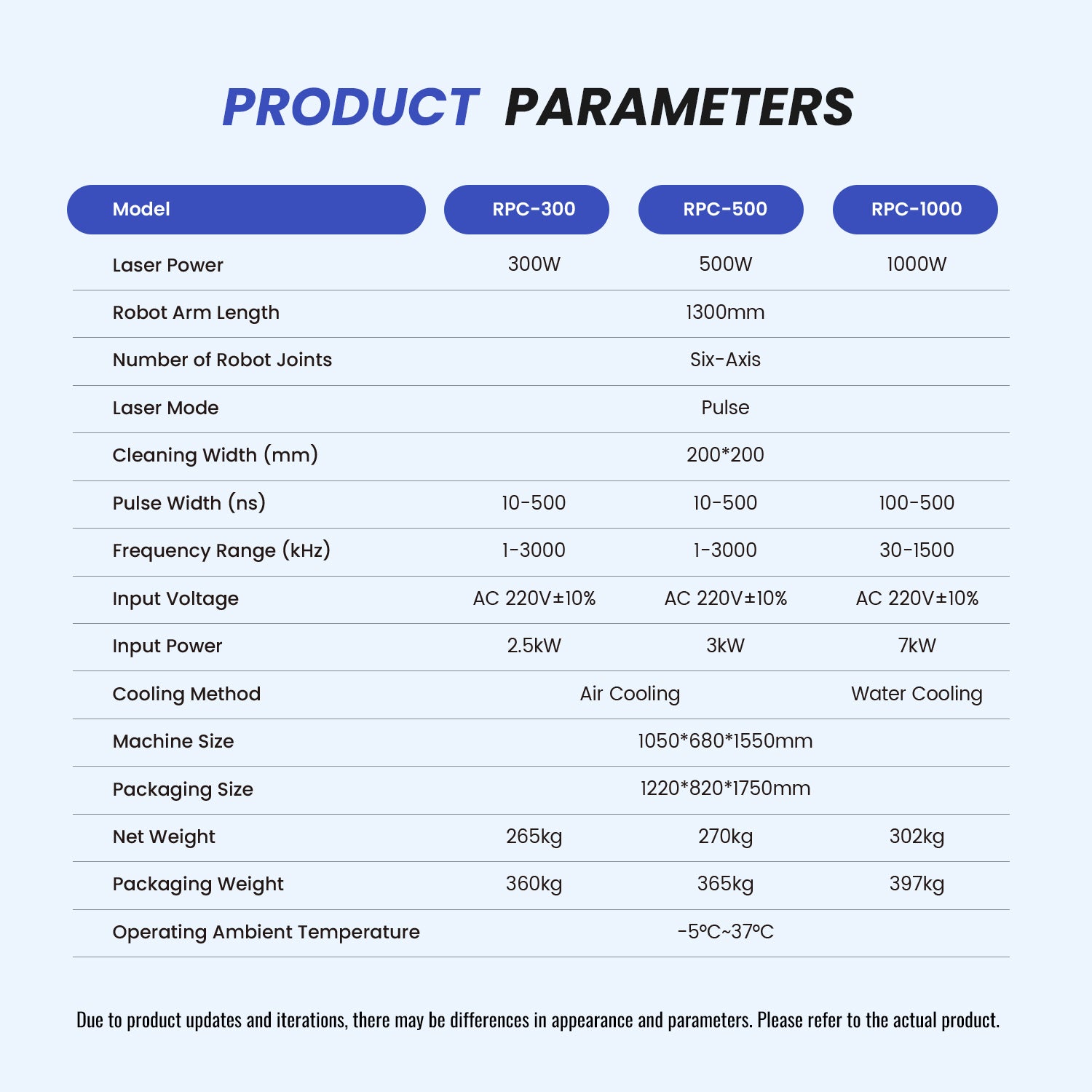

Product Parameters

• Model: RPC-300 RPC-500 RPC-1000
• Laser Power: 300W 500W 1000W
• Robot Arm Length: 1300mm
• Number of Robot Joints: Six-Axis
• Laser Mode: Pulse
• Cleaning Width (mm): 200*200
• Pulse Width (ns): 10-500; 10-500; 100-500
• Frequency Range (kHz): 1-3000; 1-3000; 30-1500
• Input Voltage: AC 220V ± 10%
• Input Power: 2.5KW 3KW 7KW
• Cooling Method: Air Cooling; Water Cooling
• Machine Size: 1050*680*1550mm
• Packaging Size: 1220*820*1750mm
• Net Weight: 265kg; 270kg; 302kg
• Packaging Weight: 360kg; 365kg; 397kg
• Operating Ambient Temperature: -5°C - 37°C

Warranty and After-Sales Support

• Warranty: 1-year warranty for the whole machine; 2-year warranty for the laser source (consumables not included).
• Technical Support: Professional pre-sales guidance to help select the right machine. Five-star rated after-sales team with lifetime online technical support. NY and CA service centers for local USA support.
• Shipping & Delivery: Free shipping by sea. No import duties for US customers.
• Return Policy: 30-day return policy. Full responsibility for every machine sold.
