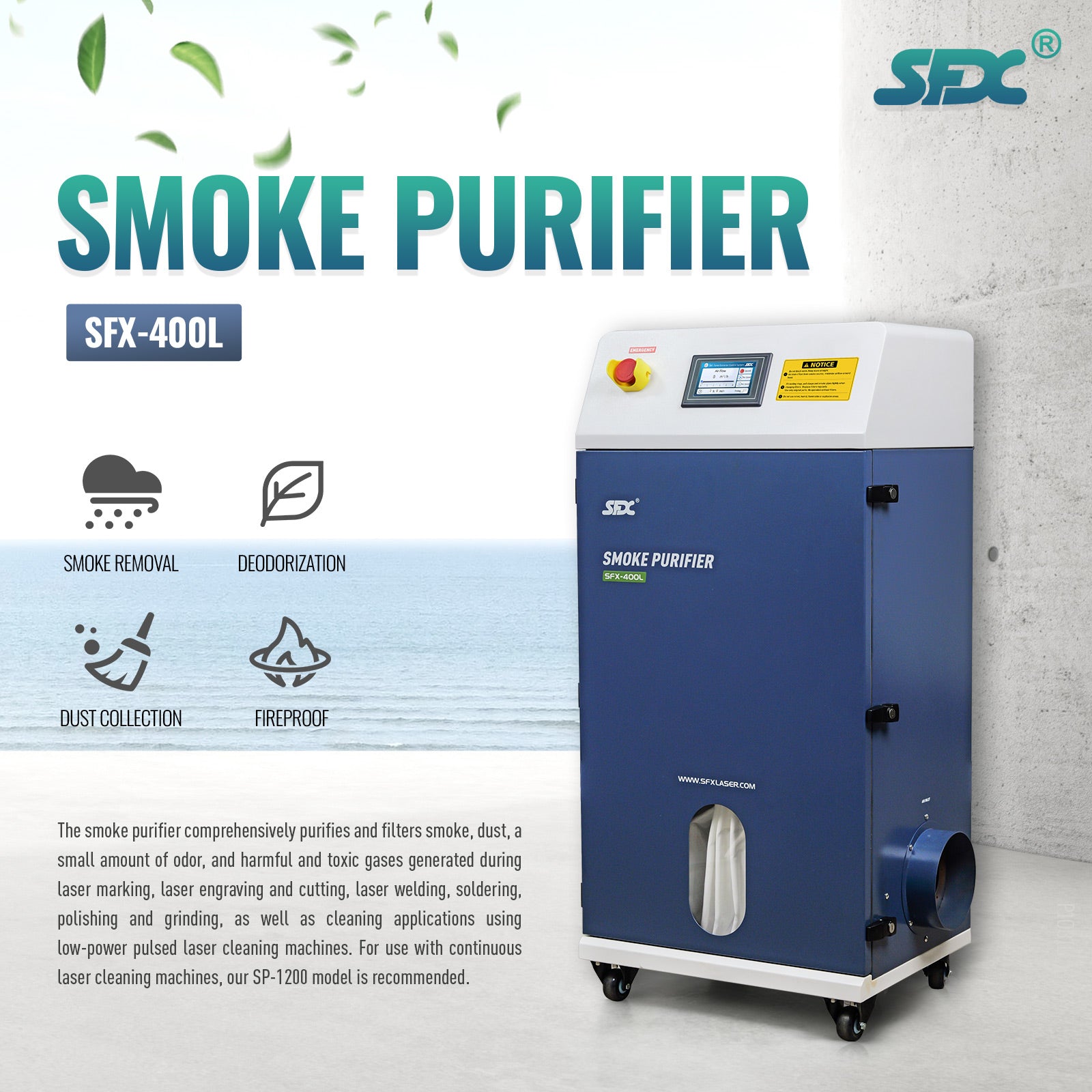

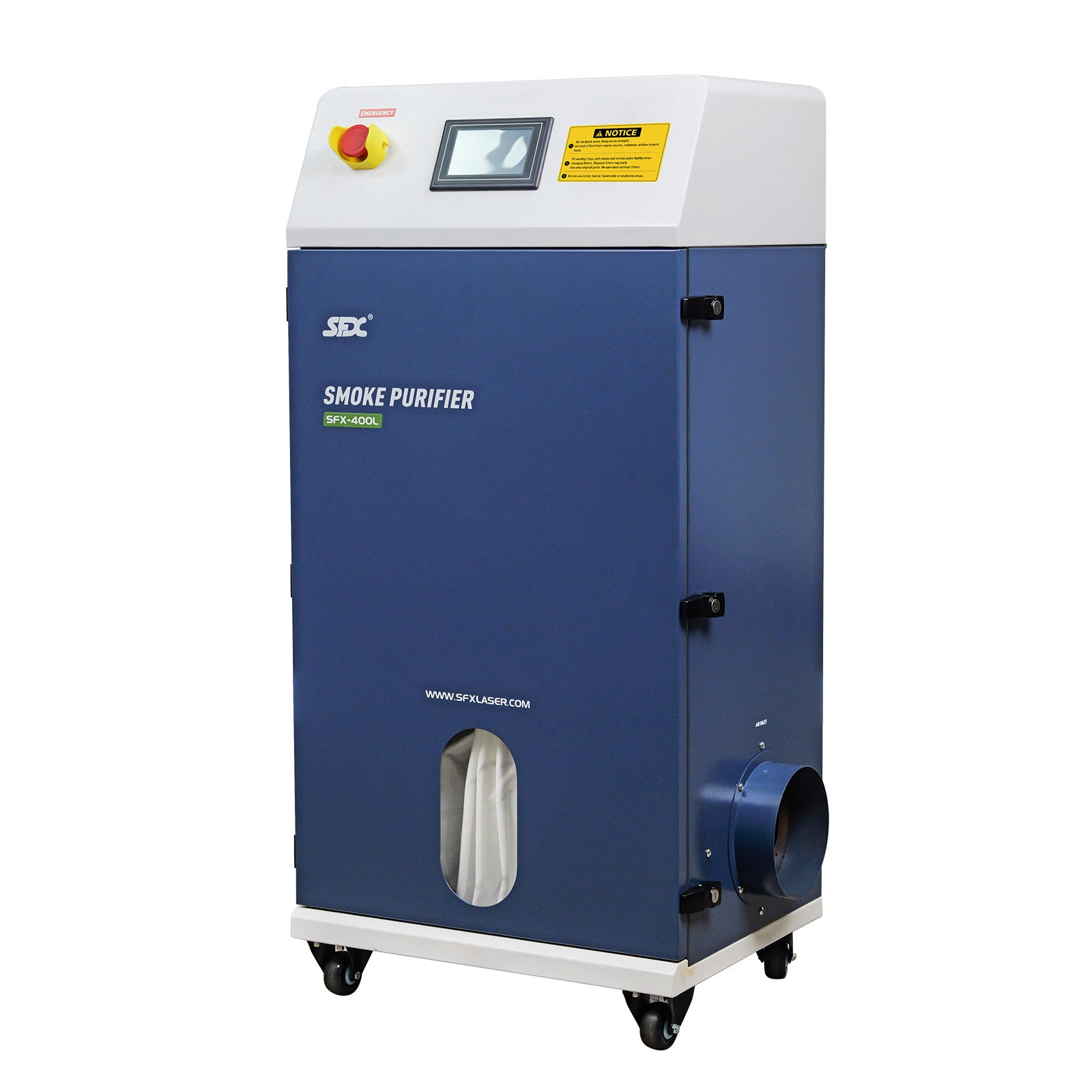

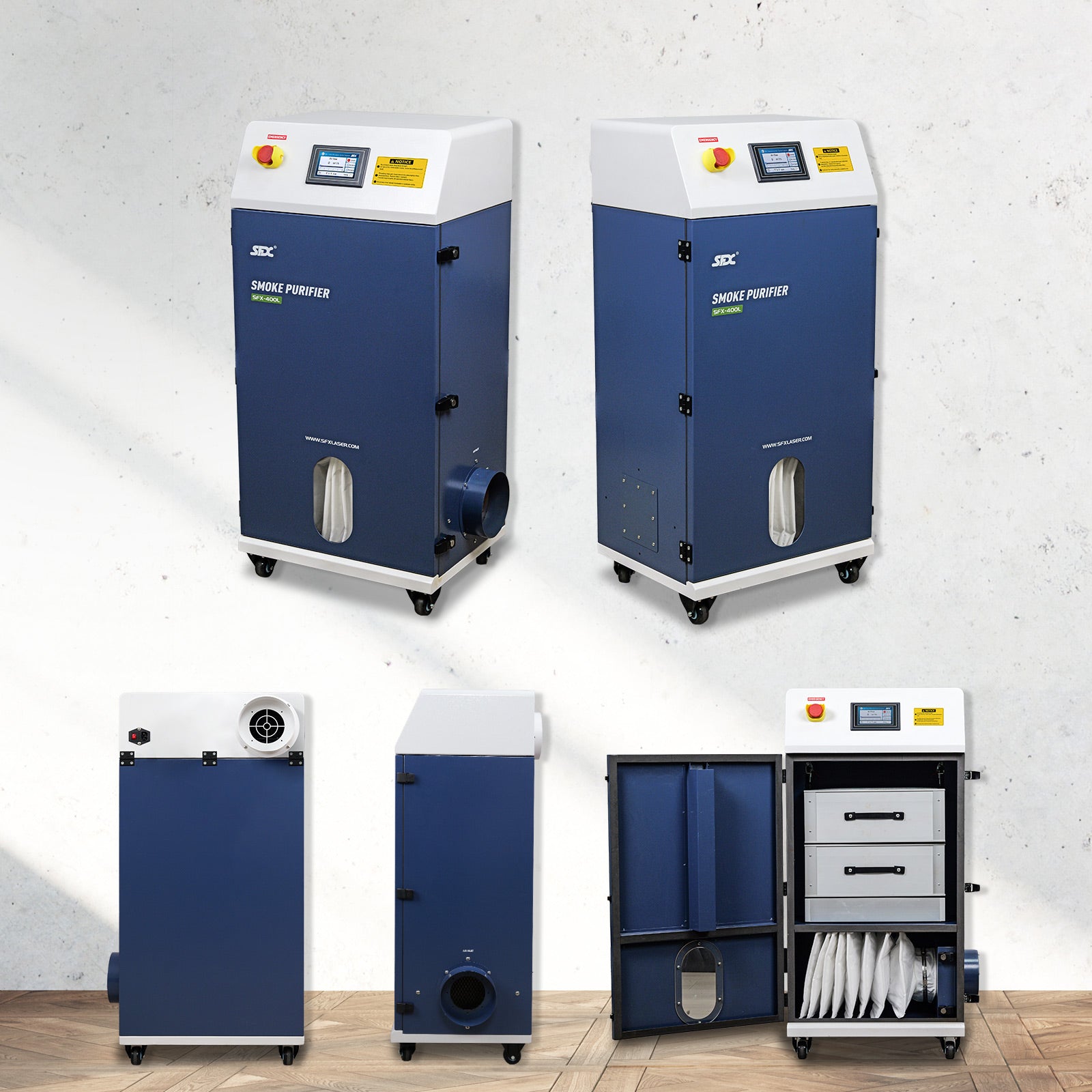

Clyertek Smoke Purifier Laser Cleaning Machine Fume Extractor

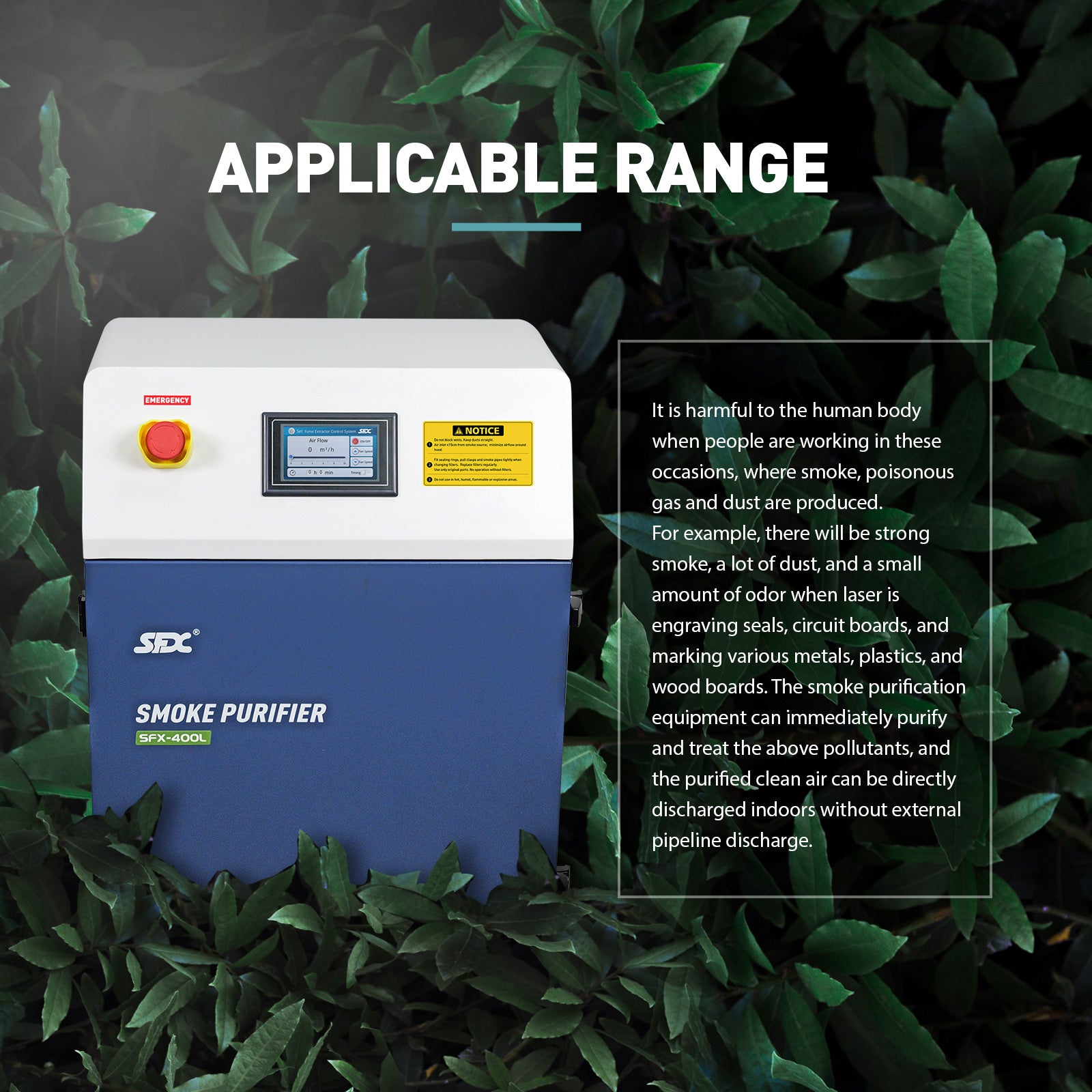

SFX-400L smoke purifier is designed for efficient removal of smoke, dust, odors, and harmful gases generated during laser processing such as laser cleaning, marking, engraving, welding, polishing, and grinding. It provides stable and high-efficiency air purification for industrial environments.

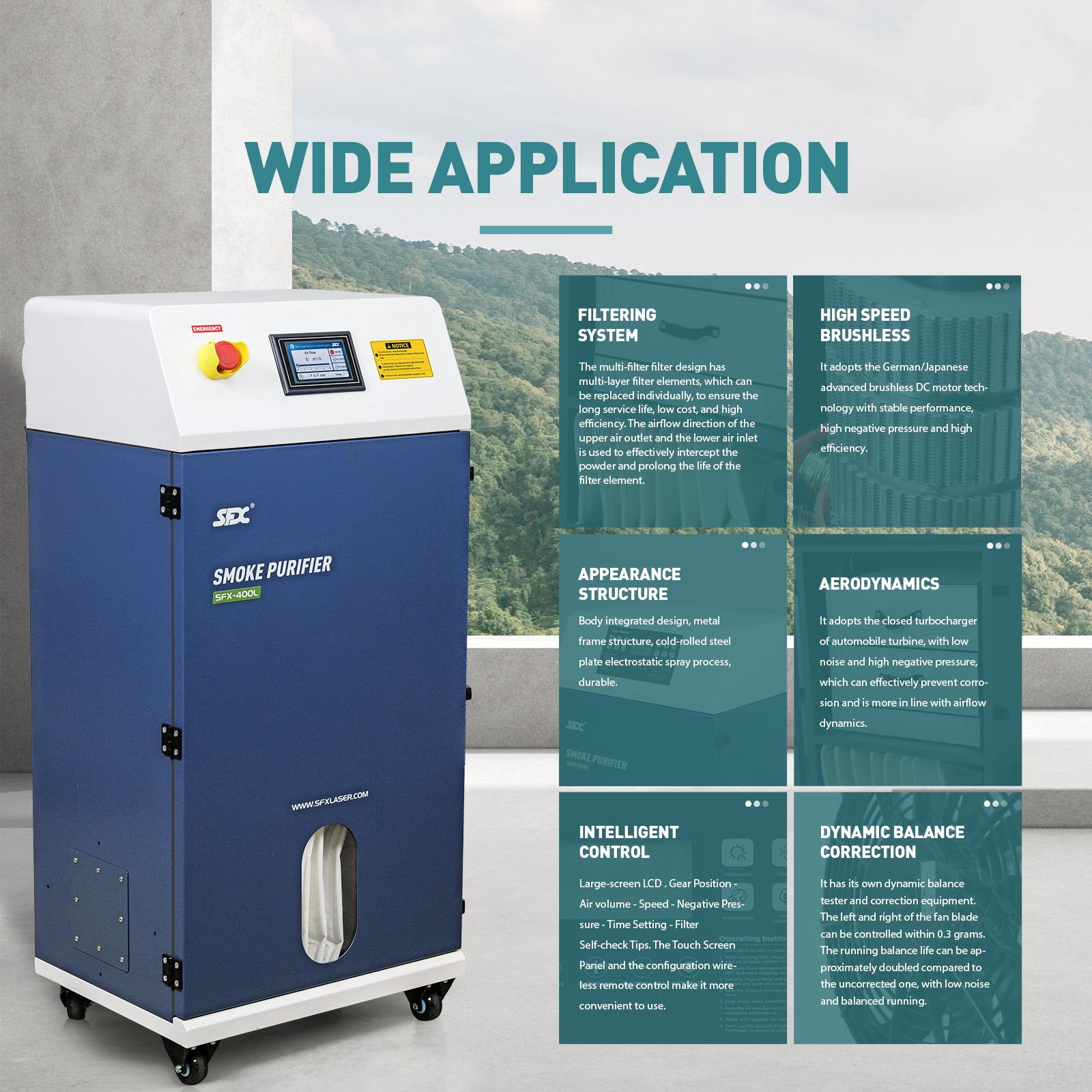

Product Features

• Multi-layer filtration system with long service life, low cost, and high efficiency
• High-speed brushless motor using German/Japanese advanced DC technology with stable performance
• Cold-rolled steel plate with electrostatic spray process for durable structure
• High-efficiency activated carbon composite filter system

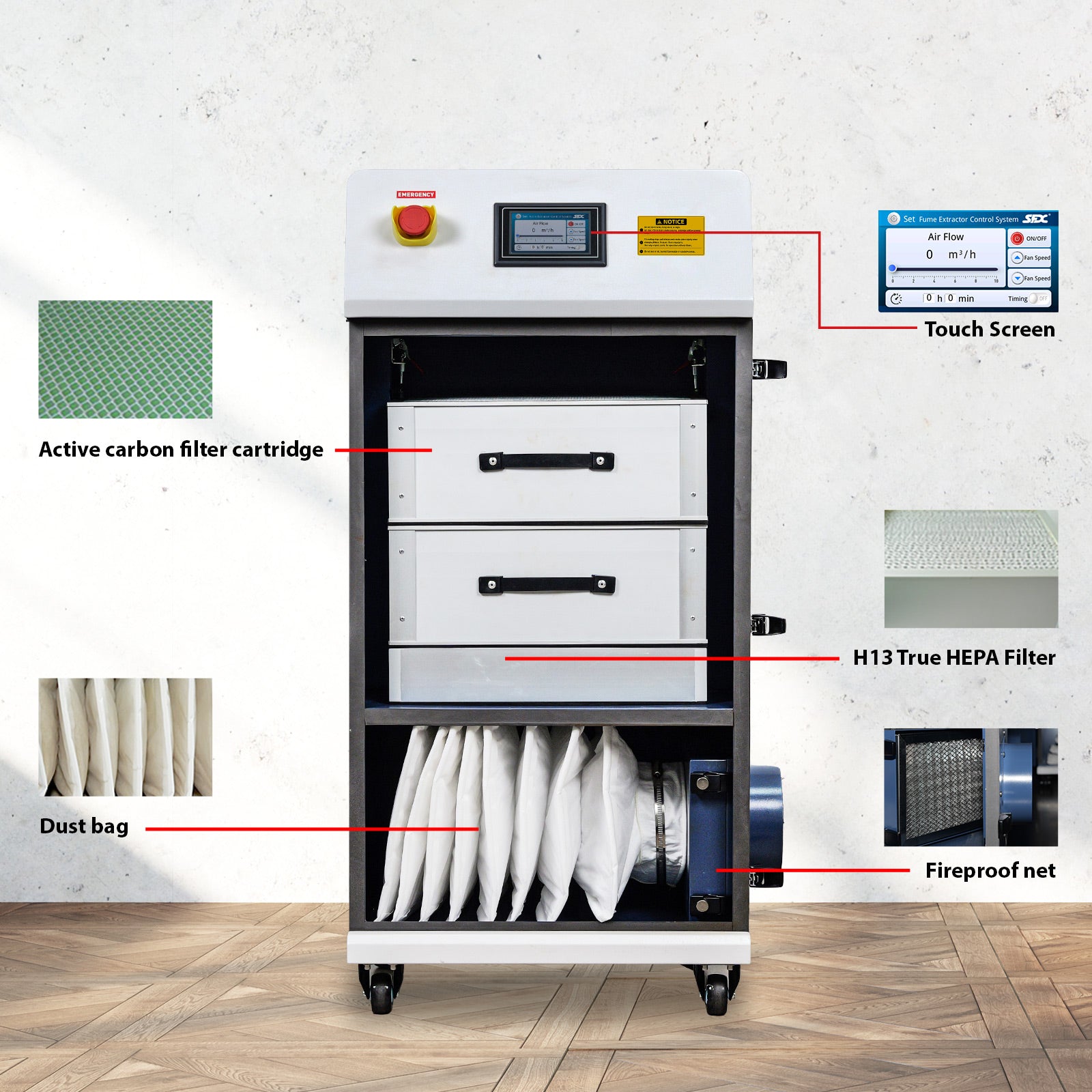

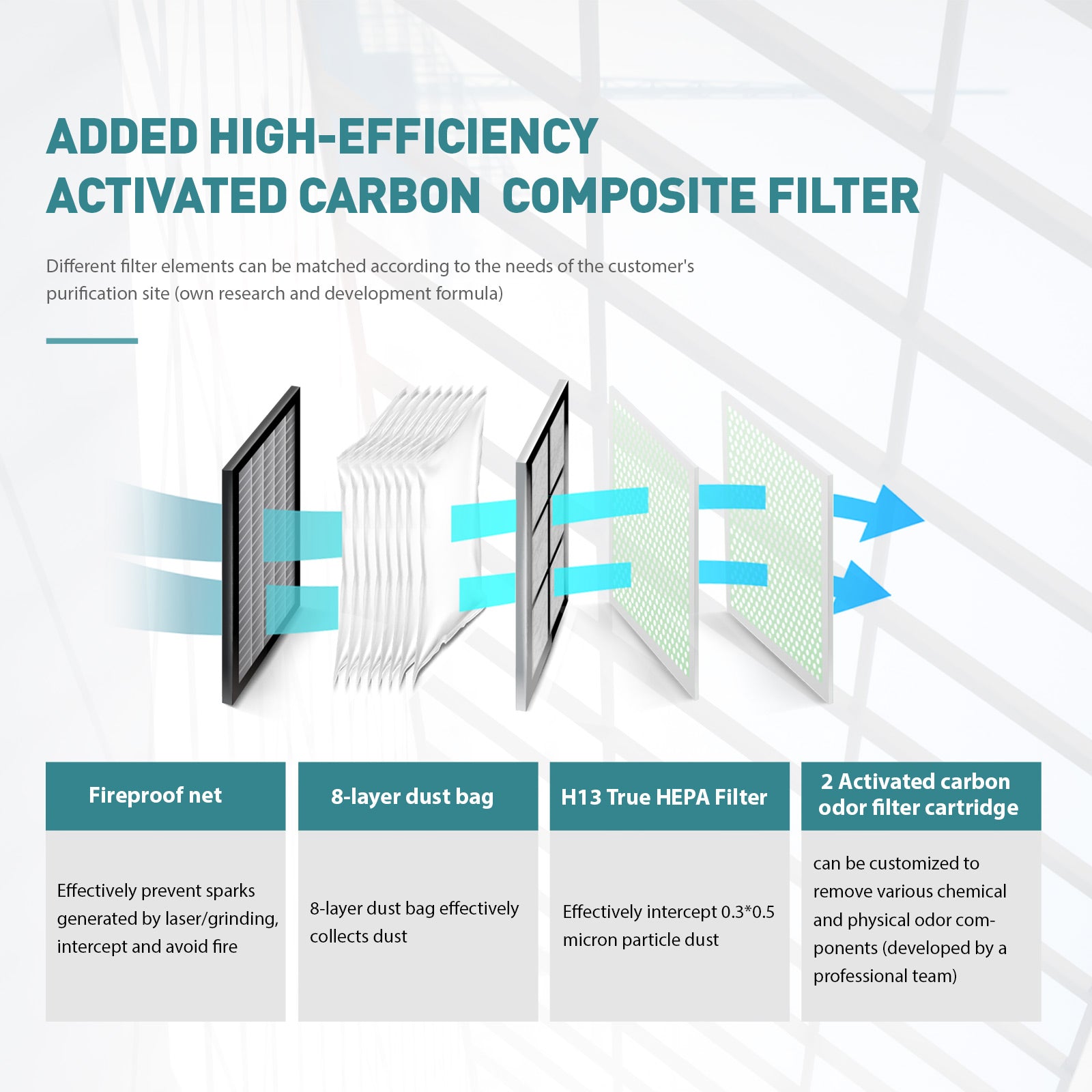

• Fireproof net + 8-layer dust bag + H13 true HEPA filter + 2 activated carbon odor filter cartridges
• Comprehensive purification of smoke, soot, small odor particles, and toxic gases
• Suitable for continuous industrial operation environments

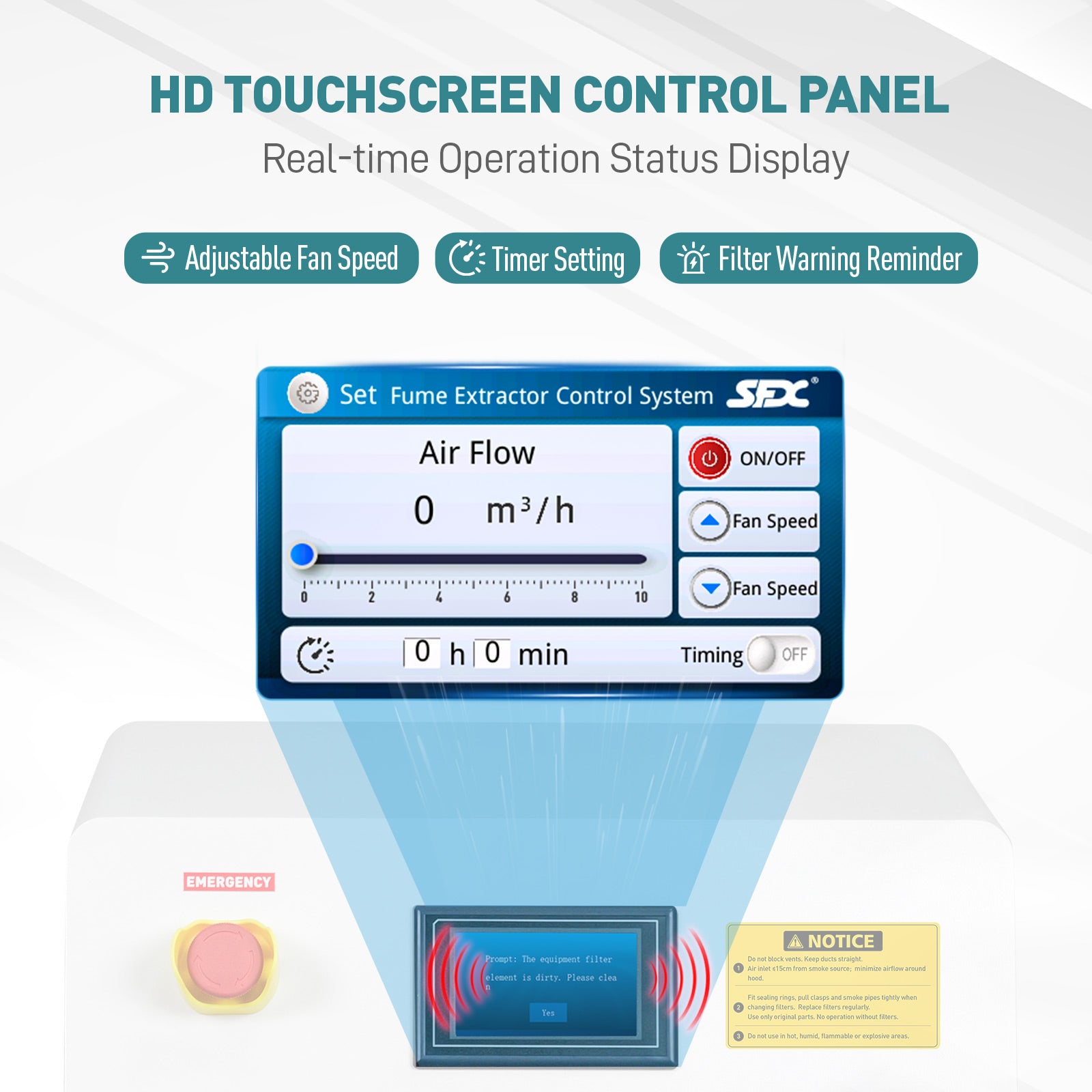

• HD touchscreen control panel, real-time operation status display

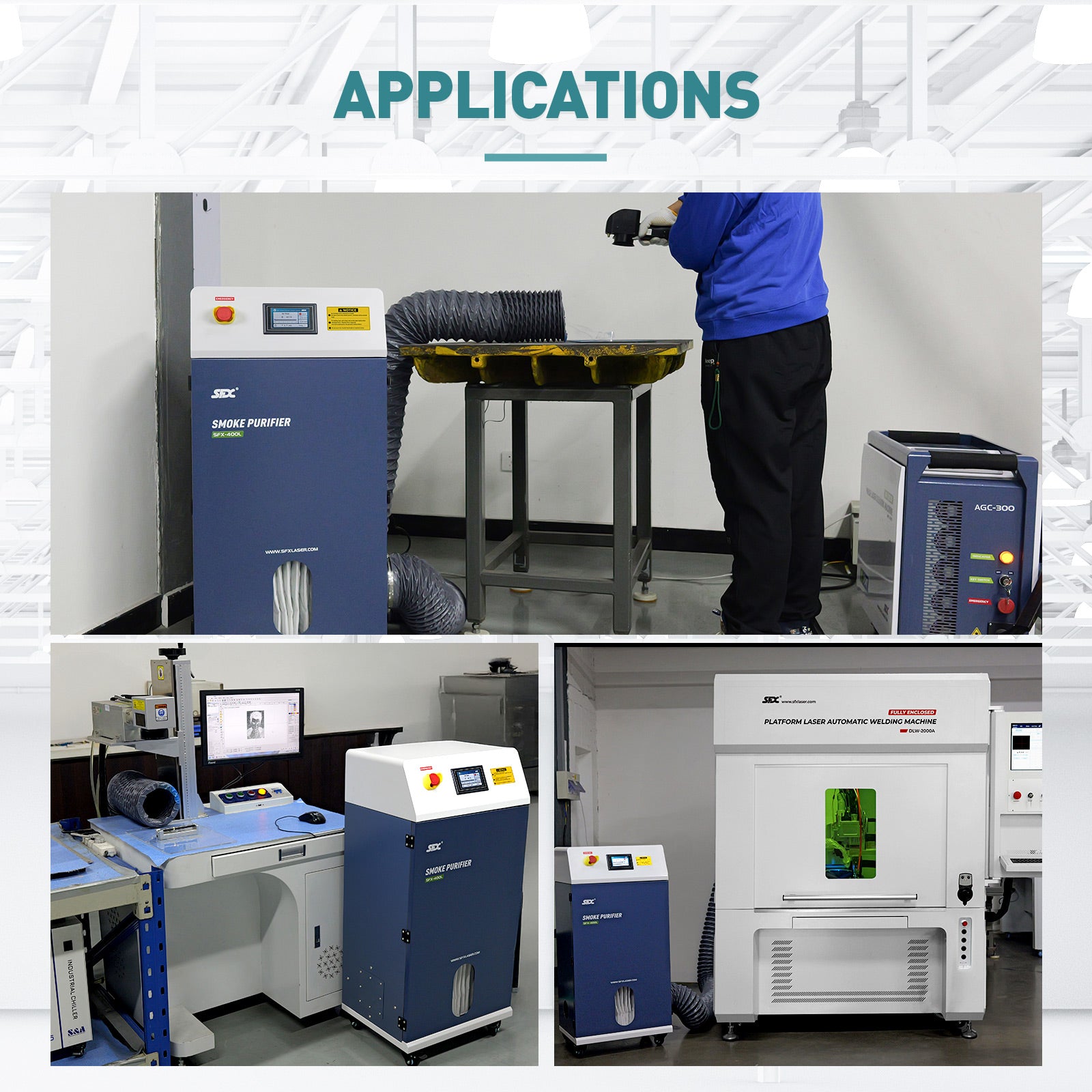

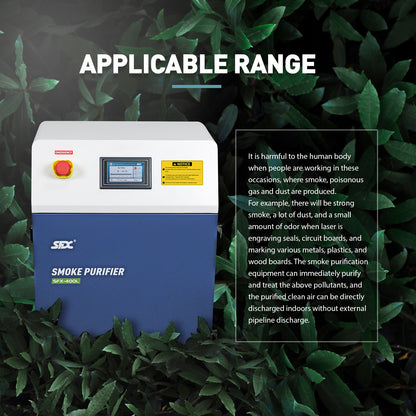

Applications

• Industrial laser cutting
• Industrial laser marking, engraving
• Laser welding, soldering, polishing, grinding processes
• Cleaing applications using low-power pulsed laser cleaning machines
• Air pollution dust particle control
• Factory workshop assembly lines

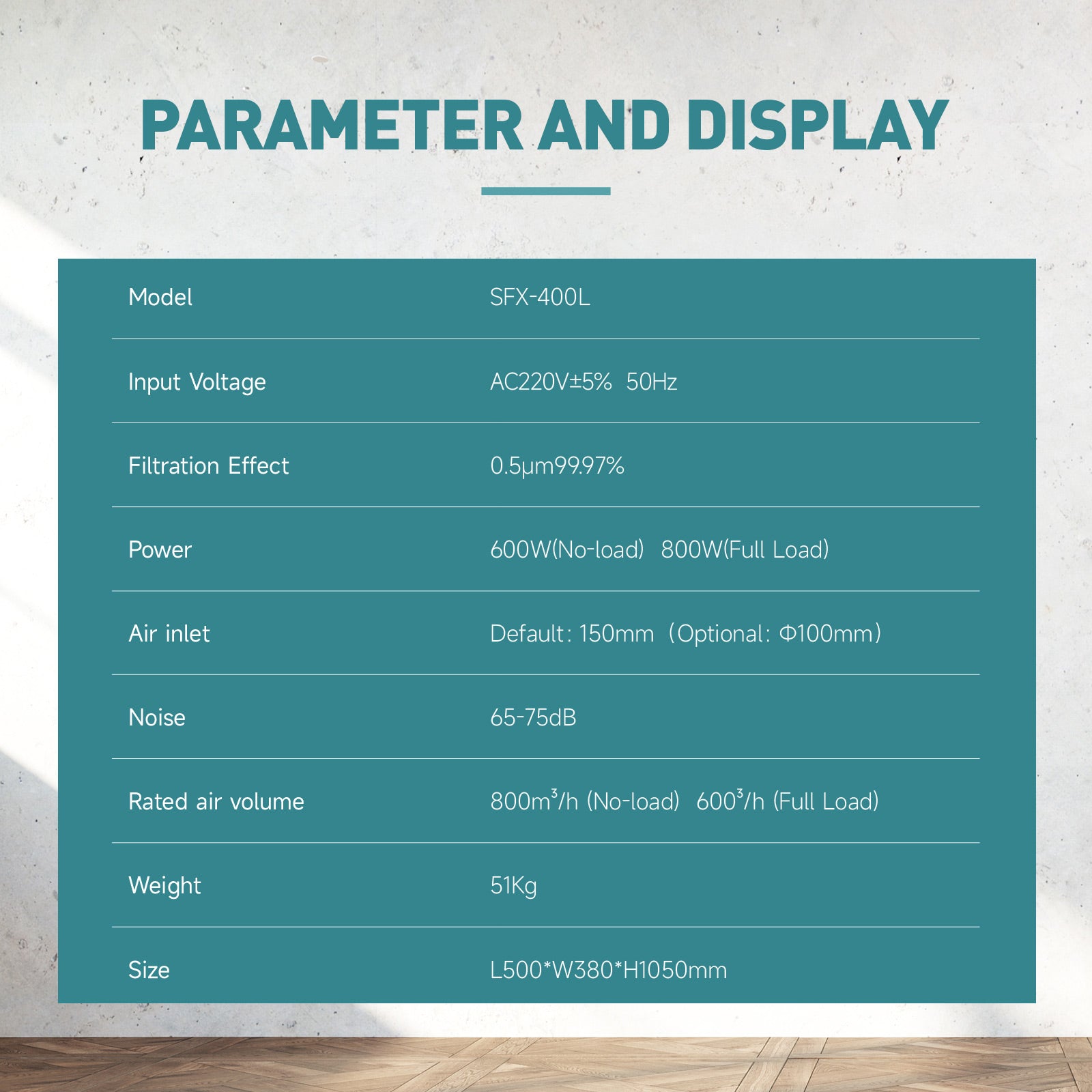

Product Parameters

• Model: 400L
• Input Voltage: AC220V±5% 50Hz
• Filtration Effect: 0.5μm, 99.97%
• Power: 600W (no-load), 800W (full load)
• Air Inlet: Default 150mm (Optical Φ100mm)
• Noise Level: 65–75dB
• Rated Air Volume: 800m³/h (no-load), 600m³/h (full load)
• Weight: 51kg
• Size: 500 × 380 × 1050mm
