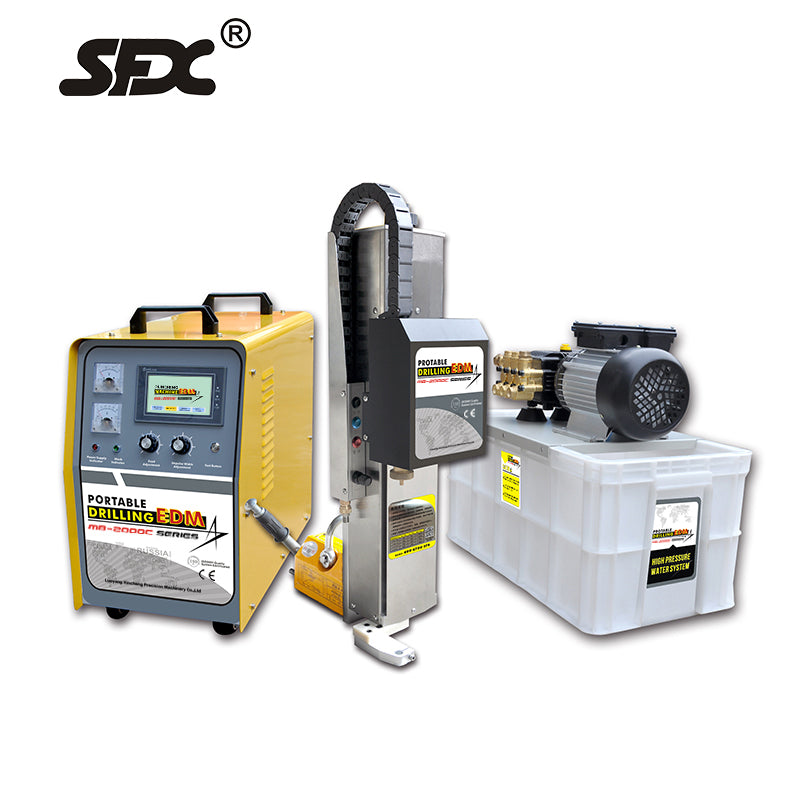

MB-2000C Portable EDM Small Hole Drilling Machine 0.5-3mm Hole Punching Machine

MB-2000C Portable EDM Hole Drilling Machine is designed for drilling Φ0.5–3.0mm deep holes in conductive materials. Utilizing EDM spark erosion technology, it delivers machining accuracy up to ±0.1mm and can also remove broken drills, taps, and reamers without damaging the original workpiece.

Key Highlights

• Φ0.5–3.0mm hole machining range
• Machining accuracy up to ±0.1mm
• Maximum processing depth up to 300mm
• Suitable for all conductive materials
• Portable work head with permanent magnetic chuck
• Machining on flat, inclined, and curved surfaces
• High-pressure water flushing for cooling and debris removal

Product Features

1. EDM Spark Erosion

MB-2000C portable EDM small hole drilling machine utilizes the principle of electric erosion to melt and corrode the metal section by generating electric sparks to achieve the purpose of perforating on the metal workpiece.

2. Portable Magnetic Work Head

A powerful permanent magnetic chuck secures the work head directly to workpieces, reducing the need for additional fixtures and making on-site machining more convenient.

3. Water Flushing System

The brass tube electrode is continuously cooled and flushed with tap water during machining. This helps remove machining debris and maintain stable EDM performance.

4. Broken Taps Removal

The MB-2000C can be used to remove broken drills, taps, reamers, and similar tools from workpieces while preserving the original hole or thread.

5. Flexible Hole Machining

The portable design allows the work head to be positioned directly on large or difficult-to-move workpieces, including components with inclined or curved surfaces.

Applications

• Deep-hole drilling in conductive metal components
• Mold and die manufacturing and repair

• Removal of broken drills, taps, and reamers
• Maintenance and repair of large metal components
• Precision machining of stainless steel, hardened steel, carbide, copper, aluminum, and other conductive materials

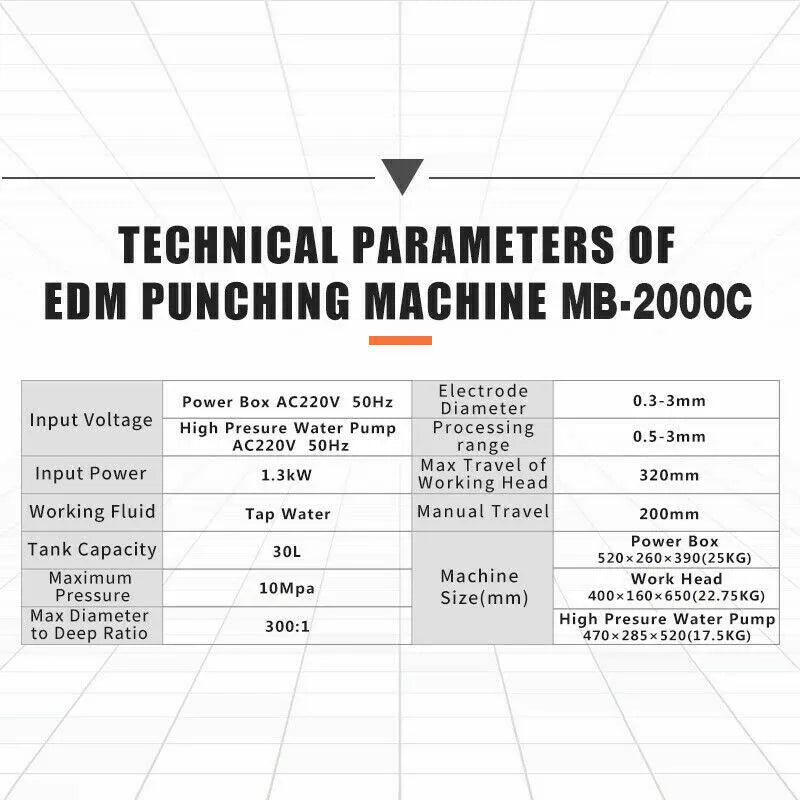

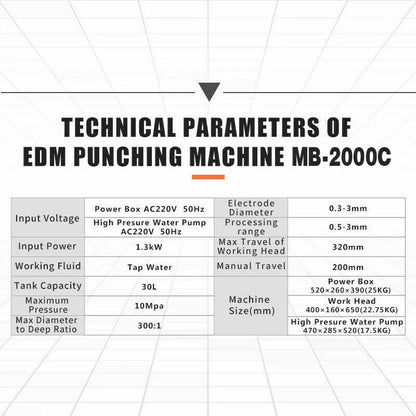

Product Parameters

Model: MB-2000C

Power Box Input Voltage: AC 110V / 220V, 50/60Hz

Input Power: 1500W

Water Pump Input Voltage: AC 110V / 220V, 50/60Hz

Hole Diameter: Φ0.5–3.0mm

Machining Accuracy: ±0.1mm

Maximum Processing Depth: 300mm (with Φ1mm brass electrode)

Maximum Work Head Travel: 300mm

Manual Travel: 300mm

Working Liquid: Tap Water

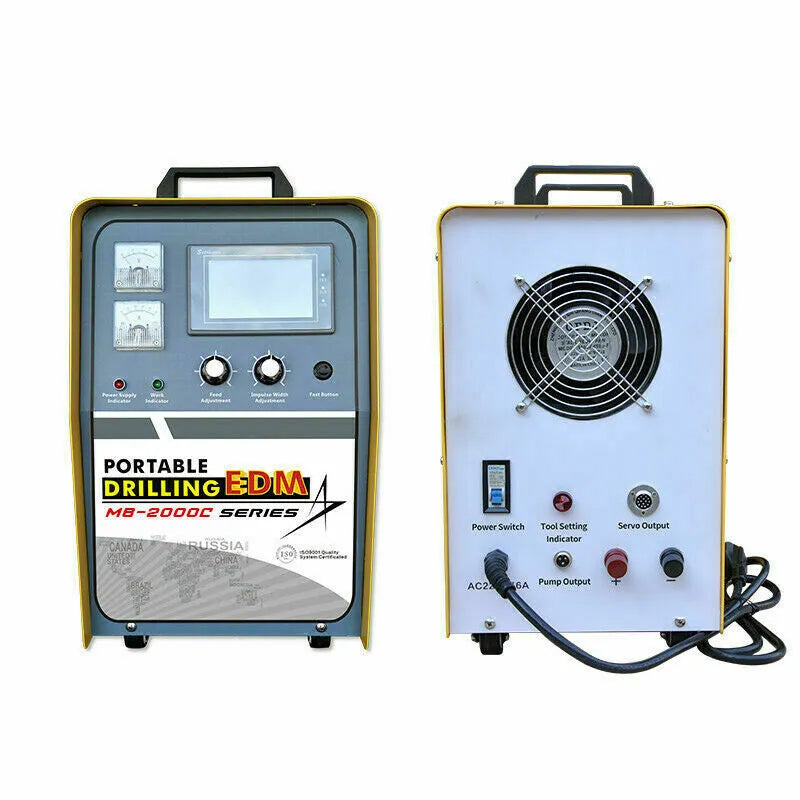

Power Box Size: 540 × 275 × 500 mm

Power Box Weight: 22 kg

Work Head Size: 375 × 155 × 690 mm

Work Head Weight: 23 kg

Water Pump Size: 600 × 300 × 460 mm

Water Pump Weight: 20 kg

Transformer Weight: 10 kg

Gross Weight: 80 kg

Warranty & Service

• Free shipping to your door with an estimated delivery time of 5-7 days.
• No import duty for customers in the United States.
• CE certified.
• 1-year warranty.
• Free replacement parts and repair service for covered issues during the warranty period.
• Professional technical support and after-sales service.
