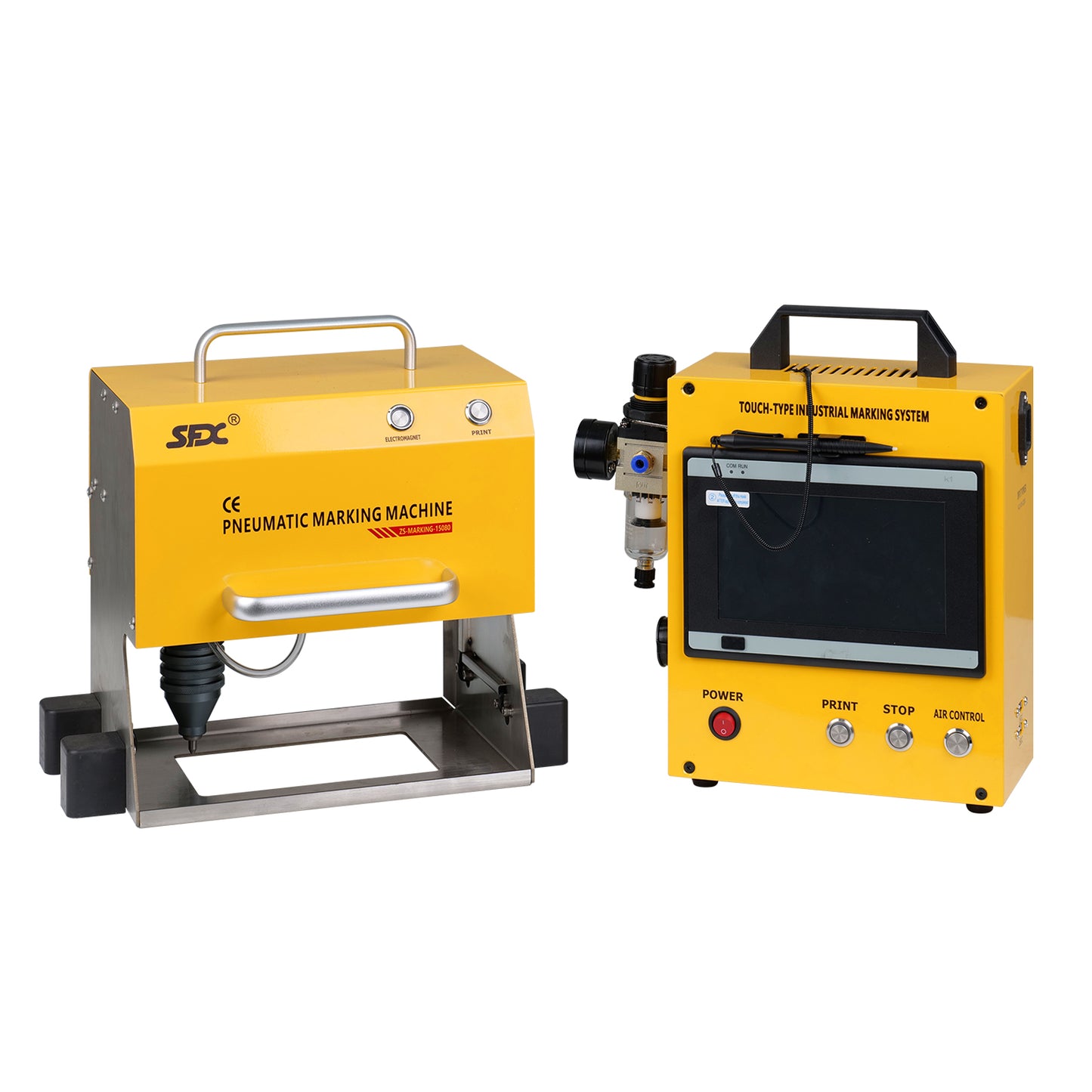

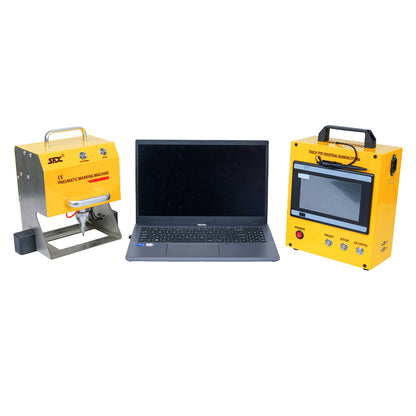

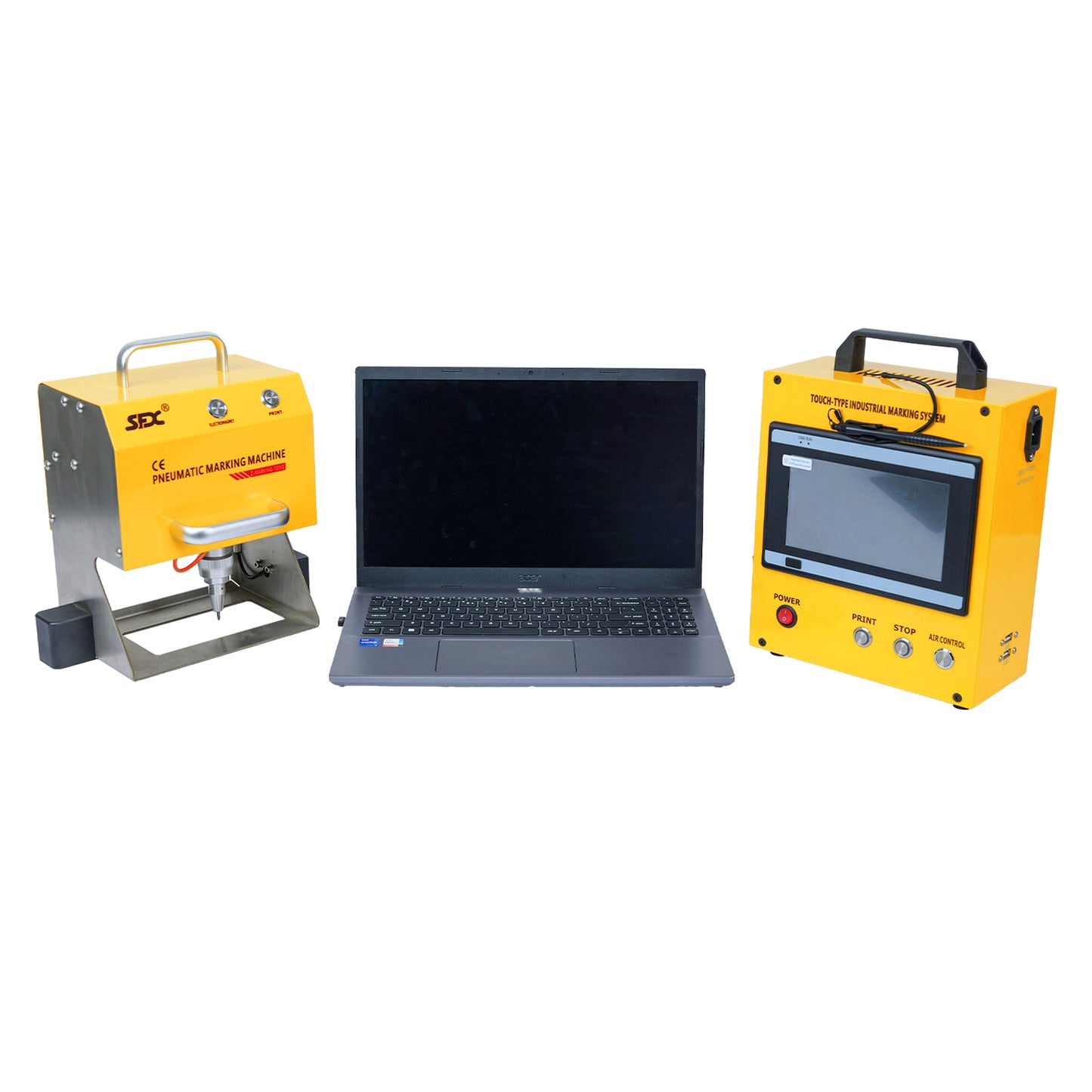

Clyertek Pneumatic Marking Machine Dot Peen Metal Engraver

Clyertek Dot Peen Marking Machine is a portable pneumatic marking system designed for permanent identification and traceability on metal components and industrial parts. It can mark text, serial numbers, VIN codes, dates, graphics, and other customized information. Available in three marking sizes, it is suitable for a wide range of manufacturing, maintenance, and product identification applications.

Key Highlights

• Standalone operation without a computer
• Electromagnetic base design
• High-temperature operating stability
• Durable alloy marking needles
• Permanent and precise marking results
• Bilingual operation interface
• Multiple marking area options

Product Features

Standalone Operation

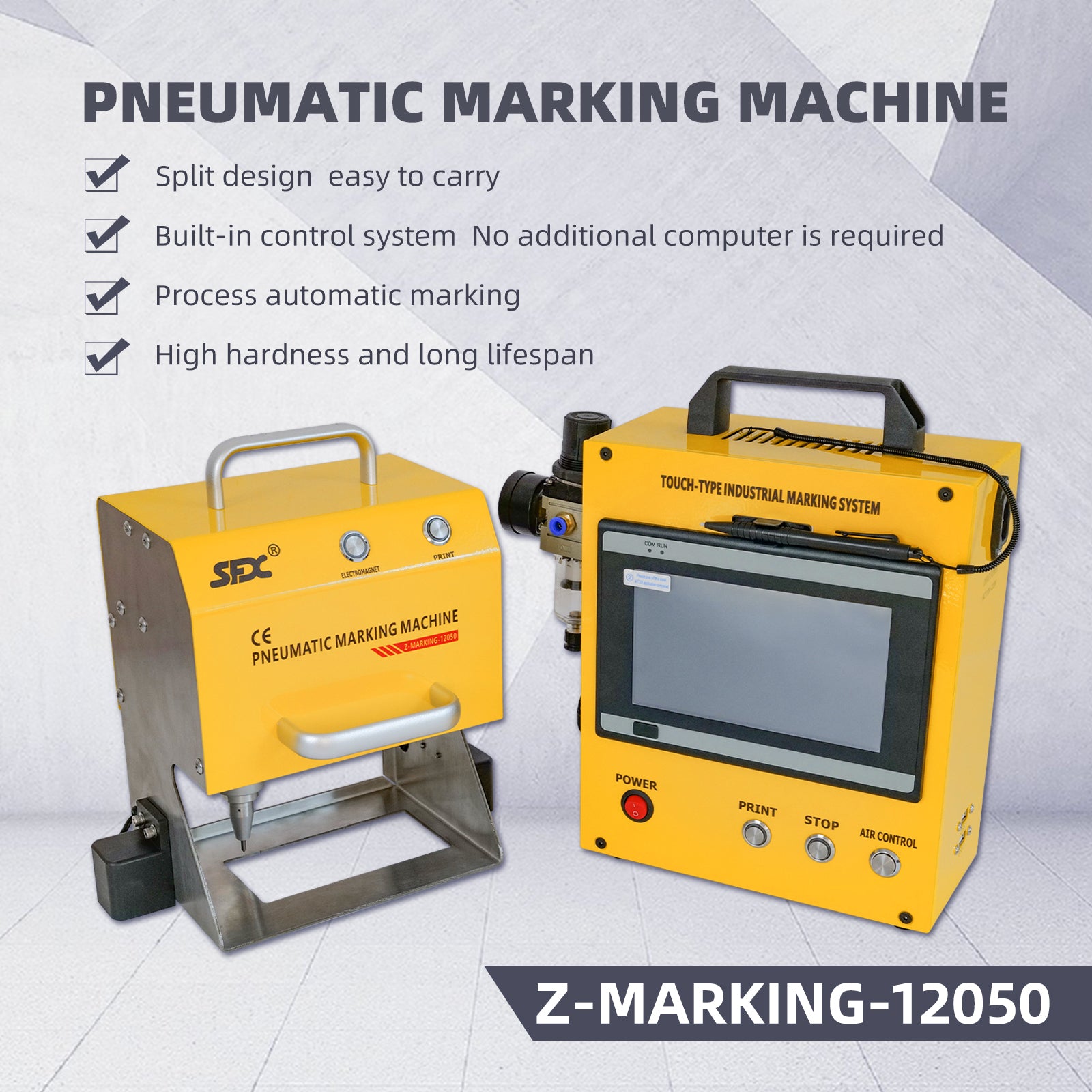

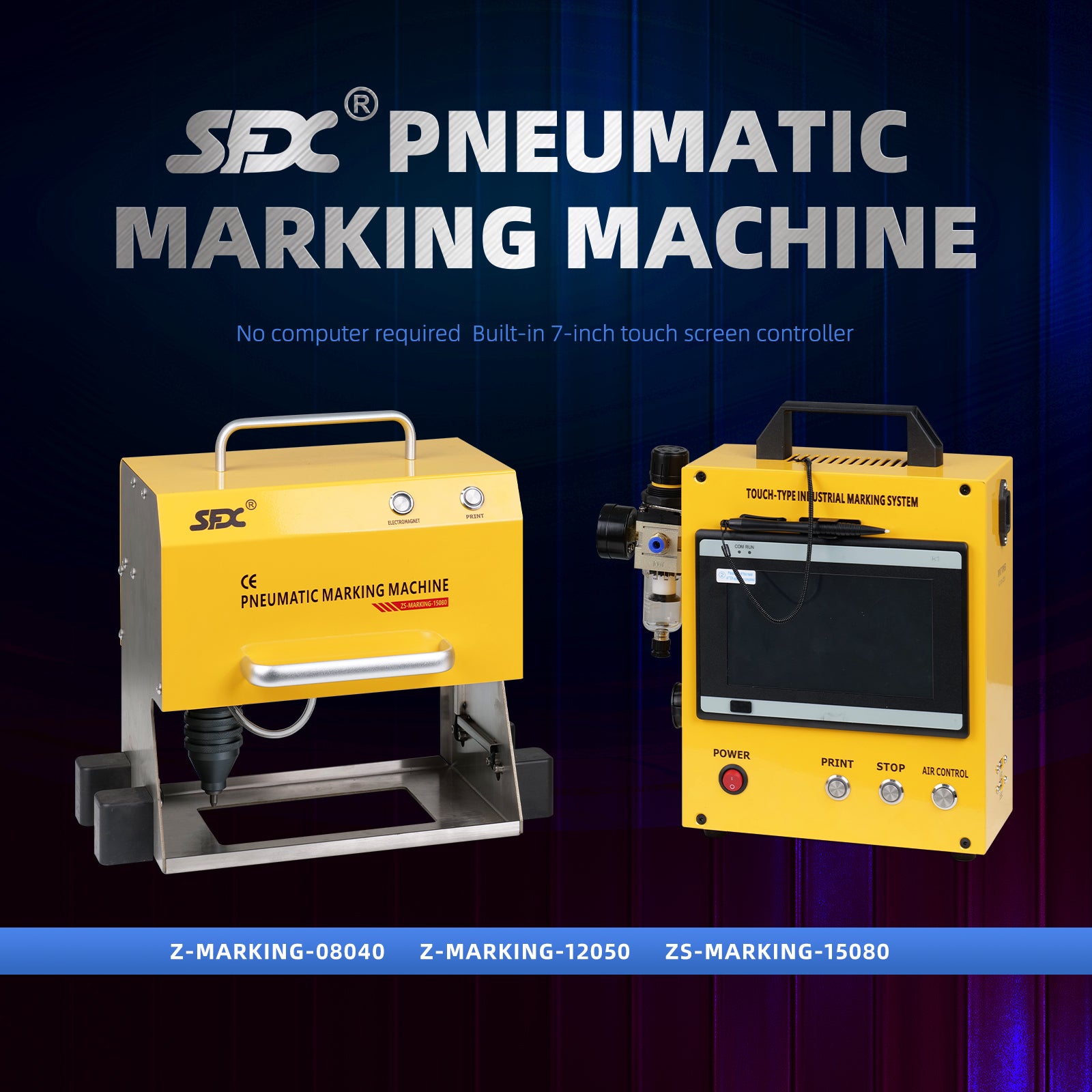

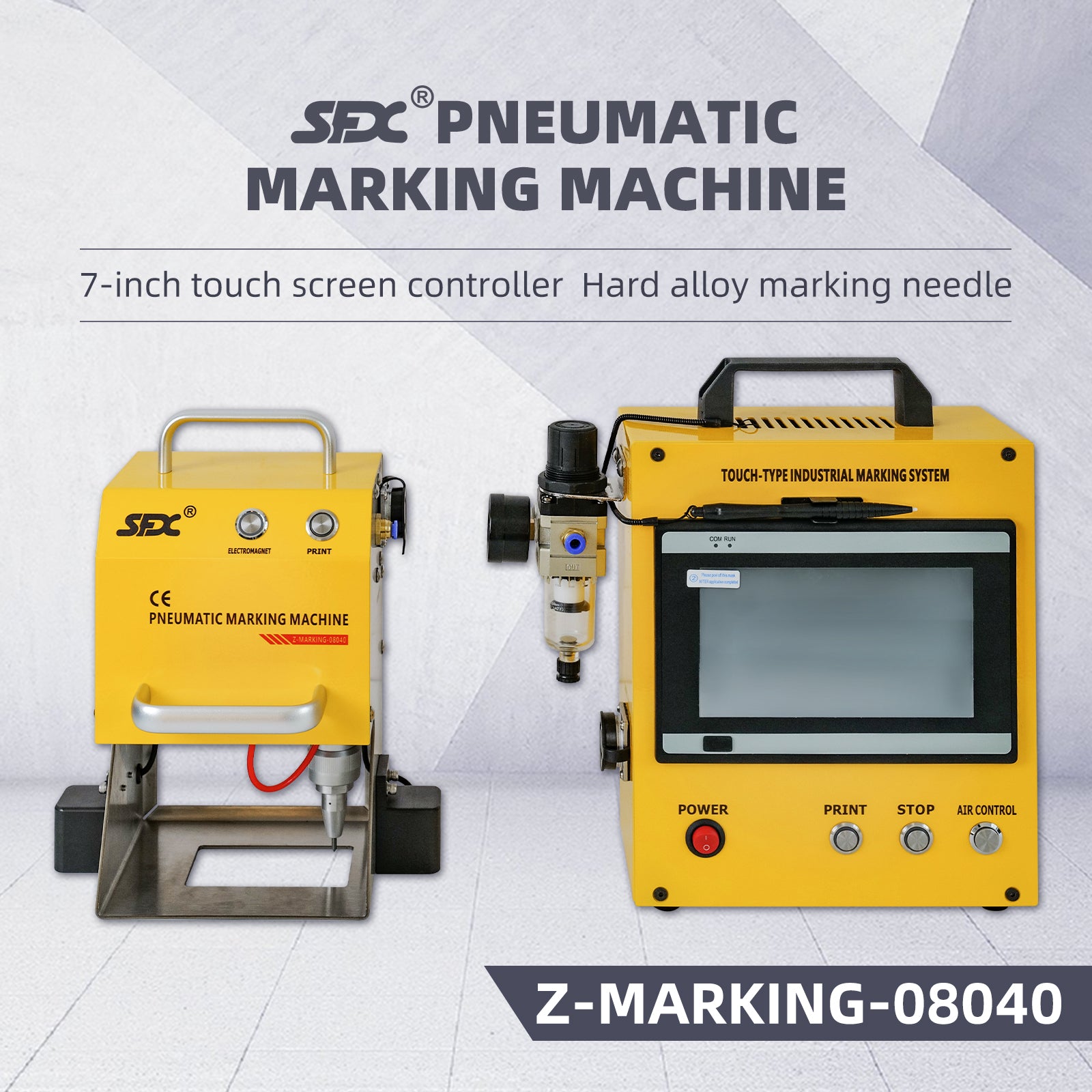

The integrated 7-inch touchscreen controller allows the machine to operate independently without an external computer. Simply connect the air supply and power source to begin marking.

Electromagnetic Base Design

The marking head features an electromagnetic base that securely attaches to magnetic workpieces, providing stable positioning during operation.

High-Temperature Stability

Tested for continuous operation in environments up to 40°C, ensuring reliable performance in demanding industrial conditions.

Durable Marking Needles

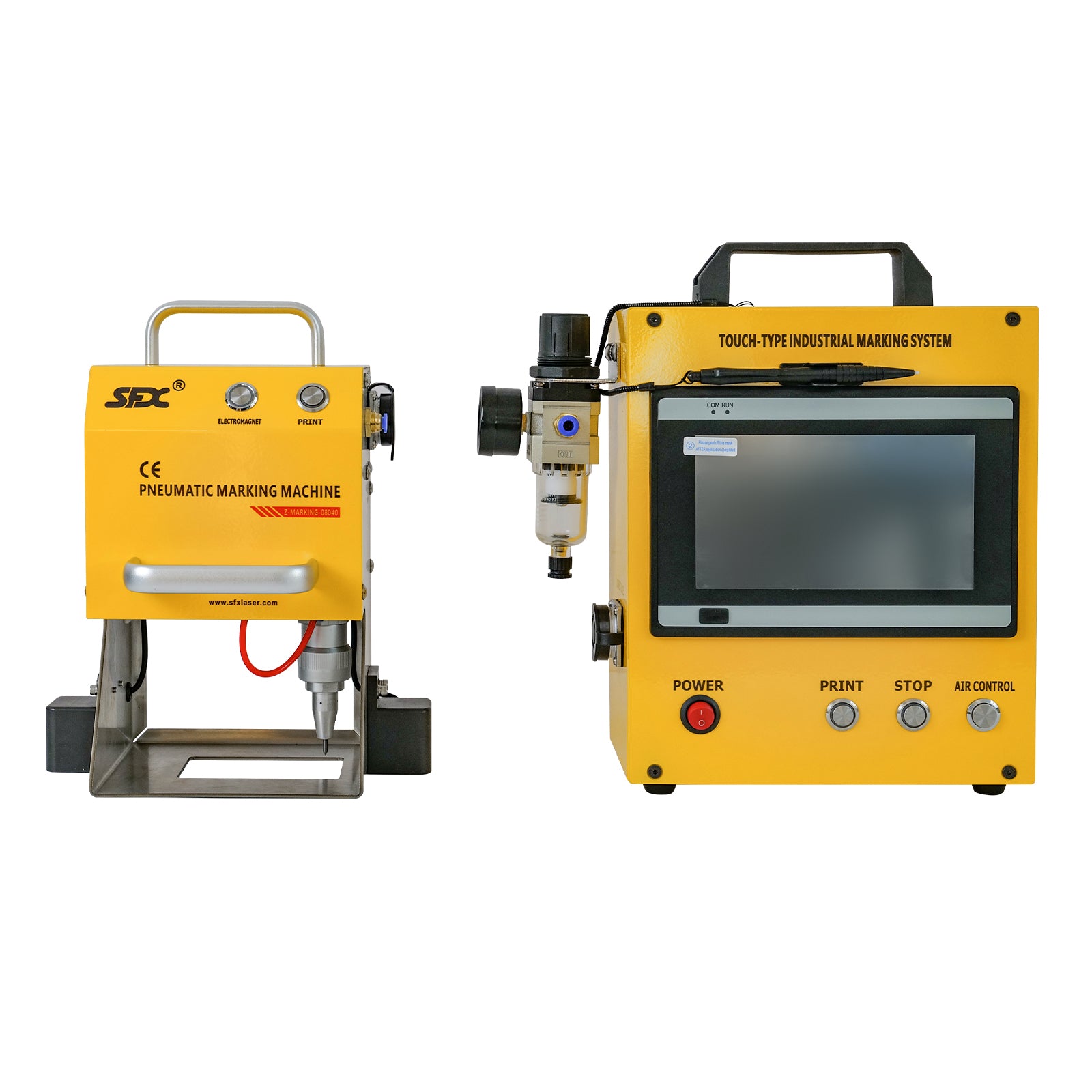

• Z-MARKING-08040 and Z-MARKING-12050 are equipped with hard alloy marking needles suitable for materials with hardness below HRC60.

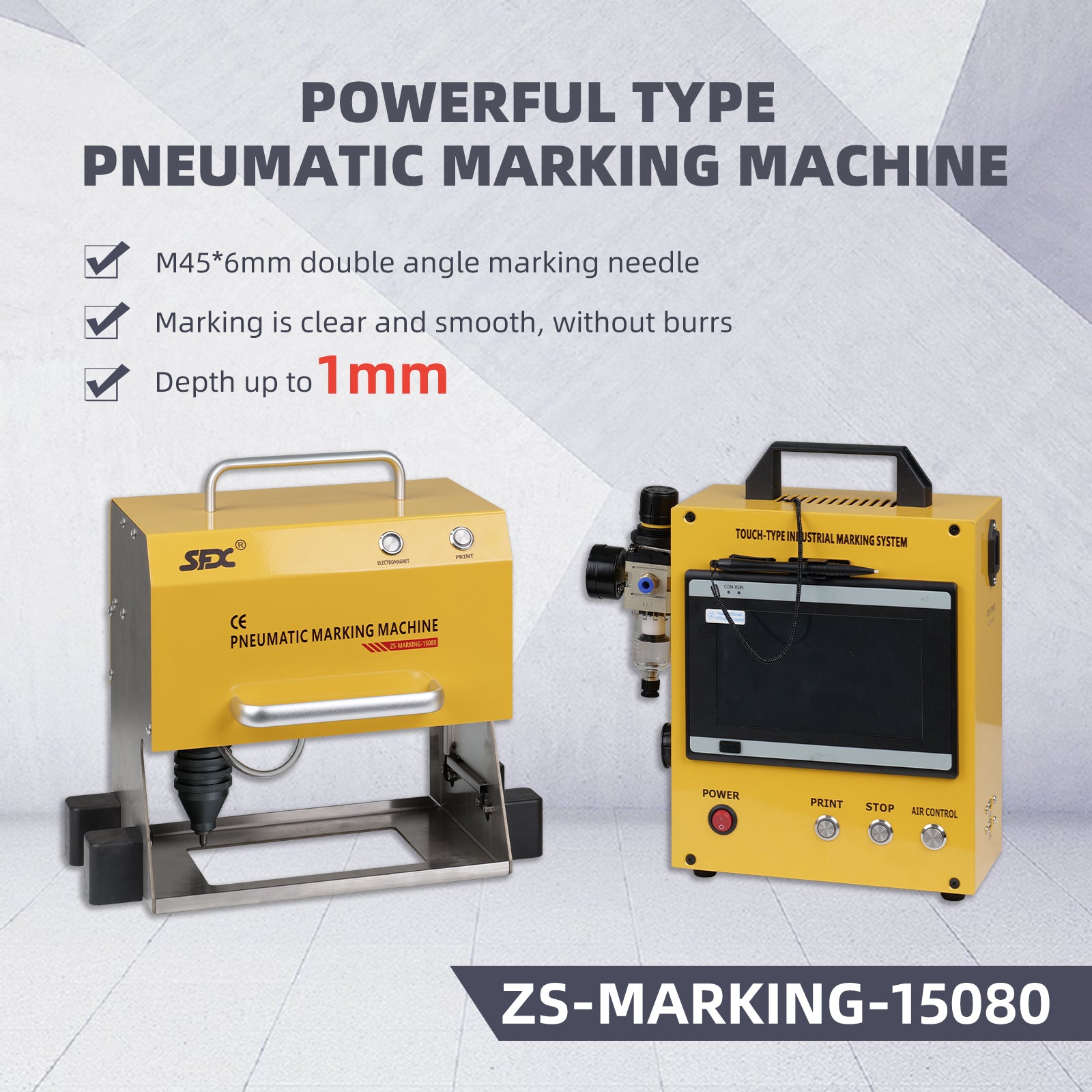

• ZS-MARKING-15080 features a heavy-duty large-size marking needle suitable for materials with hardness below HRC65.

Permanent Marking Performance

The pneumatic marking system produces clear and durable marks with marking depths ranging from 0.02 mm to 1 mm depending on the material.

Flexible Marking Capability

Supports automatic marking of:

• Fixed characters
• Serial numbers
• VIN numbers
• Dates
• Graphics
• Customized identification information

Applications

Suitable for marking:

• Nameplates and identification tags
• Metal accessories
• Stainless steel products
• Copper components
• Iron parts
• Aluminum products
• Electronic sensors
• Transformers
• Electronic components
• Machinery parts
• Automotive components

Optional carbide pneumatic marking needles are available for specialized marking requirements.

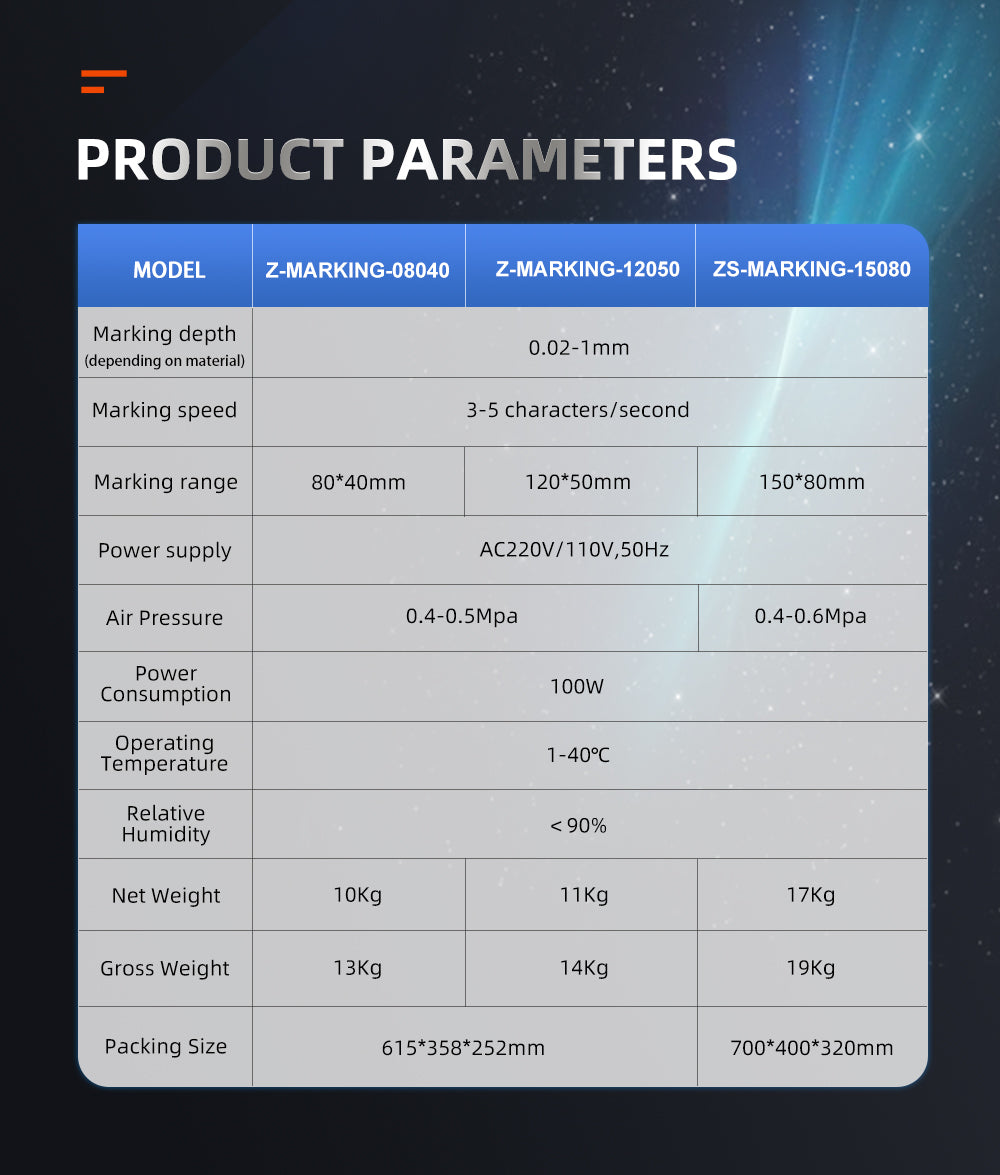

Technical Specifications

• Model: Z-MARKING-08040 / Z-MARKING-12050 / ZS-MARKING-15080
• Marking Depth: 0.02–1 mm (depending on material)
• Marking Speed: 3–5 characters/second
• Marking Range: 80×40 mm (3.1×1.5 in) / 120×50 mm (4.7×2 in) / 150×80 mm (5.9×3.1 in)
• Power Supply: AC110V / 220V, 50Hz
• Air Pressure: 0.4–0.5 MPa / 0.4–0.6 MPa
• Air Consumption: 3 L/s
• Power Consumption: 100W
• Operating Temperature: 1–40°C
• Relative Humidity: <90%
• Net Weight: 10 kg / 11 kg / 17 kg

Warranty, Service & Delivery

• 1-year warranty, CE certified
• Professional technical support and after-sales service
• Trusted by customers in more than 90 countries worldwide

Shipping & Policy

• Free shipping within the United States via DHL / UPS / FedEx. Estimated delivery: 3–7 business days after the machine is ready.
• No import duties for US customers.
• 30-day return policy. Full responsibility for every machine sold.
