20W 30W 50W Pro Model Portable Laser Marking Machine Fiber with 100*100mm Marking Area

$2,599.00 USD

~~$2,899.00 USD~~ $2,599.00 USD

Sale Sold out

Shipping calculated at checkout.

✅ Product Brand: SFX Laser

✅ Offered by Clyertek

✅ Backed by Shared Engineering, Warranty & Service Resources

Power 20W 30W 50W

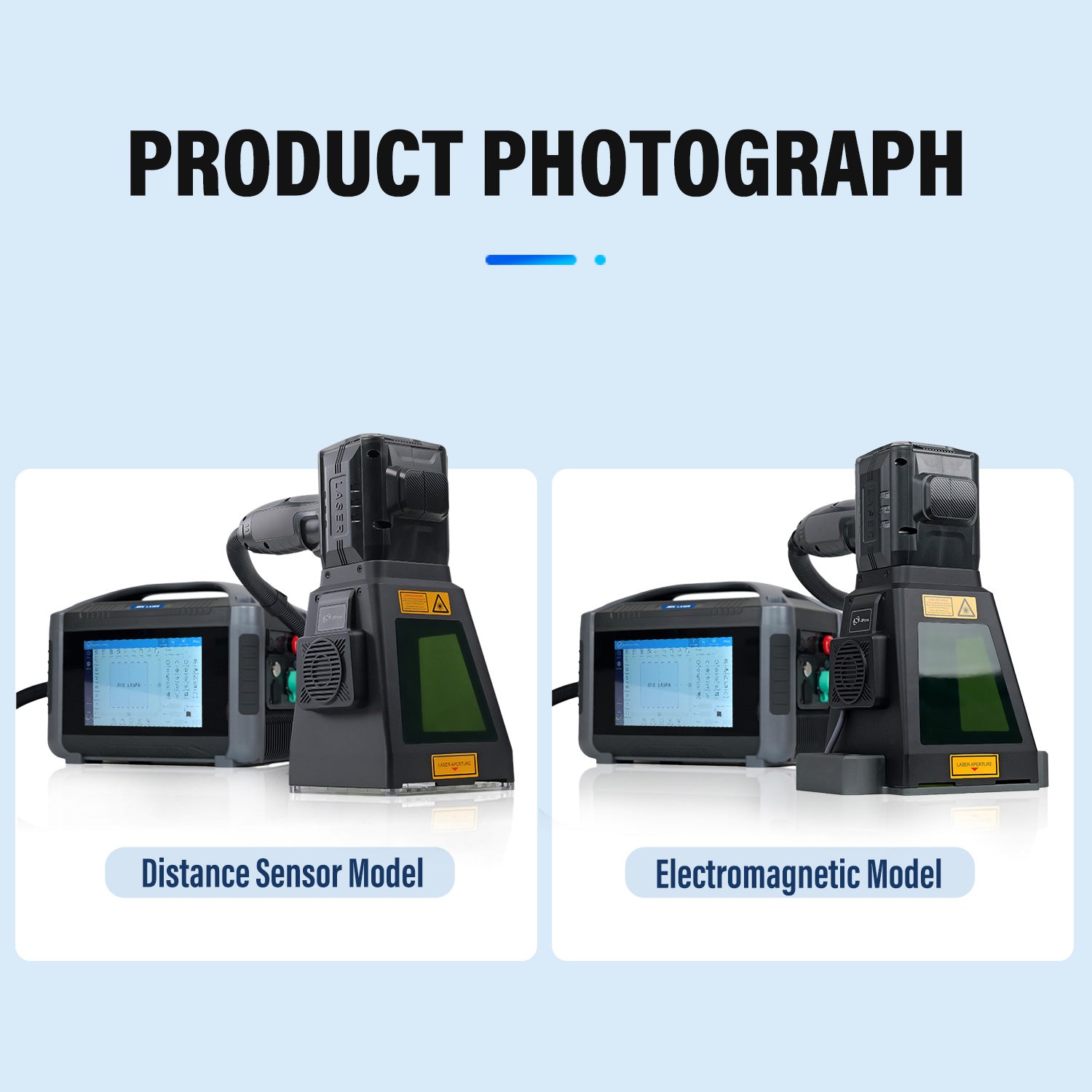

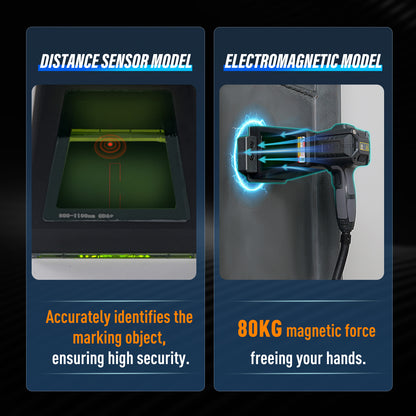

Model Distance Sensor Electromagnetic

Power Supply Lithium Battery Without Battery

Get a Quote

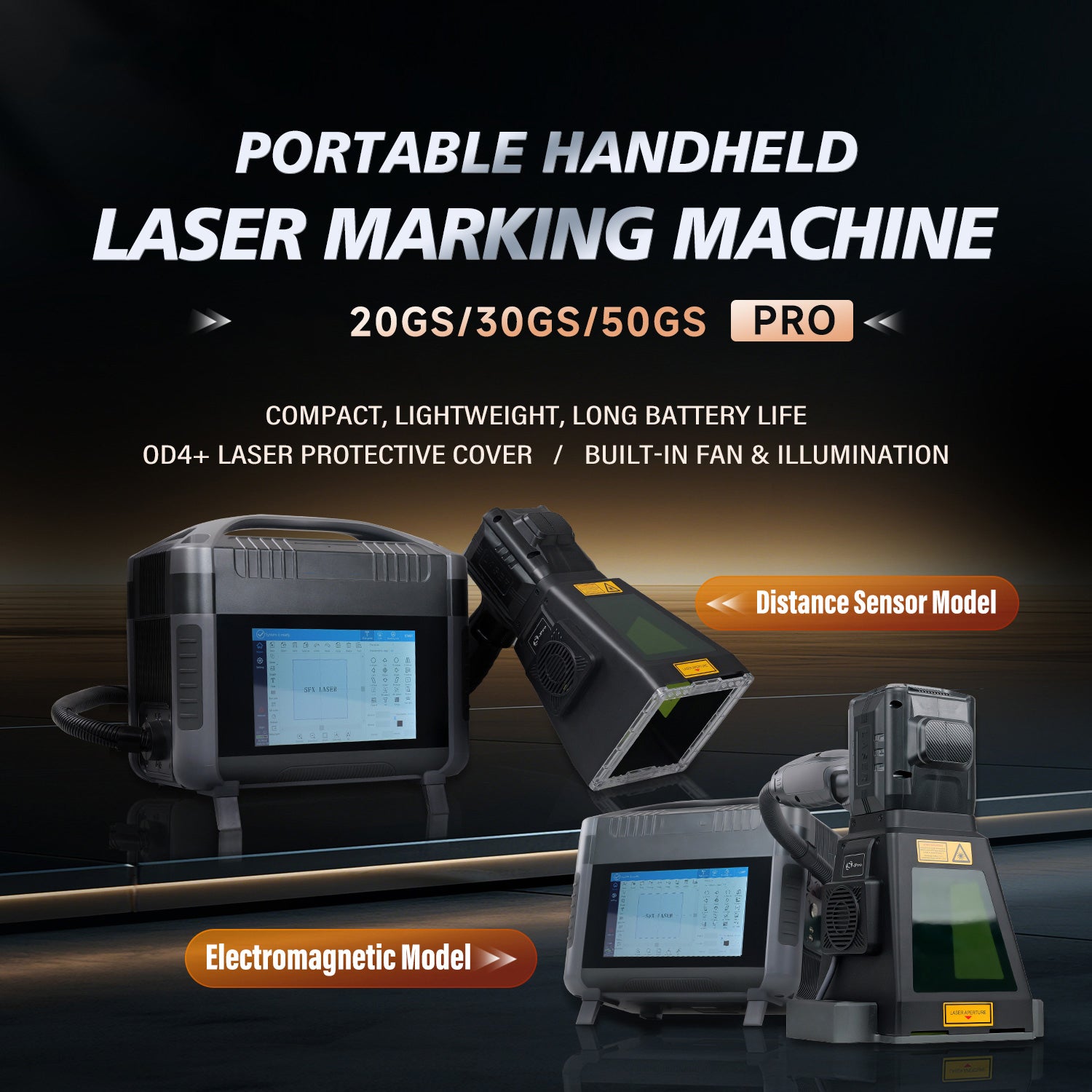

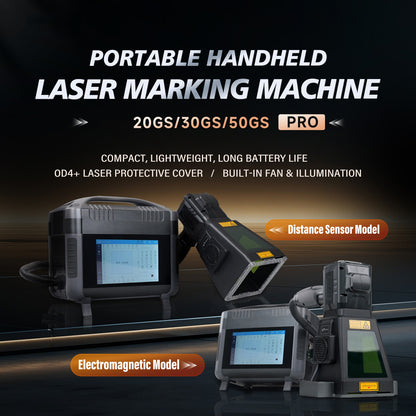

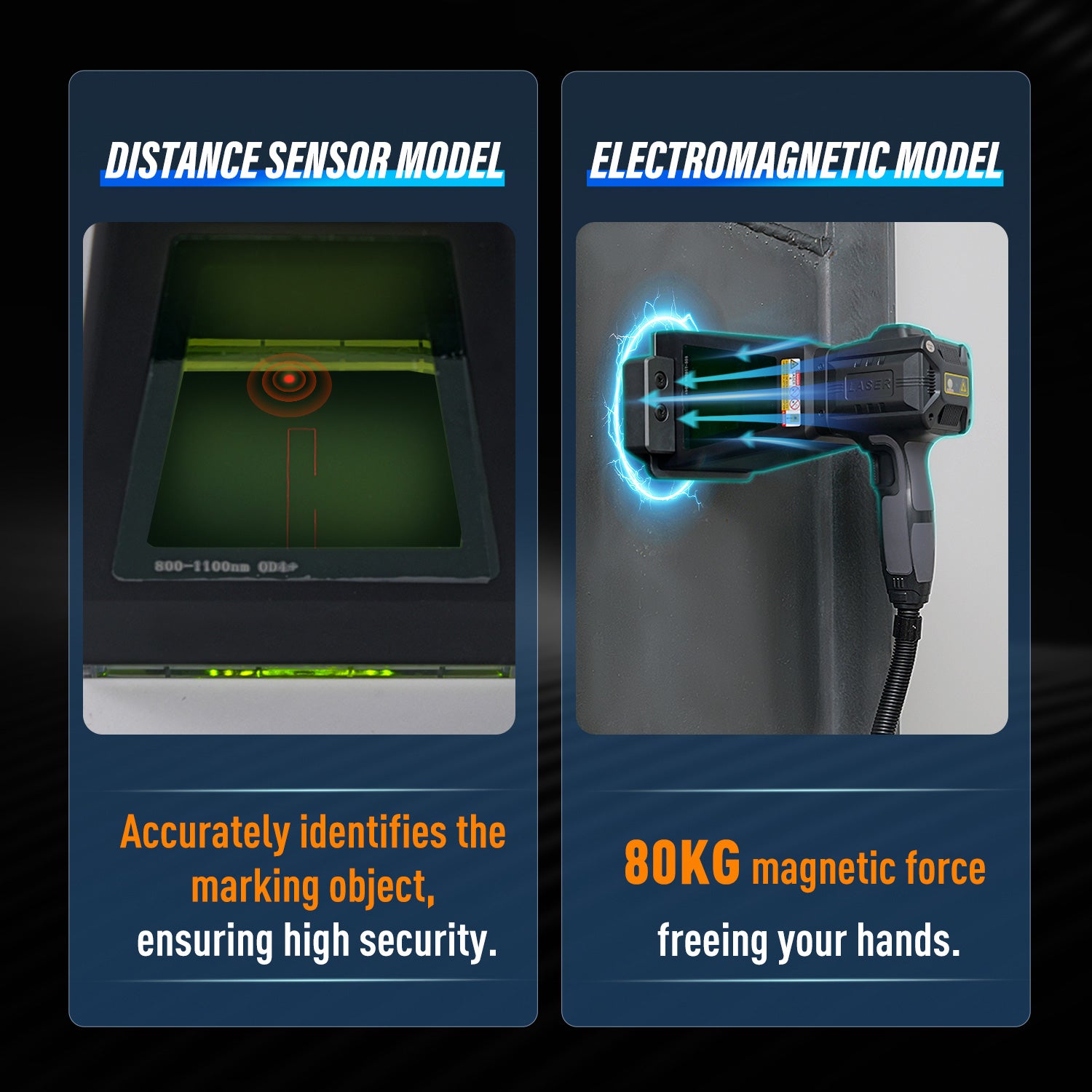

20W 30W 50W Pro model portable laser marking machine with 100×100mm lens for metal and non-metal materials marking. Distance Sensor and Electromagnetic Model optional. OD4+ laser protective cover, built-in fan & illumination.

Product Features

Available in 20W, 30W, and 50W laser power options

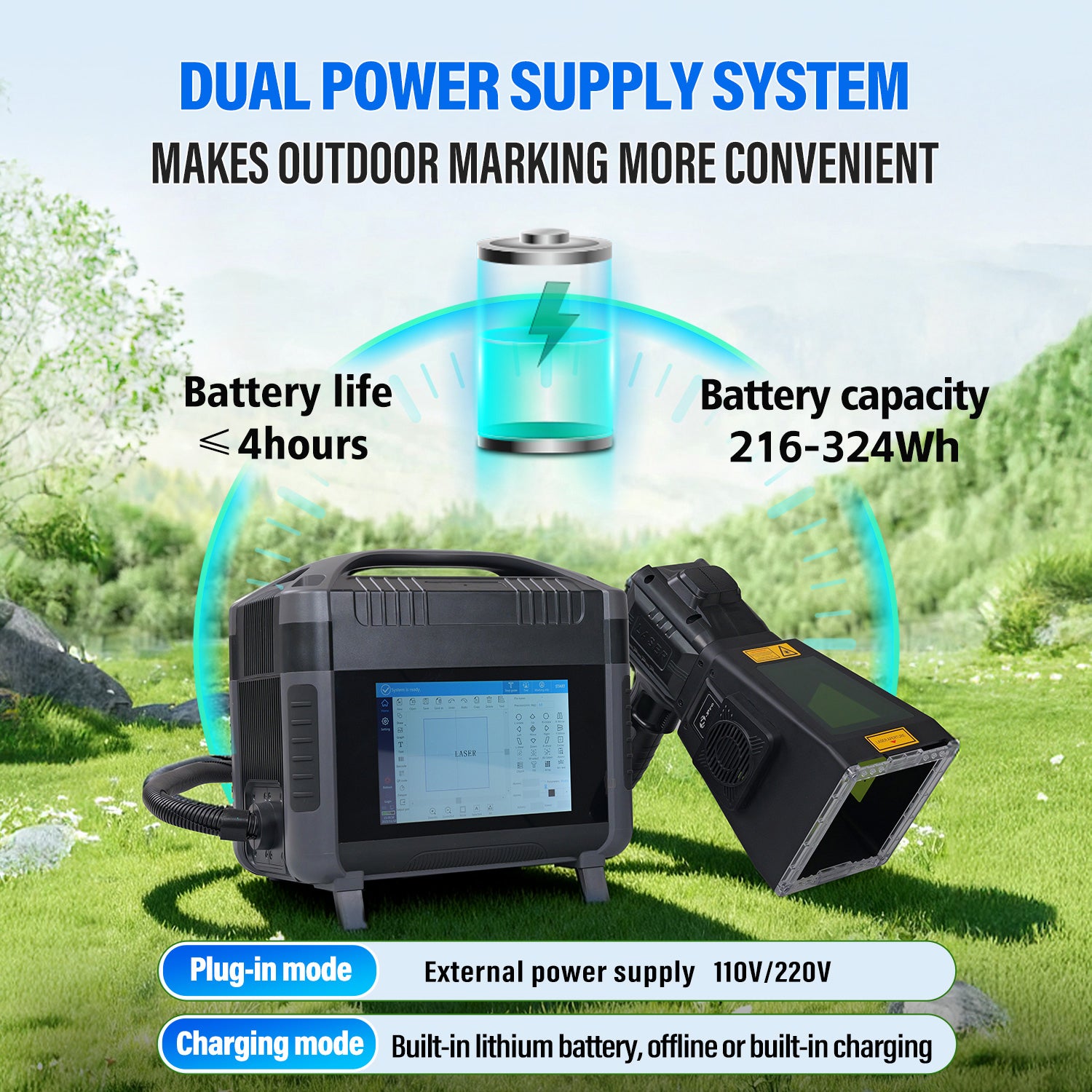

Dual power supply: plug-in (110V/220V) and rechargeable built-in lithium battery
Up to 4 hours of battery life for outdoor use
High-speed marking of up to 7000mm/s
Precision marking with a repeat positioning accuracy of 0.01mm

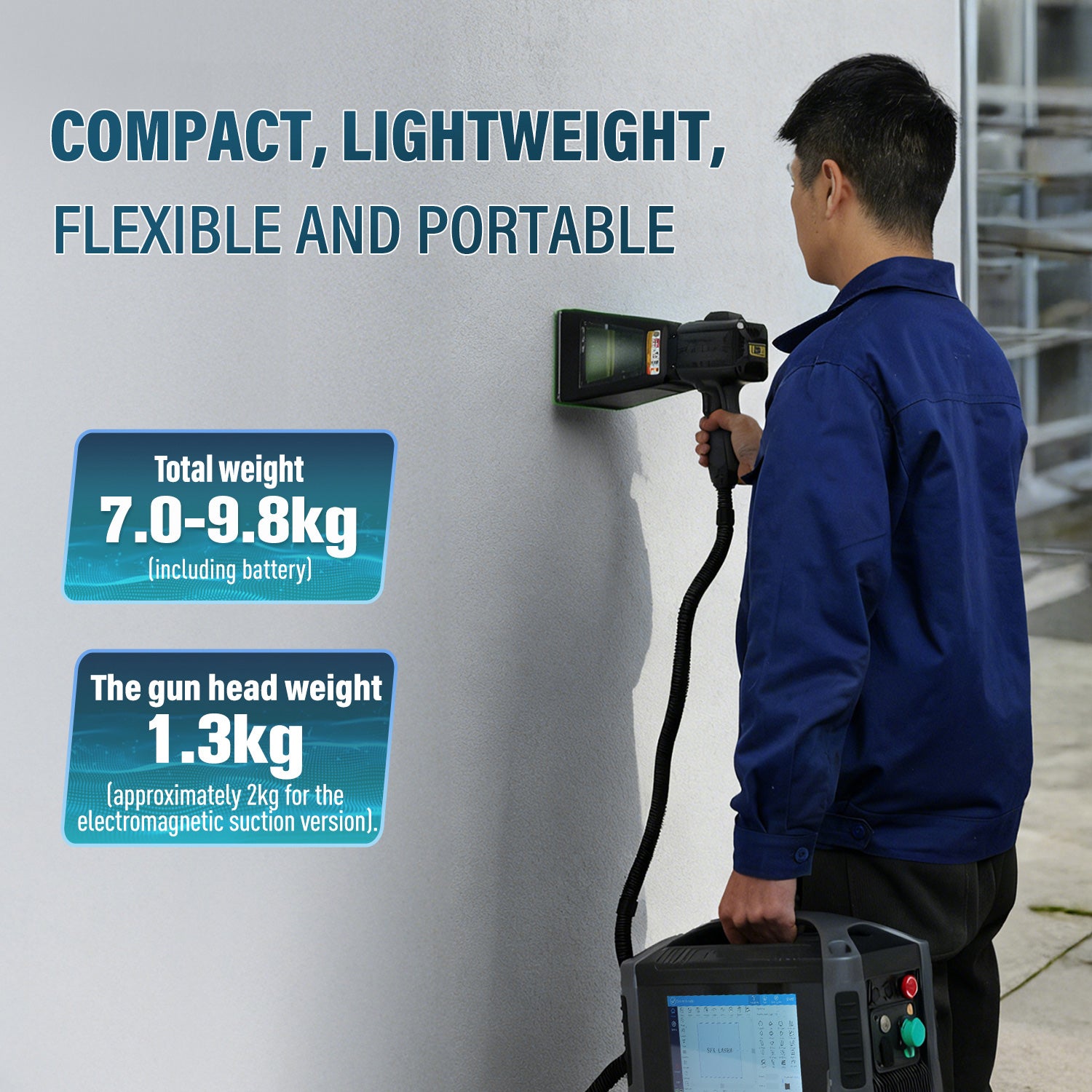

Compact design with a weight range of 7.0–9.8kg
Equipped with an OD4+ laser protective cover for safety

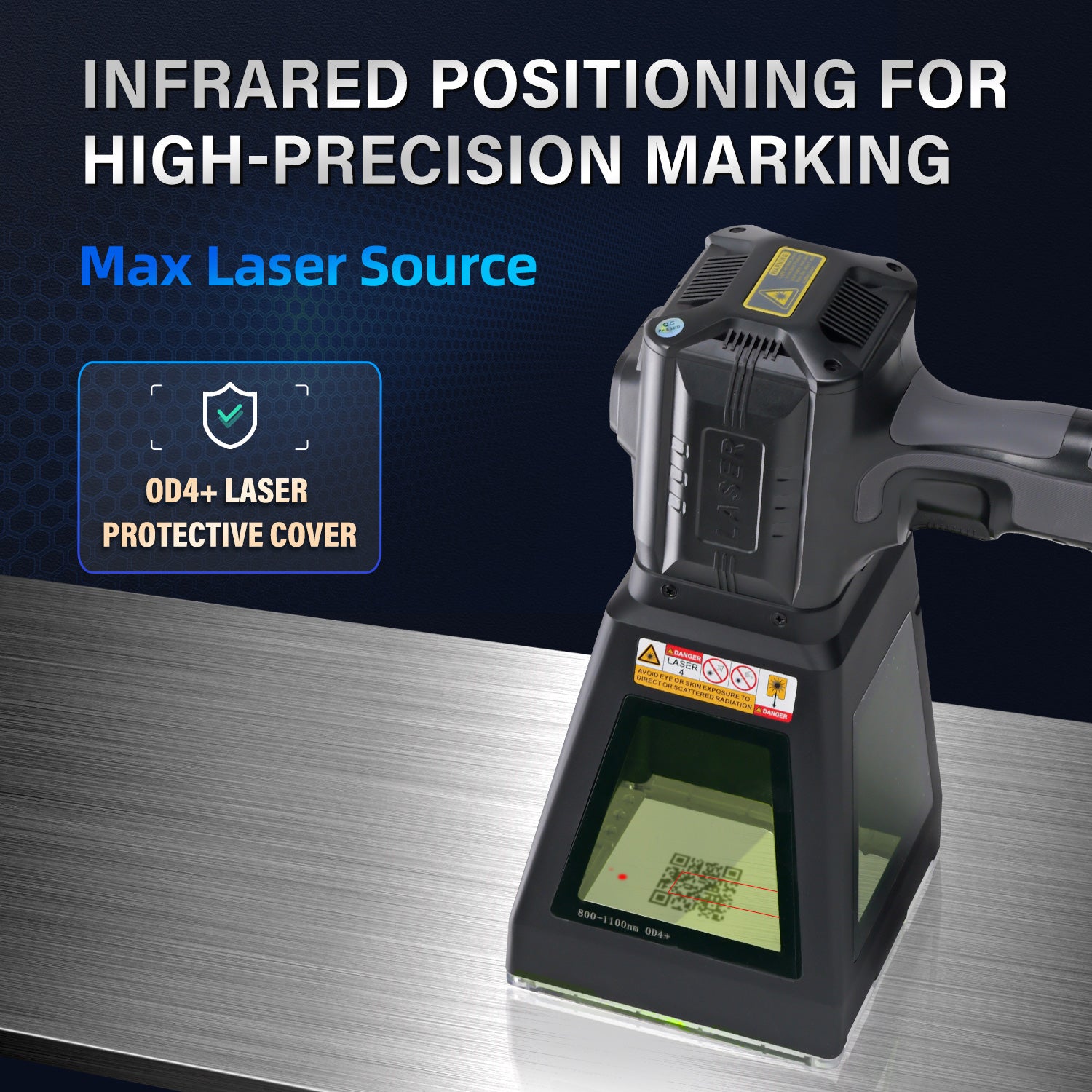

Infrared positioning system for high-precision marking

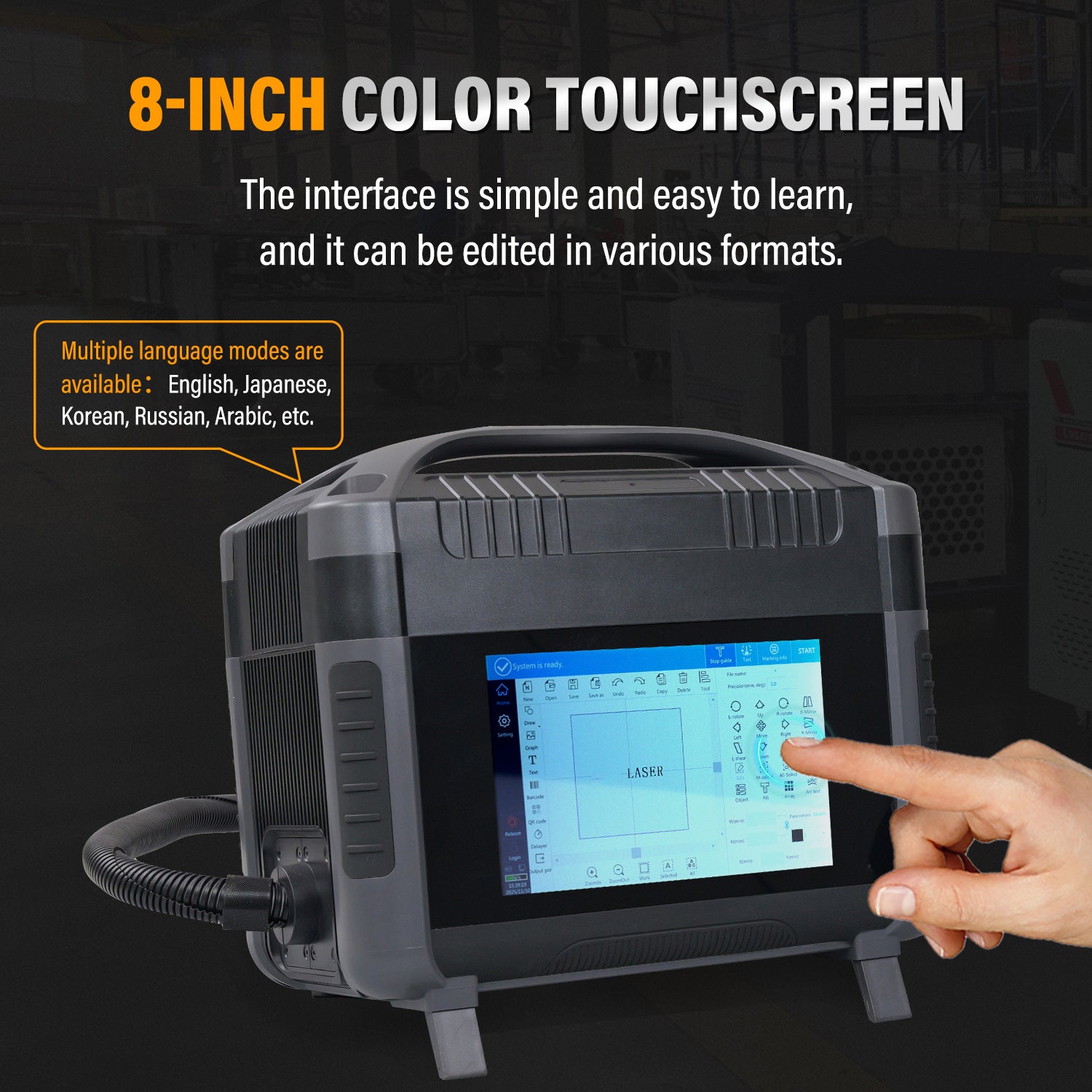

8-inch color touchscreen with an intuitive interface
Supports multiple languages including English, Japanese, Korean, Russian, Arabic, and more
Linux-based system with an 8-core processor for stability and fast response

Applications

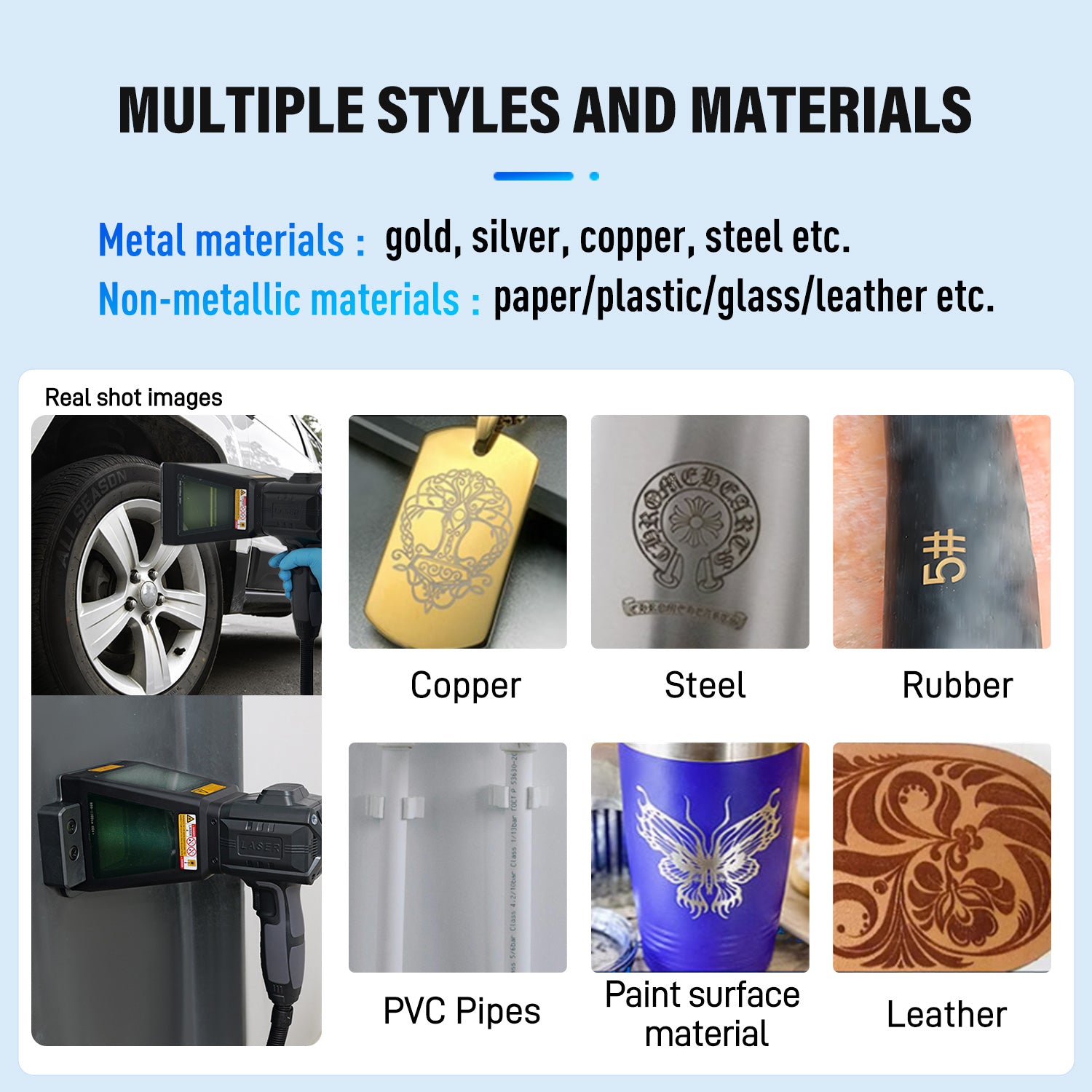

Pro model portable laser marking machine is suitable for marking a wide range of materials:

Metal Materials: Gold, silver, copper, steel, etc.
Non-metallic Materials: Paper, plastic, leather, and more
Ideal for applications such as trademarks, barcodes, logos, serial numbers, QR codes, and text engraving.

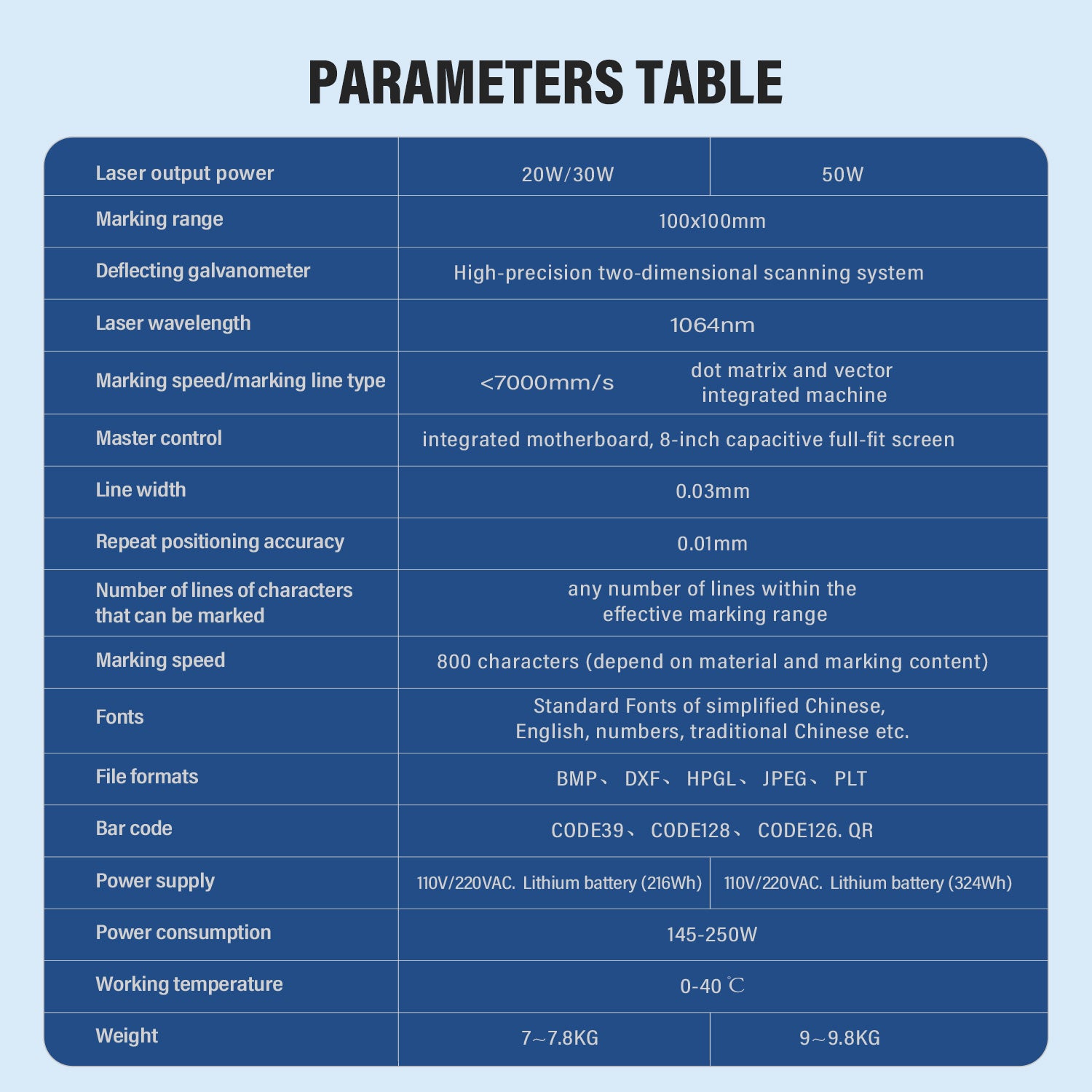

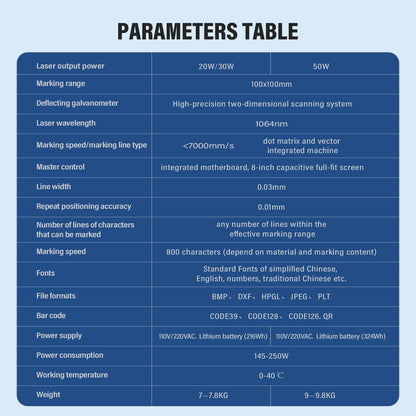

Product Parameters

Laser Output Power: 20W, 30W, 50W
Marking Range: 100×100mm
Deflecting Galvanometer: High precision two-dimensional scanning system
Marking Speed / Marking Line Type: <7000mm/s, dot matrix and vector integrated machine
Line Width: 0.03mm
Repeat Positioning Accuracy: 0.01mm
Marking Content Capacity: Any number of lines within the effective marking range
Marking Speed: 800 characters (depending on material and marking content)
Fonts Supported: Simplified Chinese, English, numbers, traditional Chinese, etc.
File Formats Supported: BMP, DXF, HPGL, JPEG, PLT
Barcode Formats Supported: CODE39, CODE128, CODE126, QR
Power Supply: 110V/220VAC, Lithium battery (216Wh/324Wh)
Power Consumption: 145–250W
Working Temperature: 0–40°C
Weight: 7.0–7.8kg (20W/30W), 9.0–9.8kg (50W)
