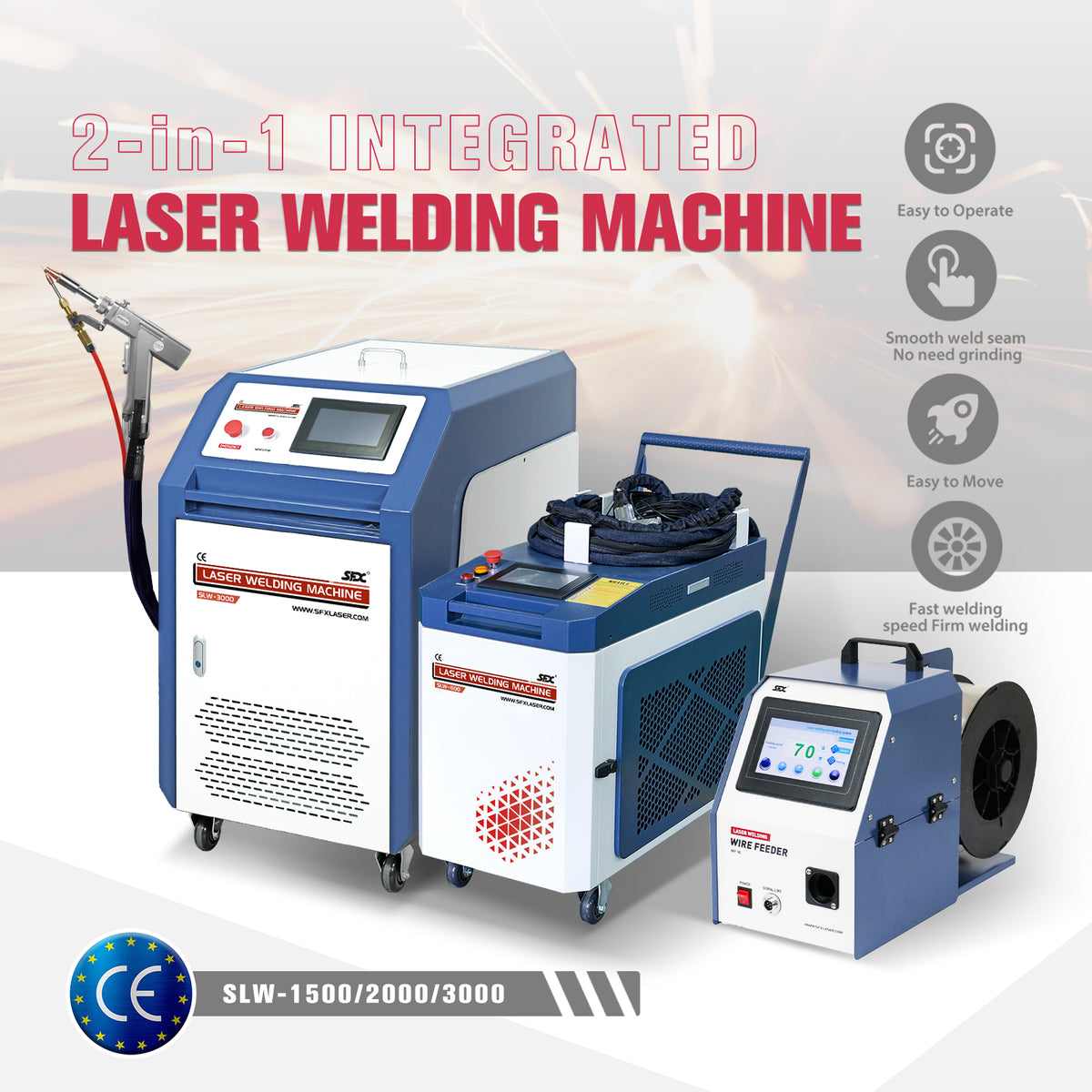

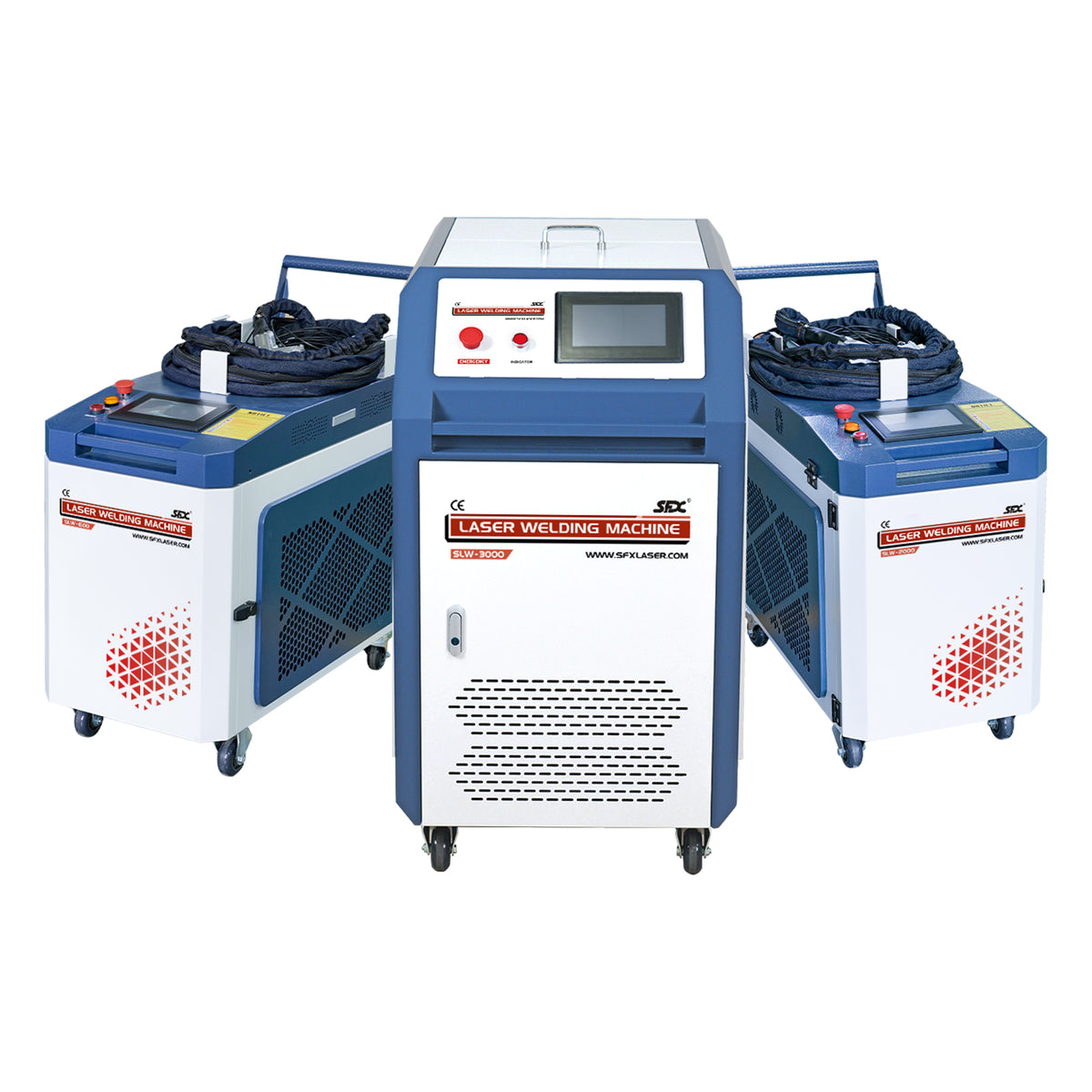

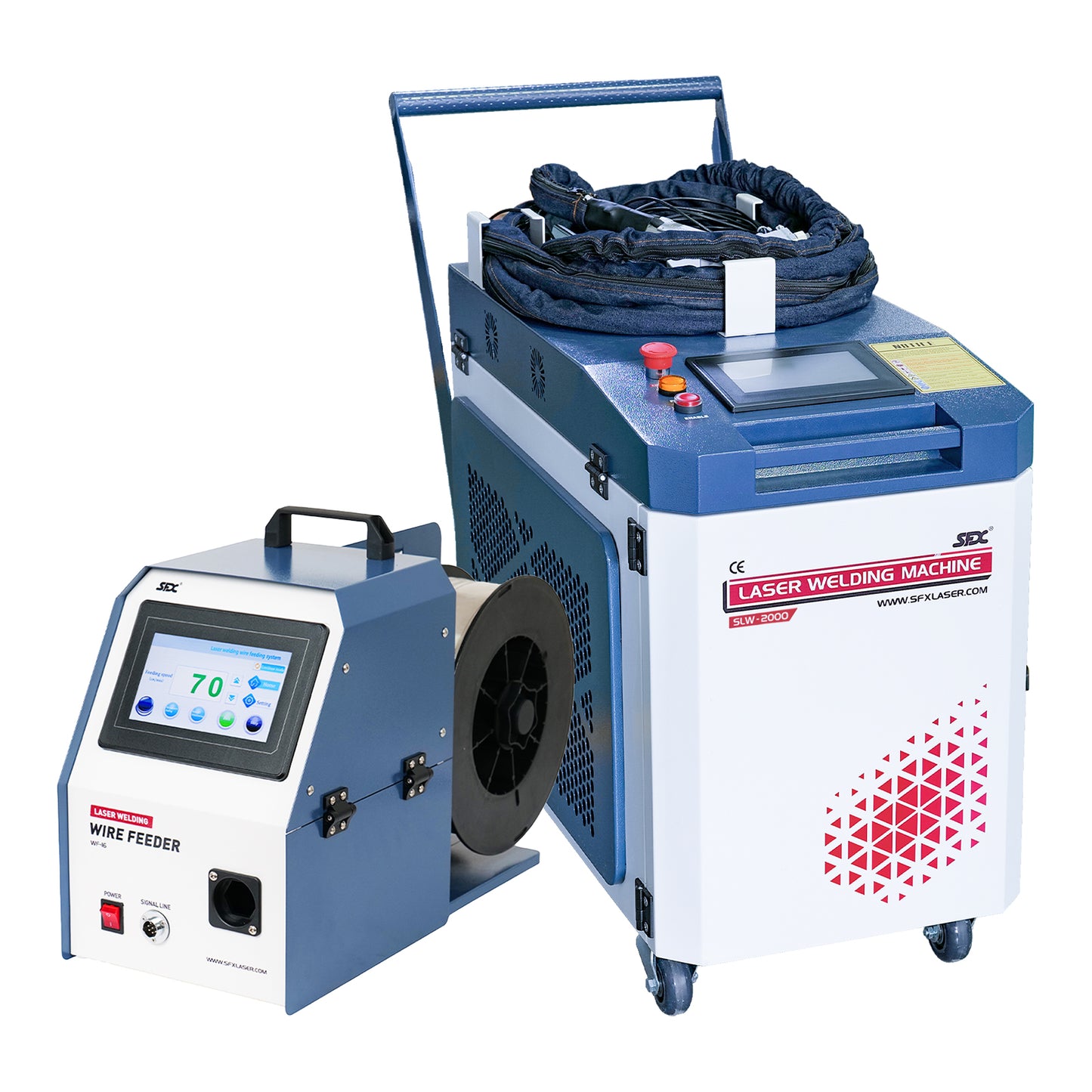

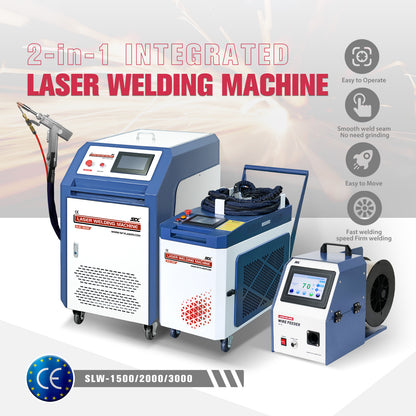

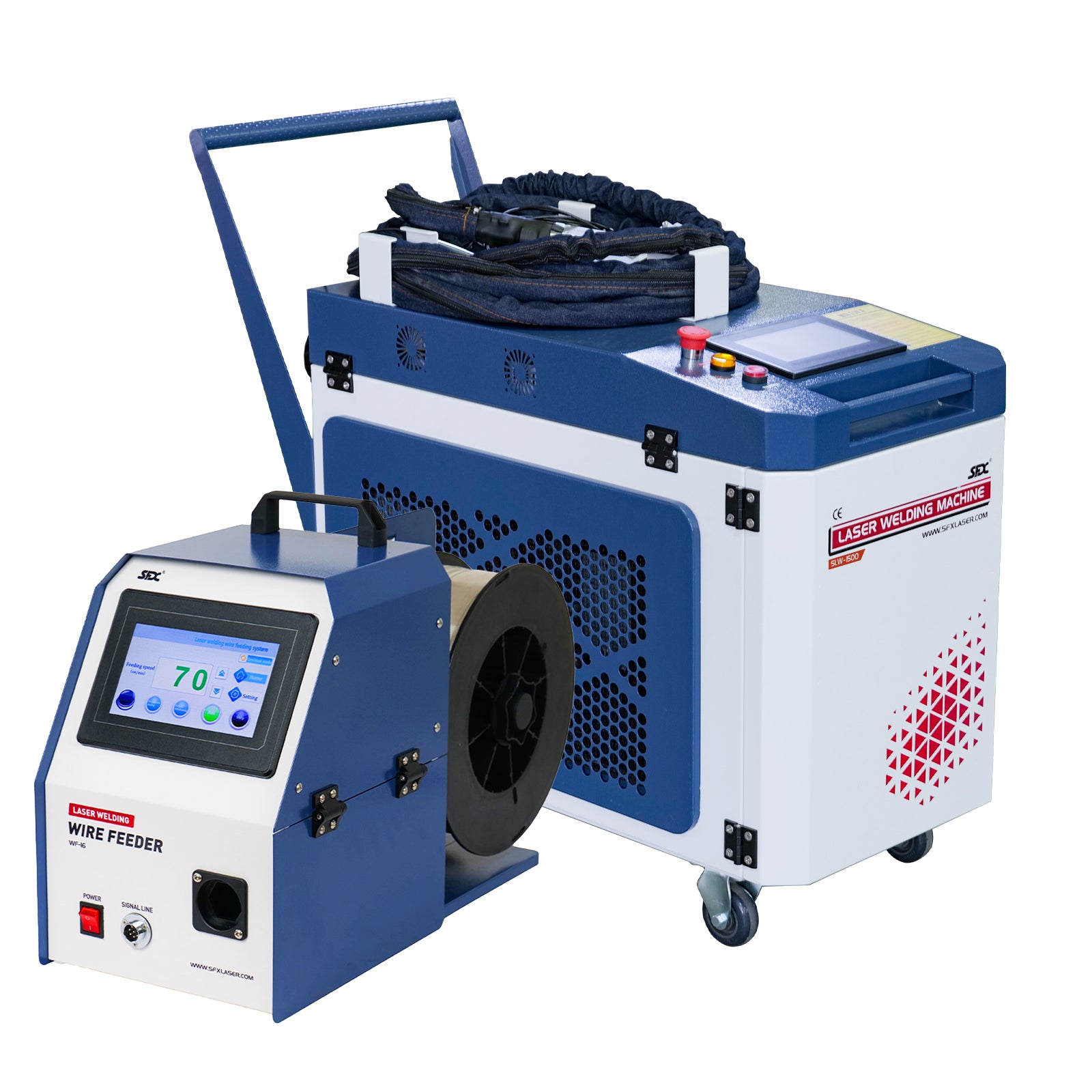

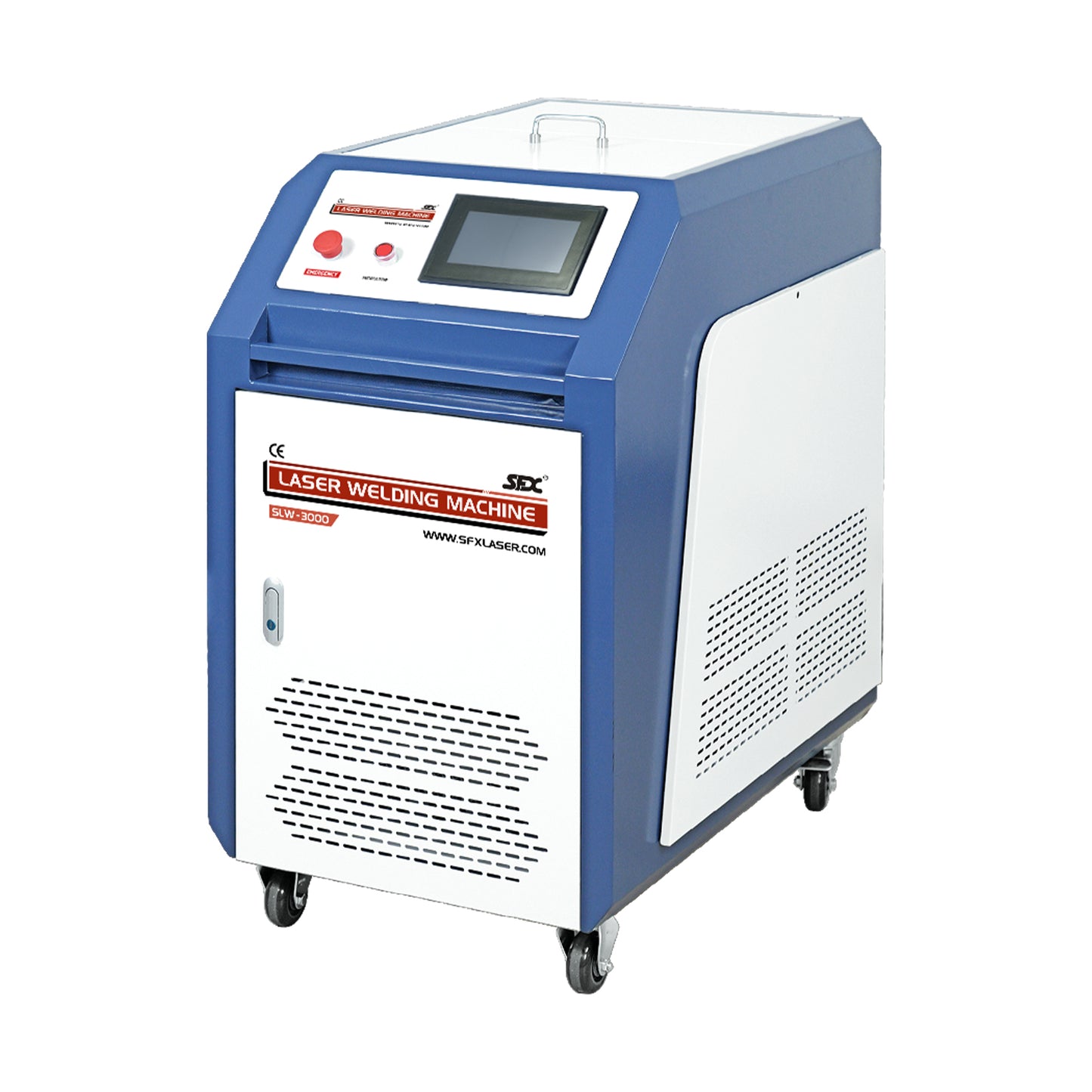

Clyertek 1500W 2000W 3000W Laser Welding Machine 2-in-1 Water-cooled Metal Laser Welder

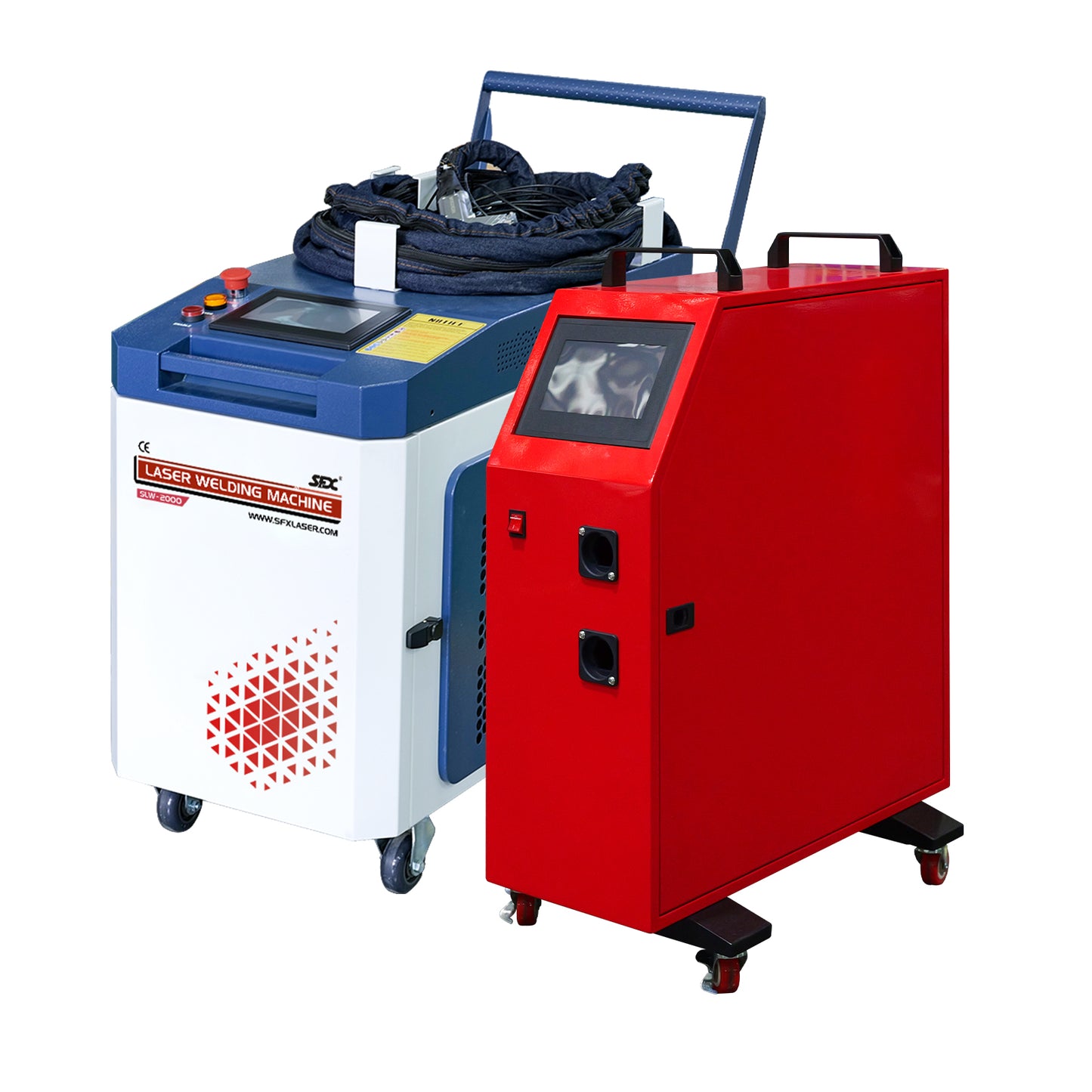

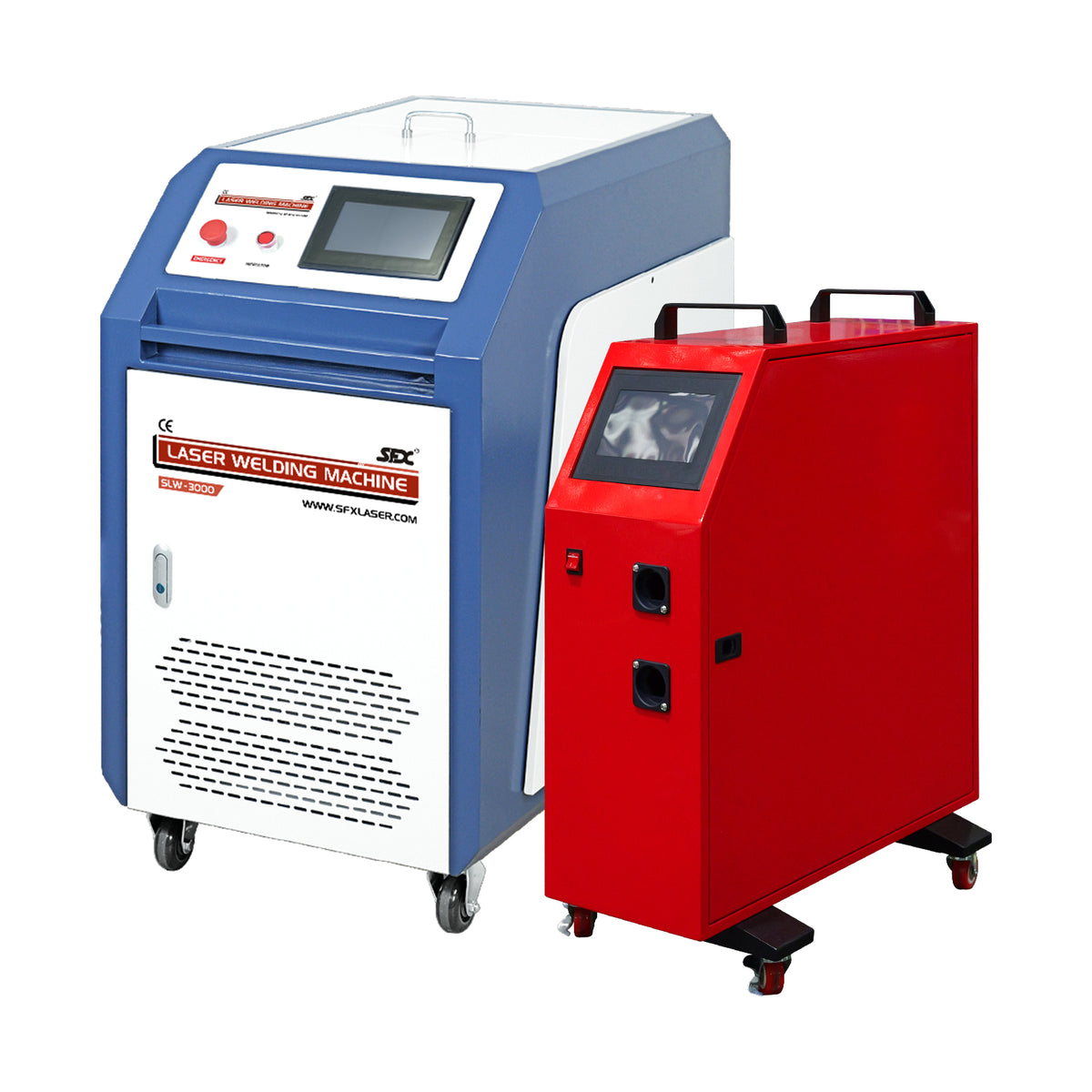

SLW-1500, SLW-2000, SLW-3000 2-in-1 Laser Welding Machine for Metal (Stainless Steel, Aluminum, etc) and Weld Seam Cleaning. Dual Wire Feeder Optional.

Key Highlights

• 2-in-1 Laser Welding & Seam Cleaning Function
• 1500W / 2000W / 3000W High-Power Fiber Laser Options
• Lightweight Handheld Welding Head (Approx. 750g)
• Fast Welding Speed with Smooth and Strong Weld Seams
• MAX Fiber Laser Source & Automatic Wire Feeder Included
• Water-Cooled System for Stable Long-Term Operation

Product Features

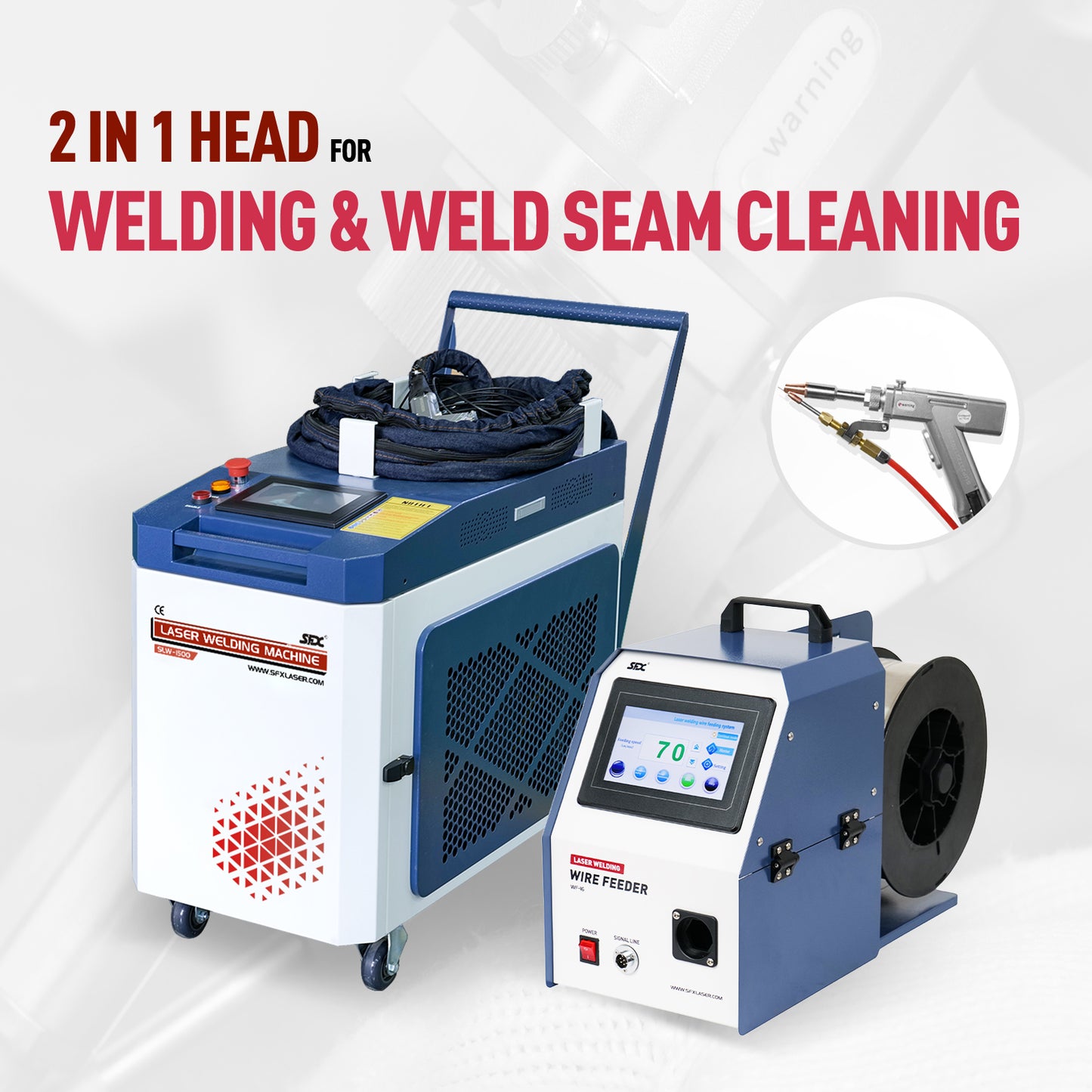

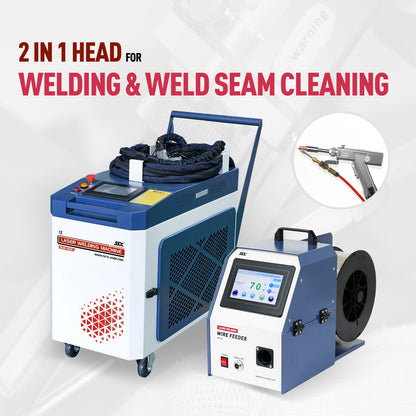

Integrated Welding and Seam Cleaning System

The machine combines laser welding and weld seam cleaning in one system. Users can switch between welding and cleaning modes after changing the nozzle, reducing equipment investment and improving workflow efficiency.

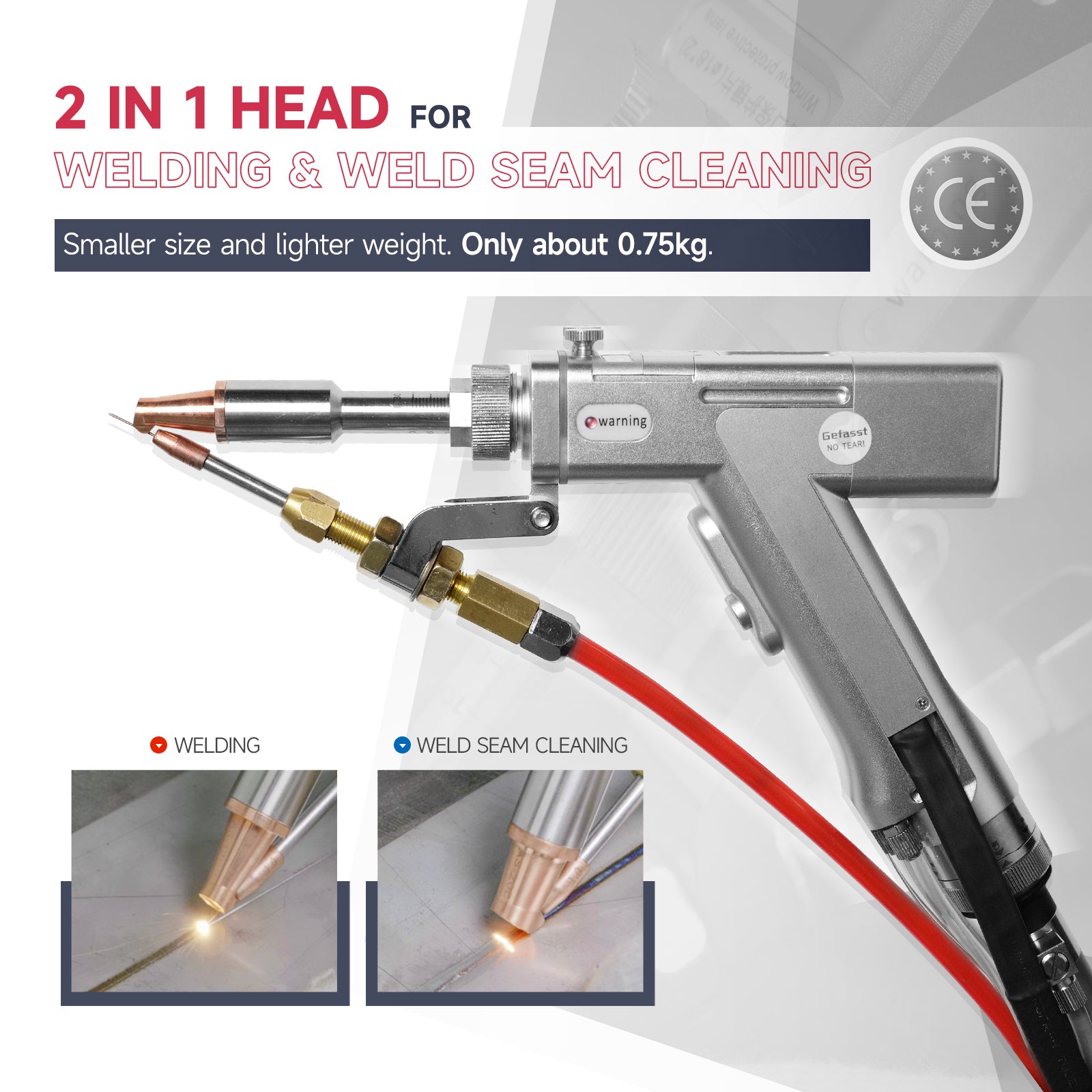

Lightweight Ergonomic Welding Head

The handheld welding head weighs approximately 750g, allowing operators to weld from different angles with less fatigue. The integrated design also helps improve reliability.

Stable Laser Performance

Equipped with MAX fiber laser source, the machine provides stable laser output, high efficiency, and reliable performance for continuous operation.

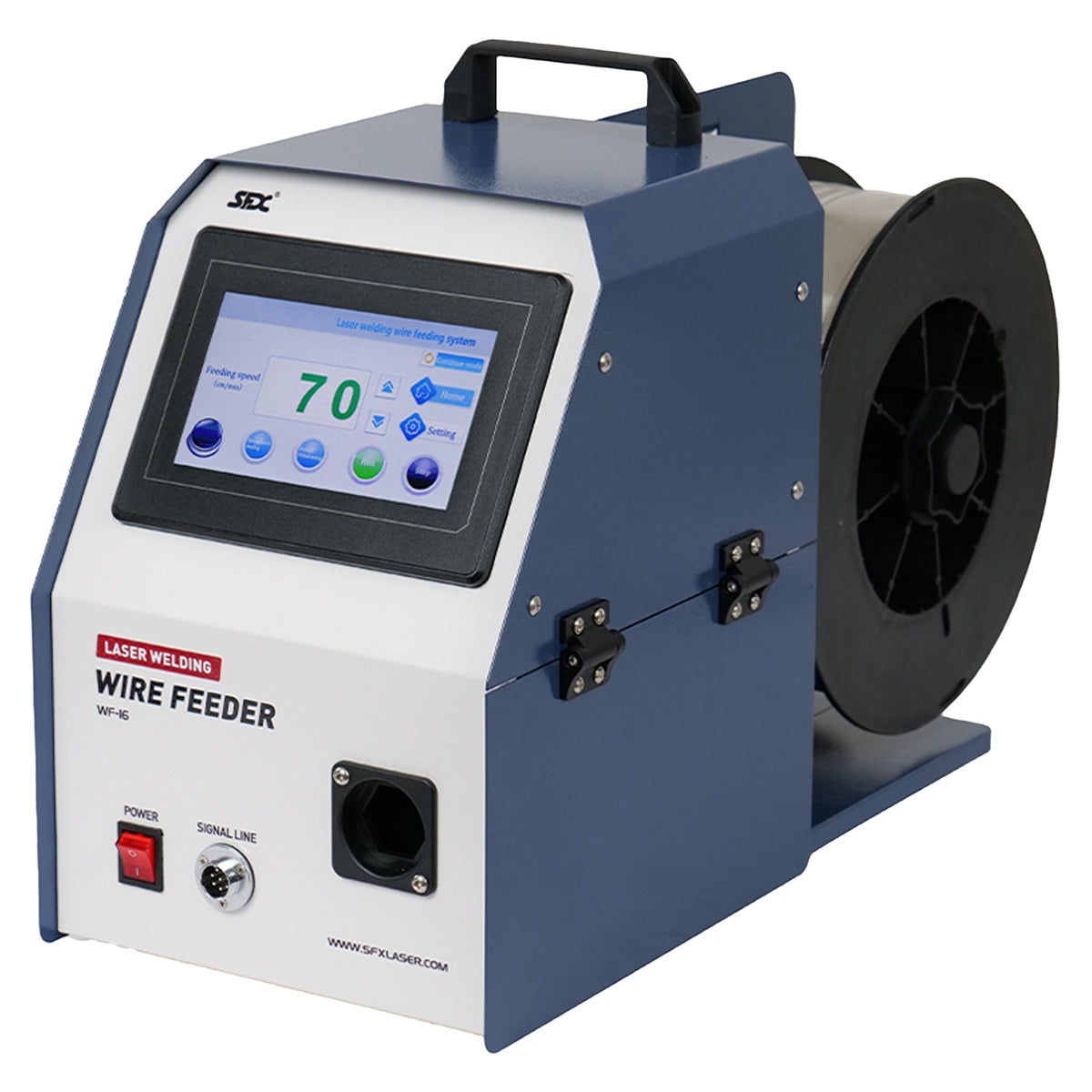

Automatic Wire Feeding System

The included automatic wire feeder provides consistent wire delivery and helps maintain uniform weld quality.

Effective Water-Cooled Design

The integrated water cooling system provides efficient heat dissipation and supports stable operation during extended welding tasks.

Intelligent Safety Protection

The welding head warning system detects lens contamination or damage and provides alerts to protect both the machine and workpiece.

Applications

The 2-in-1 Laser Welding Machine is suitable for welding various conductive metals and alloys, including:

• Stainless steel
• Carbon steel
• Aluminum
• Titanium
• Nickel alloys and other metal materials

Common applications include:

• Metal cabinets and kitchens
• Stainless steel doors and windows
• Guardrails and staircases
• Shelves and ovens
• Distribution boxes
• Stainless steel furniture
• Sheet metal fabrication industries

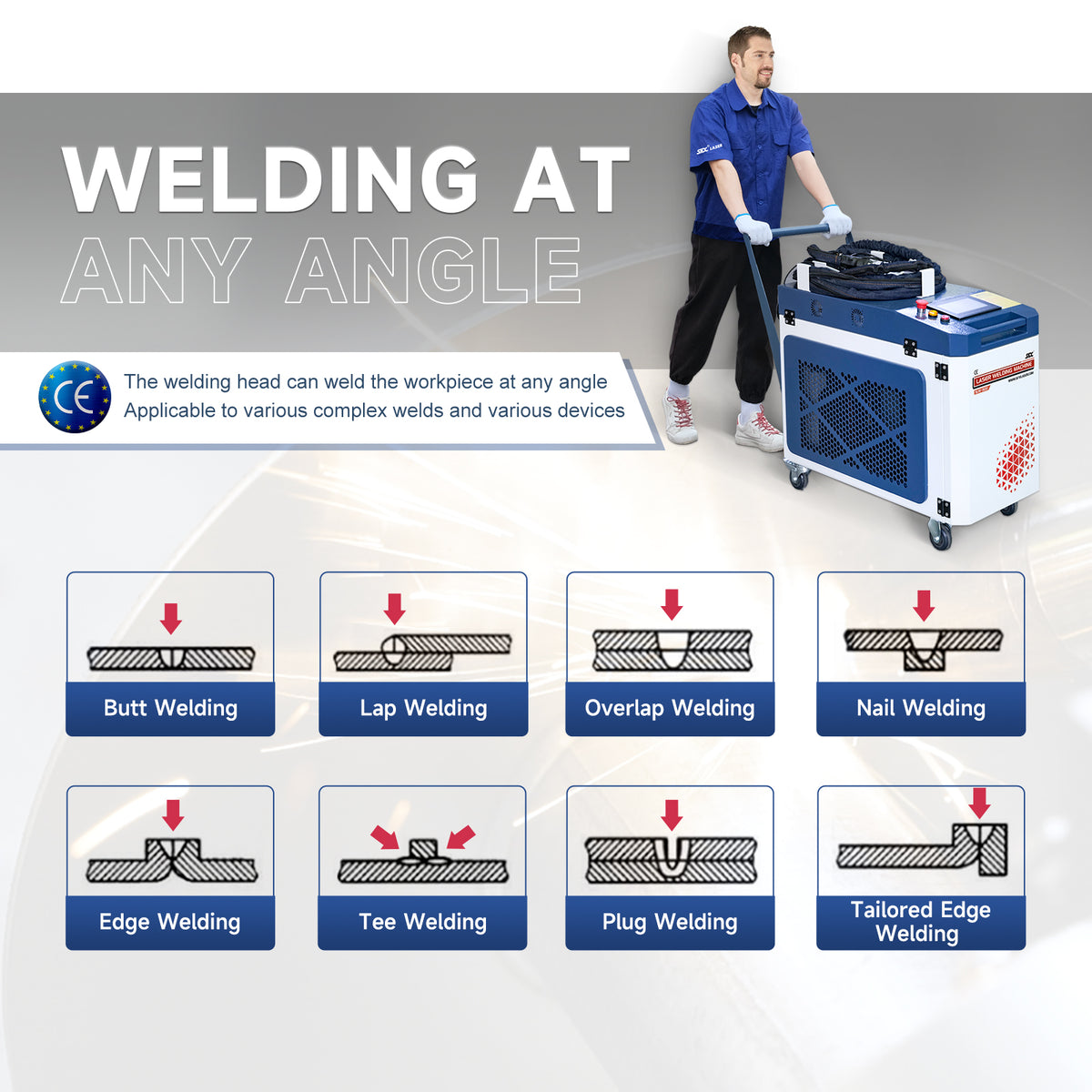

Supported welding methods:

• Butt welding
• Lap welding
• Overlap welding
• Edge welding
• Tee welding
• Plug welding
• Tailored edge welding

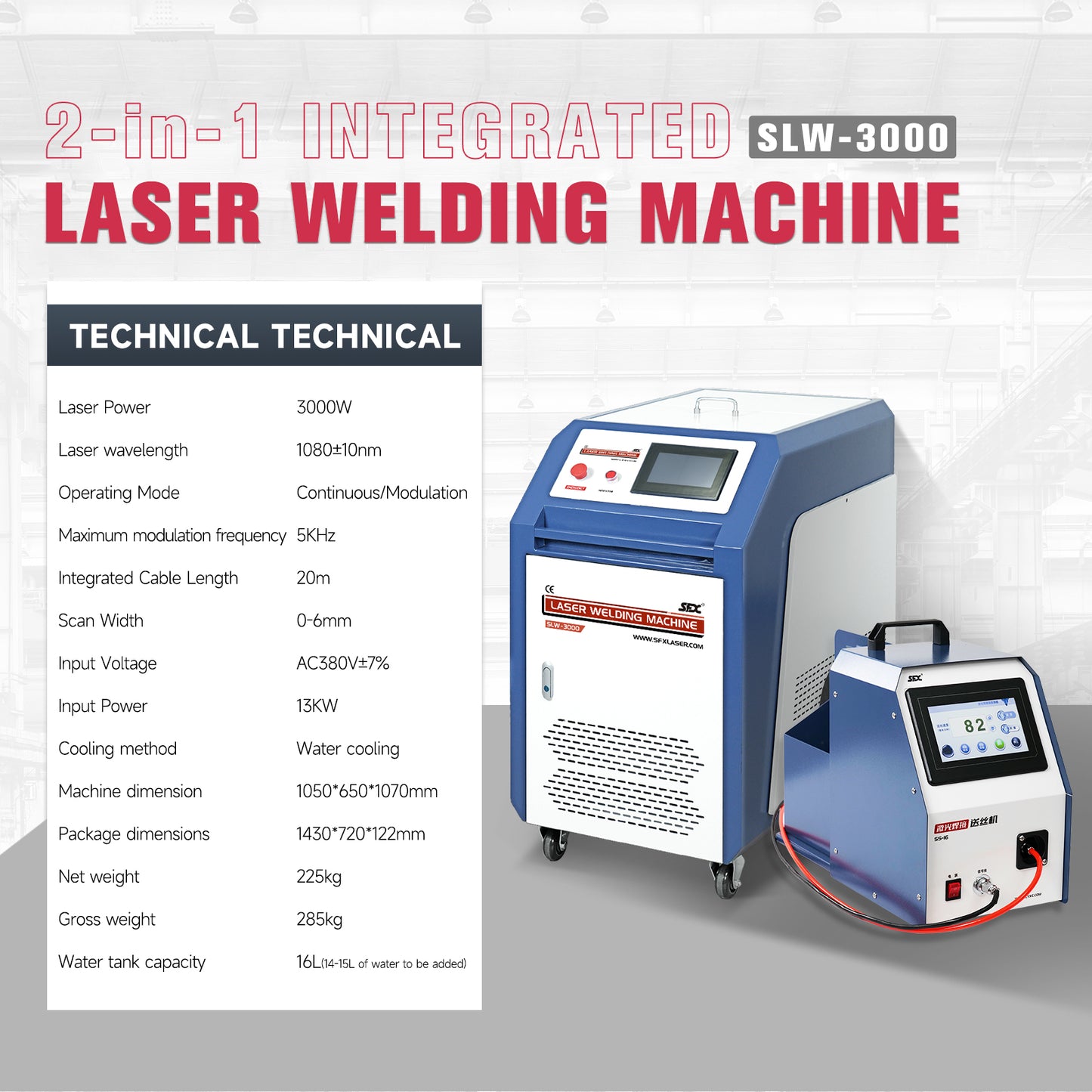

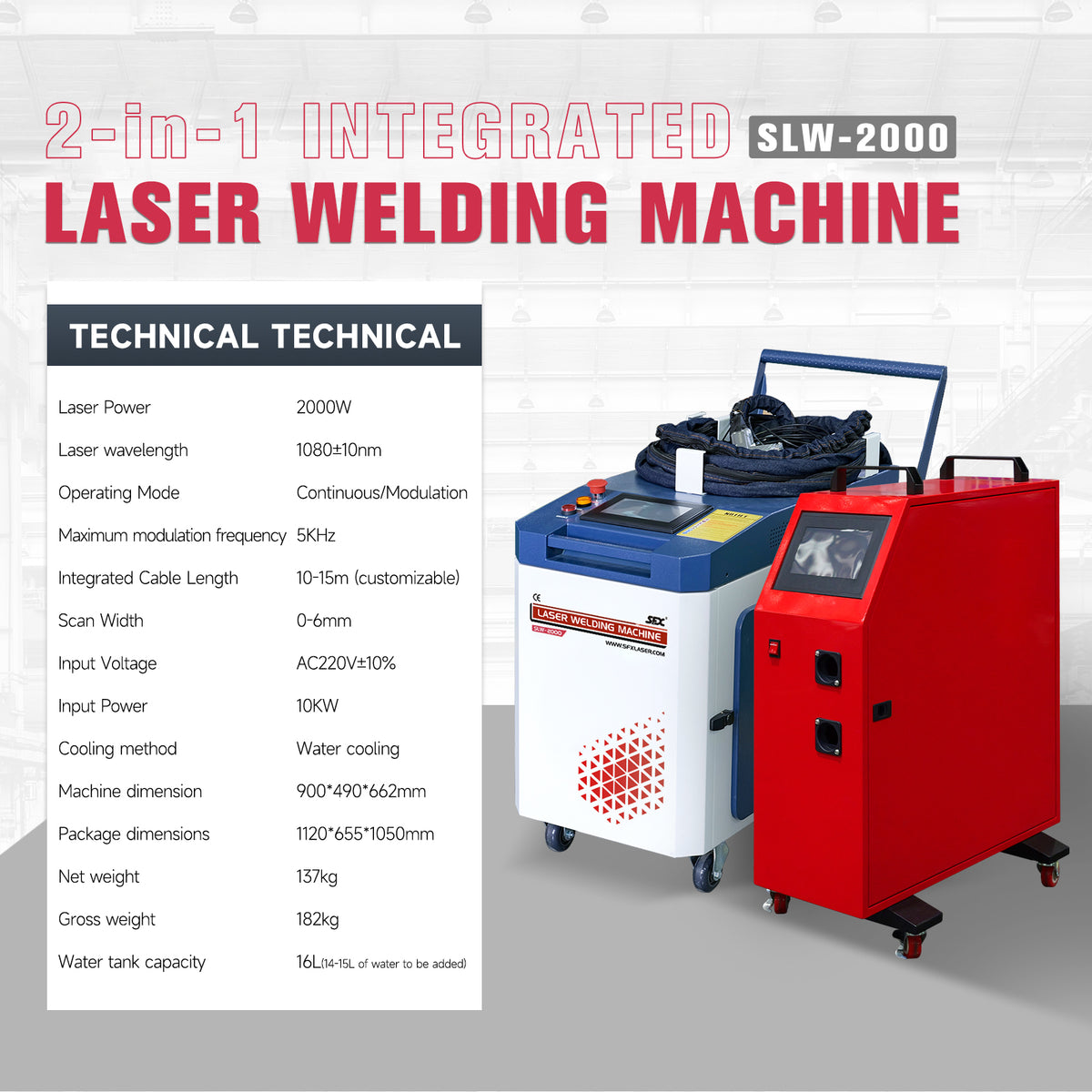

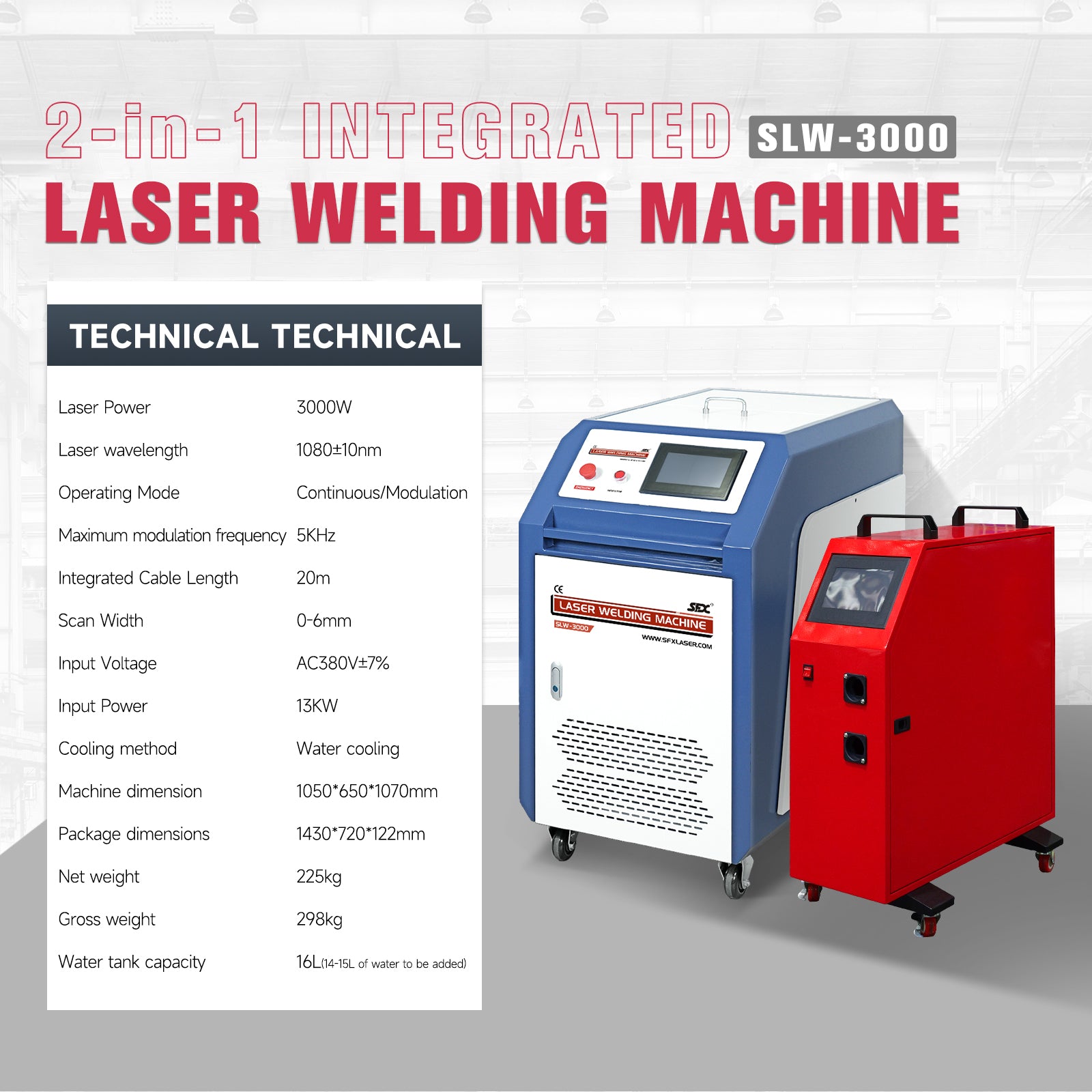

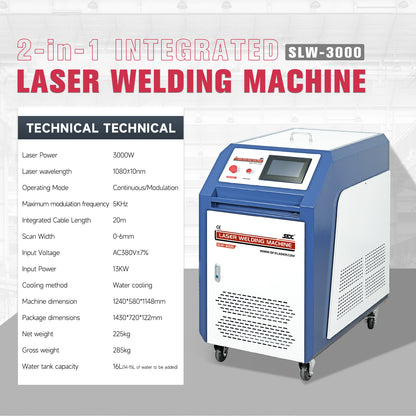

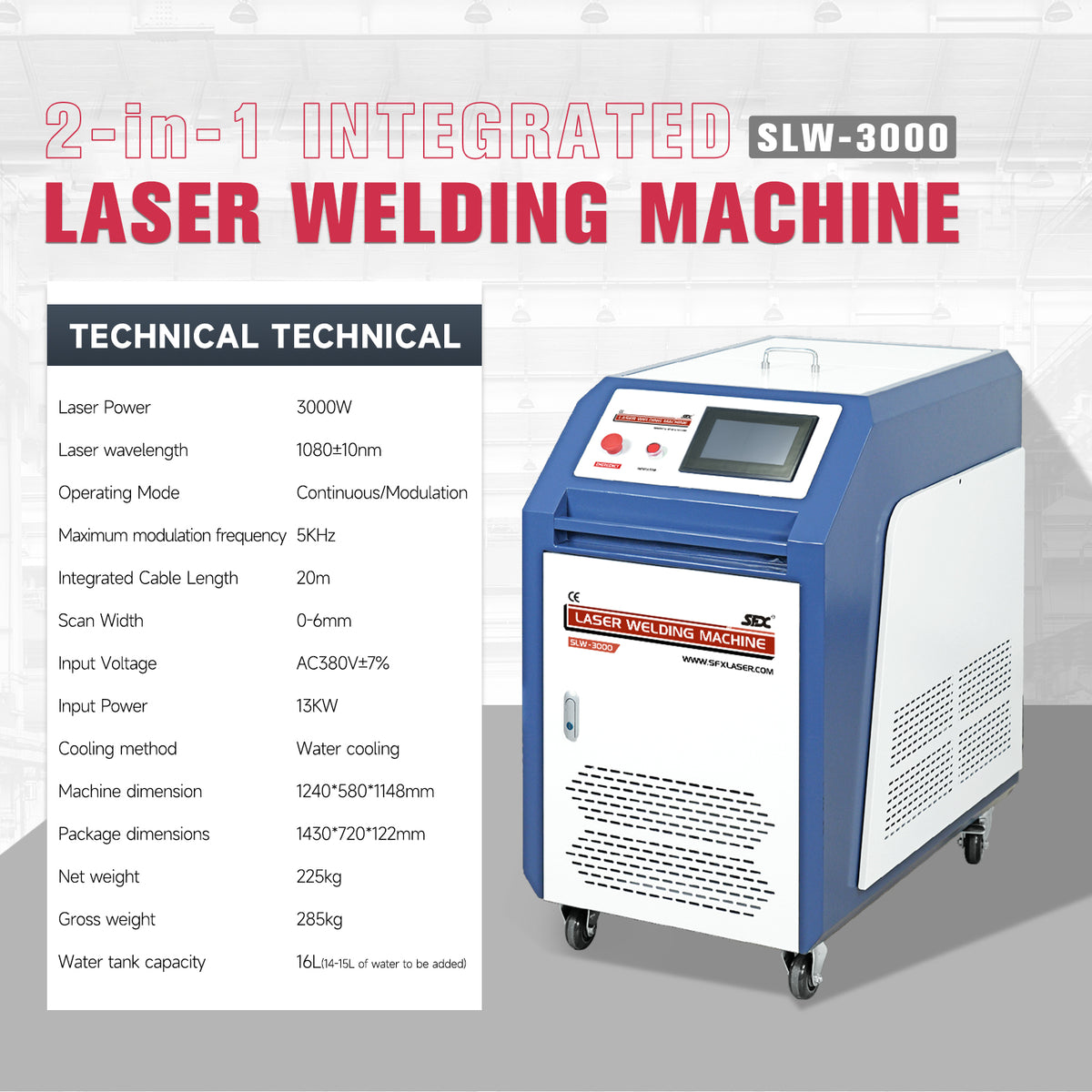

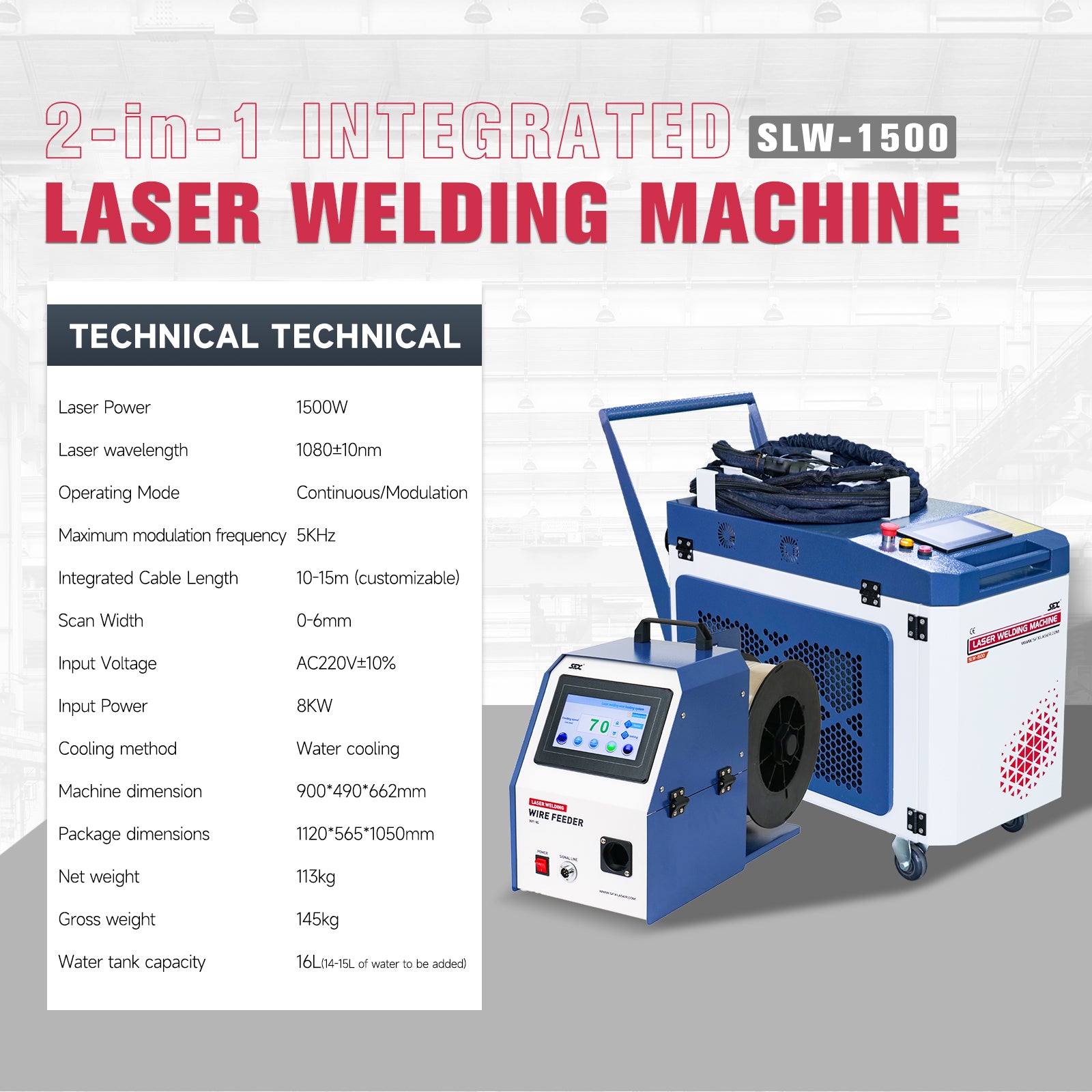

Specifications

• Model: SLW-1500 / SLW-2000 / SLW-3000
• Laser Wavelength: 1080±10nm
• Laser Power: 1500W / 2000W / 3000W
• Operation Mode: Continuous / Modulation
• Laser Cable Length: Standard 10-15m (customizable); 3000W standard 20m
• Max Modulation Frequency: 5KHz
• Scan Width: 0-6mm
• Cooling Method: Water-Cooled
• Visual Positioning: Red Dot
• Input Voltage: AC220V±10% 1-phase (1500W/2000W); AC380V±7% 3-phase (3000W, transformer included)
• Water Tank Capacity: 16L (14-15L water required)

Warranty & Service

• 1-year warranty for the complete laser welding machine
• 2-year warranty for the laser source
• Consumables are not covered under warranty
• After-sales service centers available in California and New York, USA
• Remote technical assistance for operation support
• Lifetime online technical support
• Free shipping to door
