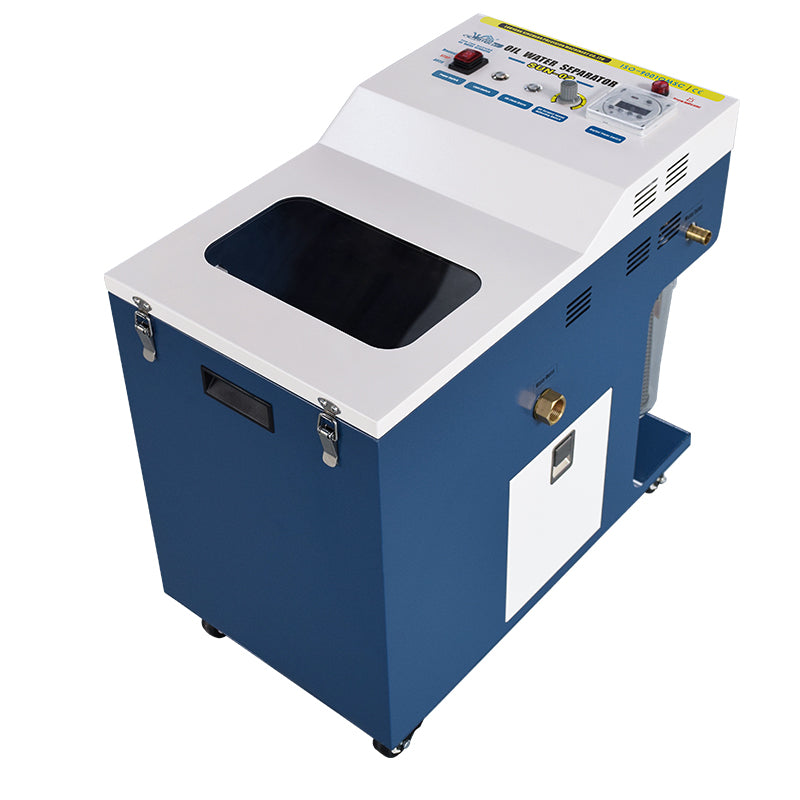

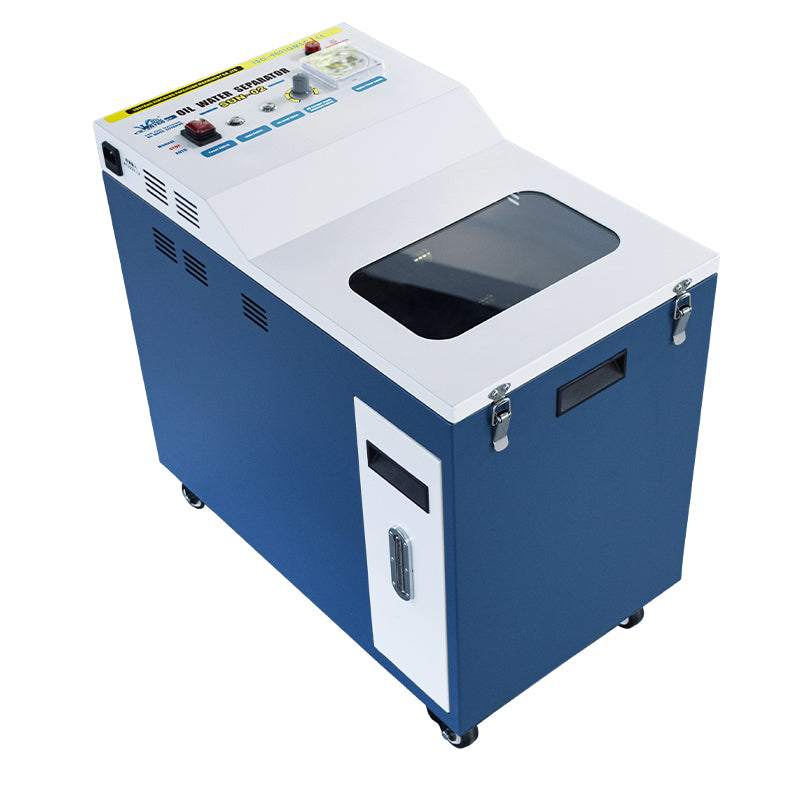

SUN-02 CNC Coolant Oil Separator Cutting Fluid Purification Machine Oil Skimmer

SUN-02 CNC Coolant Oil Separator is independently developed and manufactured for CNC machine tools, machining centers, and other industrial equipment.

Designed to remove floating oil from the surface of water-based coolants and cutting fluids, SUN-02 helps extend coolant service life, reduce tool wear, and maintain machining accuracy.

Key Highlights

• One Unit for Multiple Machines
  One SUN-02 oil skimmer can serve multiple CNC machine tools and machining centers, improving coolant maintenance efficiency.
• Easy to Move and Maintain
  The portable design allows easy movement between machines, while the convenient drainage structure simplifies routine maintenance.

Product Features

• Automatic Control and Timing
  SUN-02 supports adjustable circulation timing from 0 to 99 hours. Its automatic alarm and stop functions help simplify routine operation and maintenance.
• Adjustable Pump Speed
  Pump motor speed is steplessly adjustable from 0 to 90 rpm, allowing flexible operation according to working requirements.
• Efficient Coolant Oil Separation

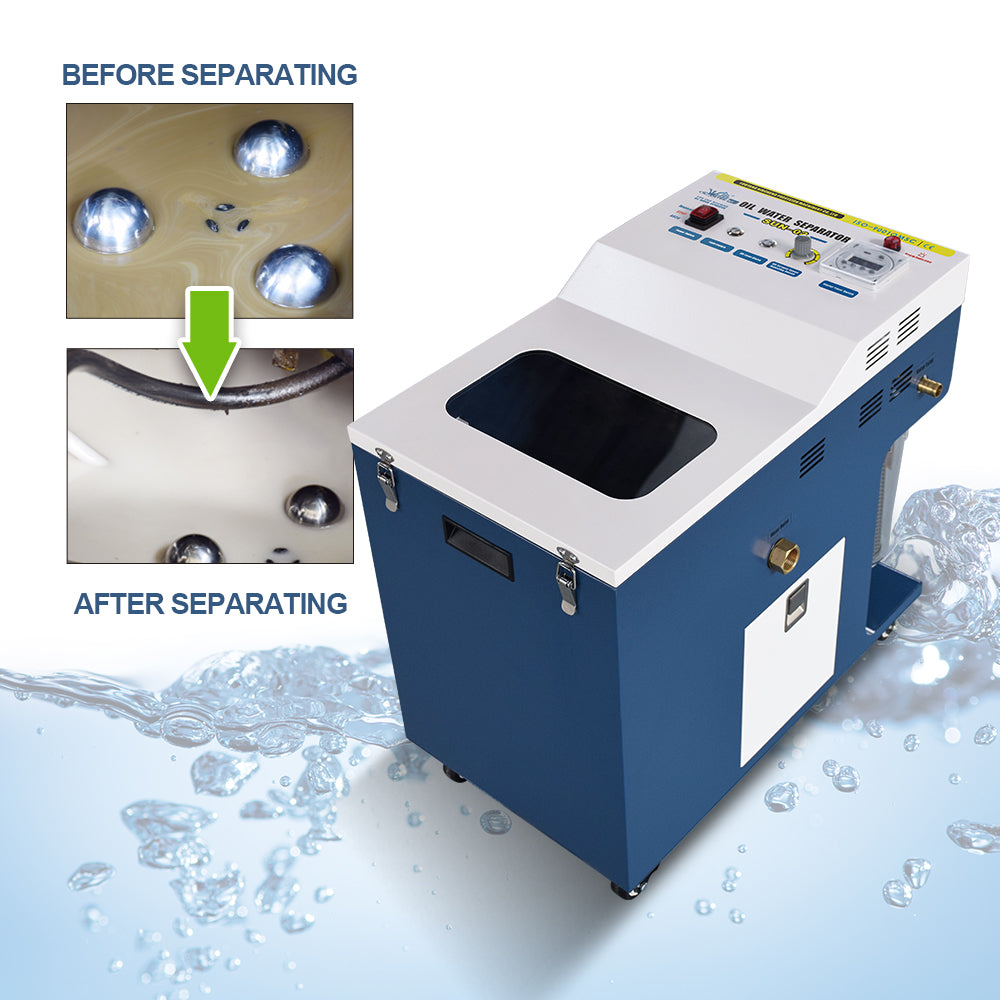

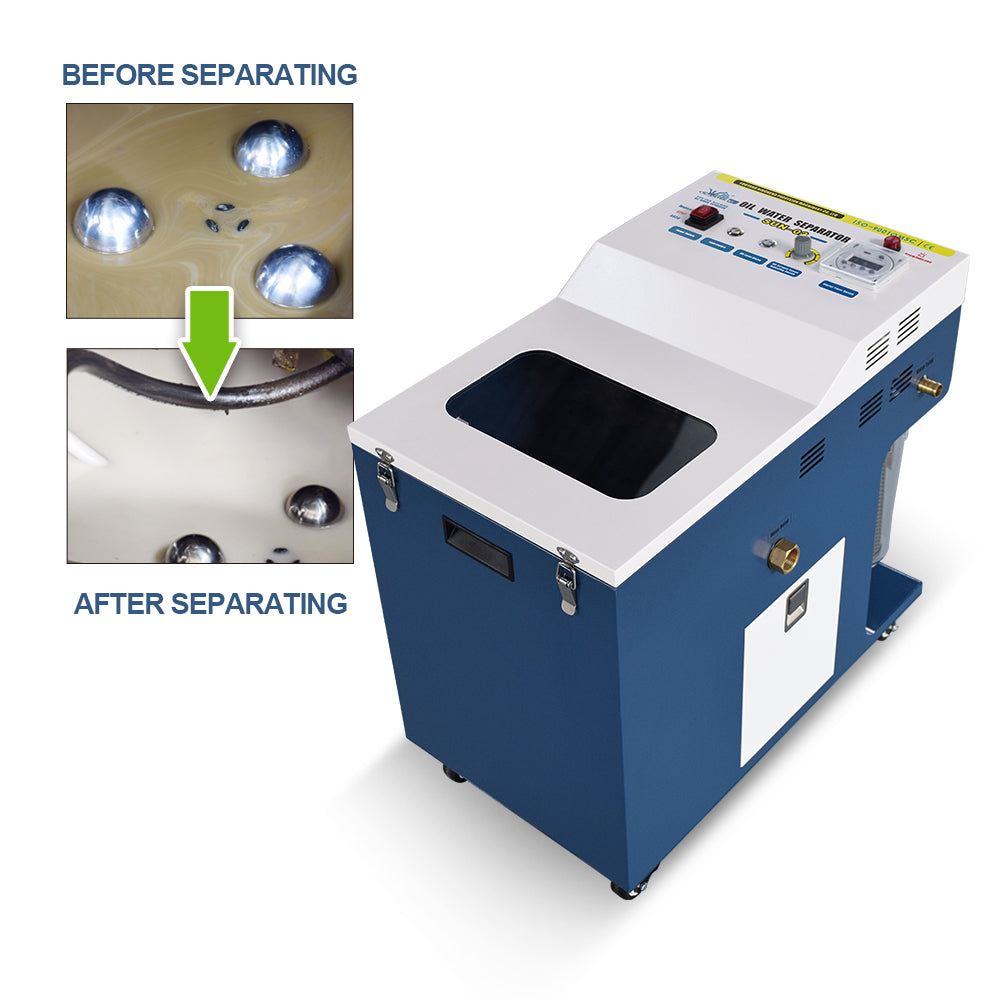

  SUN-02 removes floating oil from the surface of water-based coolants and cutting fluids. Regular oil removal helps extend coolant service life, reduce tool wear, and support consistent machining accuracy.

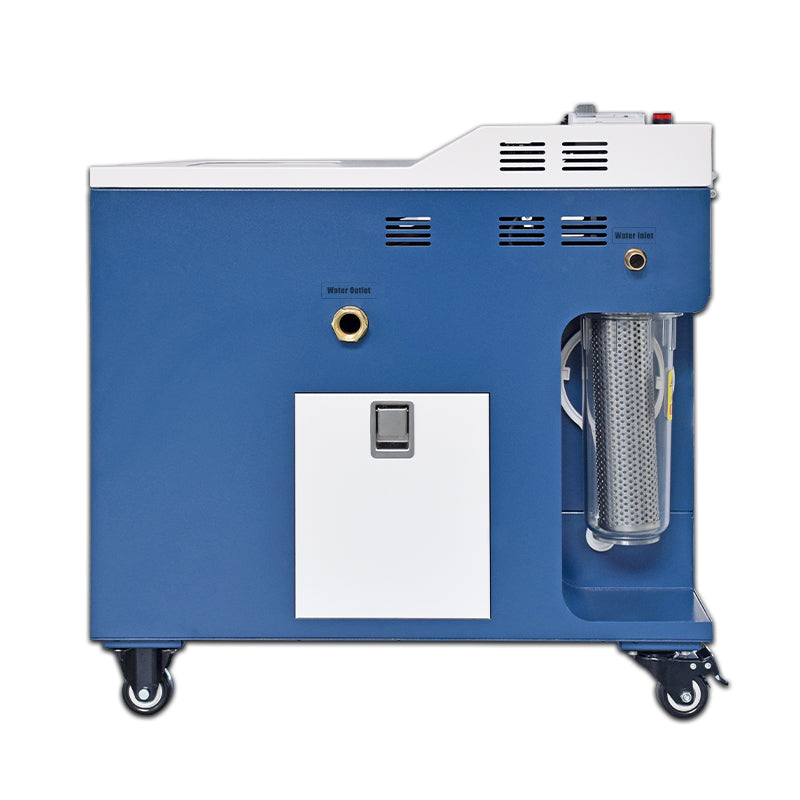

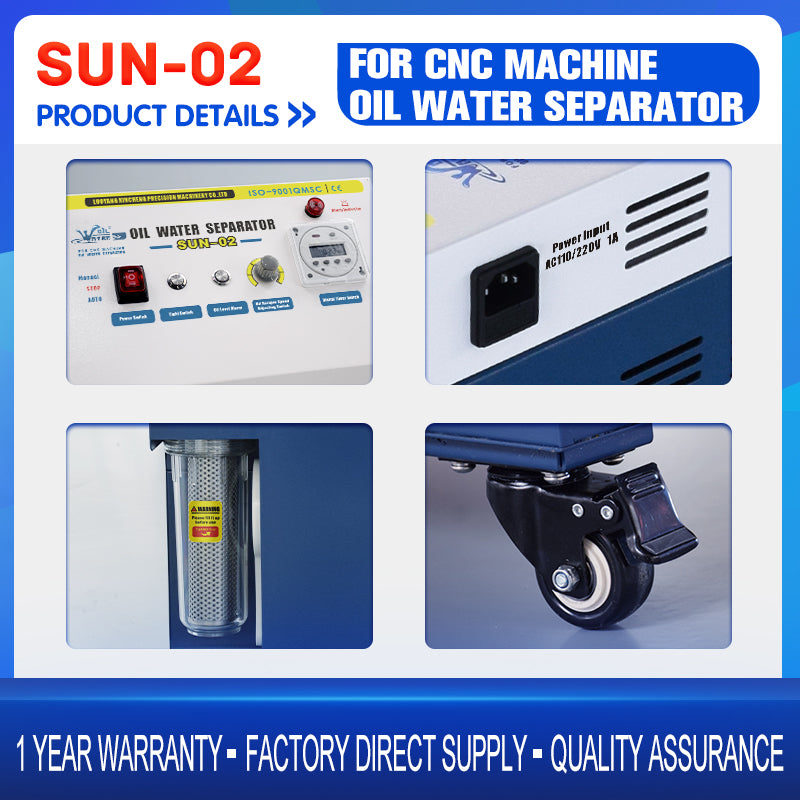

• Filter Bottle and Illuminated Observation Window
  Filter bottle and illuminated observation window make routine inspection and maintenance more convenient.
• Ozone Sterilization
  Integrated ozone sterilization function provides an additional feature for coolant maintenance.
• Convenient Drainage and Portable Design
  Convenient drainage structure simplifies routine maintenance. Its mobile design also allows one unit to be moved between compatible machine tools as needed.

Applications

The SUN-02 CNC Coolant Oil Separator is suitable for:

• Removing floating oil from coolant tanks in CNC machine tools
• Skimming surface oil from coolants used in machining centers
• Separating floating oil from other compatible water-based liquids and industrial fluids

Not Suitable For:

• Liquids containing grinding powder or wire-cutting debris
• Organic solvents
• Corrosive liquids containing acids or alkalis

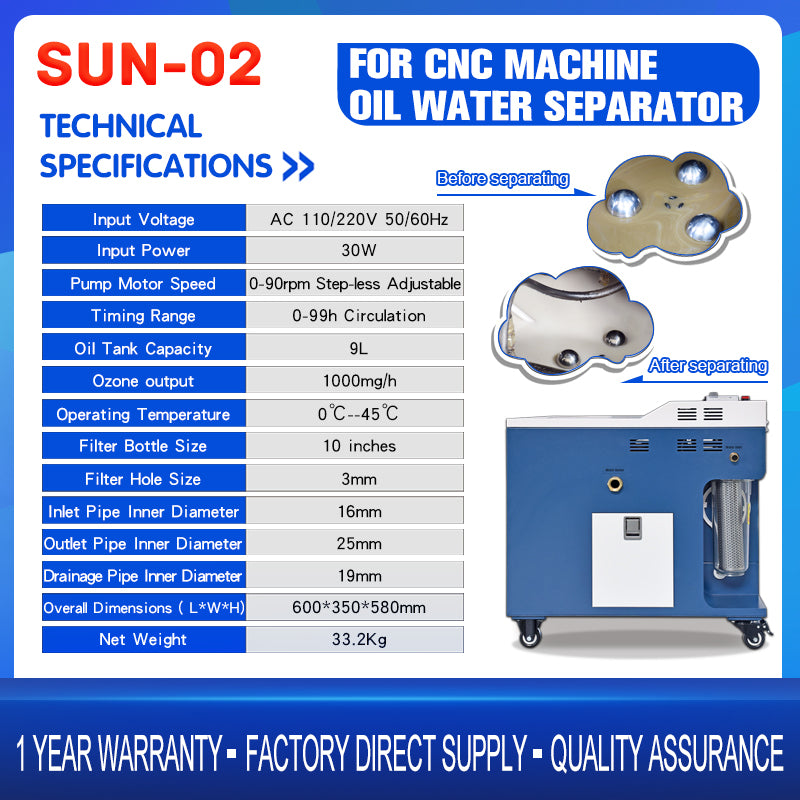

Technical Specifications

• Model: SUN-02
• Input Voltage: AC 220V / 110V
• Frequency: 50 / 60 Hz
• Timing Range: 0–99 hours
• Input Power: 30 W
• Oil Tank Capacity: 9 L
• Pump Motor Speed: 0–90 rpm, stepless adjustable
• Operating Temperature: 0°C–45°C
• Filter Bottle Size: 10 inches
• Filter Hole Size: 3 mm
• Inlet Pipe Inner Diameter: 16 mm
• Outlet Pipe Inner Diameter: 25 mm
• Drainage Pipe Inner Diameter: 19 mm
• Overall Dimensions: 600 × 350 × 580 mm
• Net Weight: 33.2 kg

Warranty and Service

• 1-year warranty for the machine. We are committed to providing quality products and dependable customer support.
• Lifetime online technical assistance for troubleshooting, operation, and maintenance guidance.

Shipping & Delivery

• Free shipping to your door.
• Factory direct supply with quality assurance.
