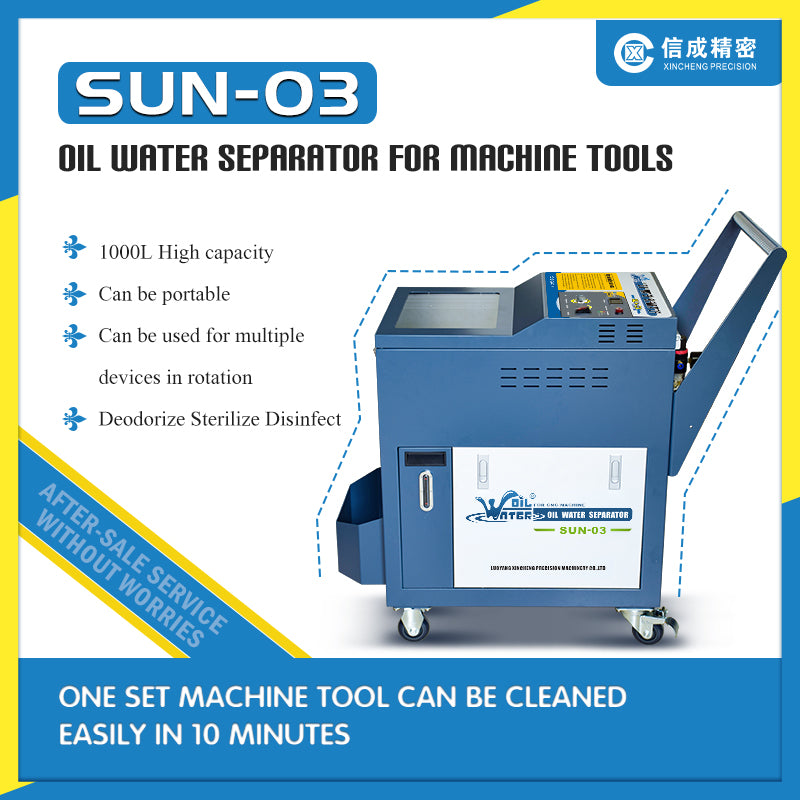

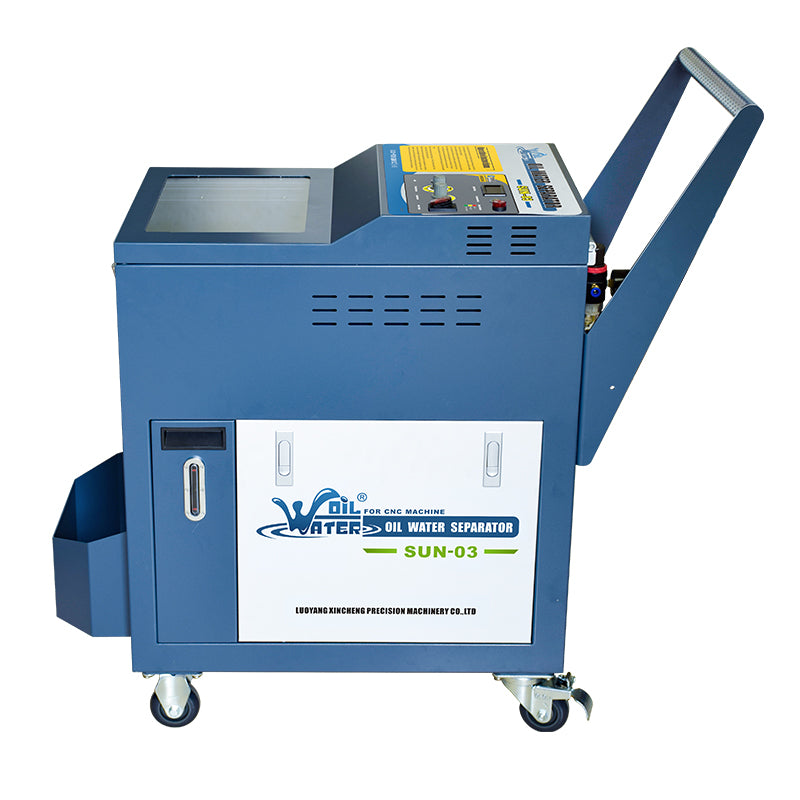

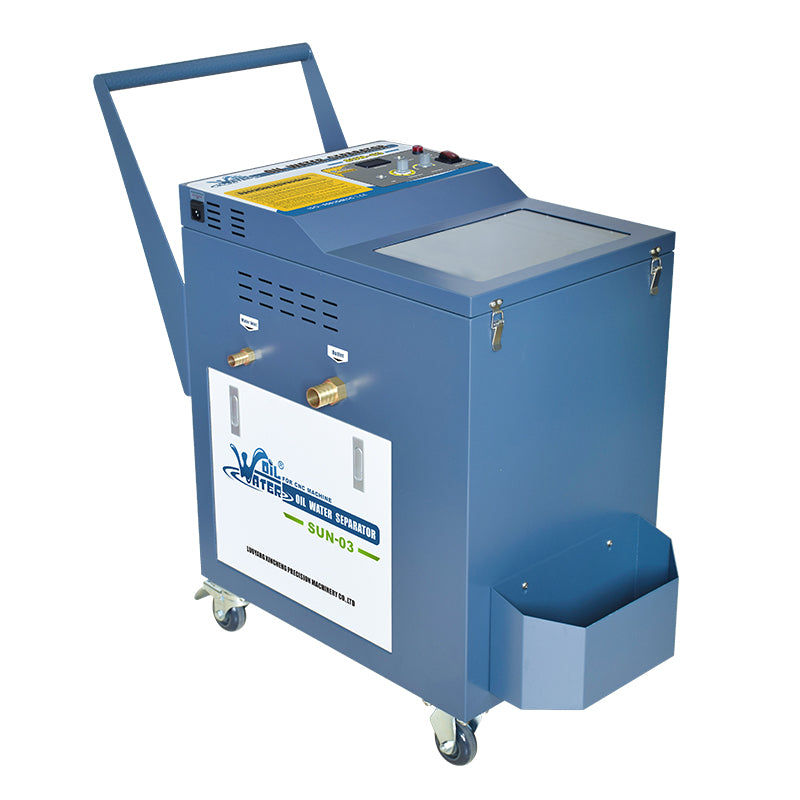

SUN-03 CNC Coolant Oil Separator High Flow Coolant Floating Oil Skimmer

SUN-03 CNC Coolant Oil Separator is an upgraded model designed for CNC machine tools, machining centers, and other industrial equipment. It removes floating oil and impurities from cutting fluids, helping reduce coolant deterioration and unpleasant odors while extending coolant service life.

Key Highlights

• One Unit for Multiple Machines: Portable design allows the SUN-03 to be moved between compatible machine tools for shared coolant maintenance.
• High-Flow Processing: With a rated flow capacity of 1000 L/h, the SUN-03 supports efficient treatment of machine tool coolants.

Product Features

• Floating Oil and Impurity Removal
  The adsorption device collects floating oil, cutting fluid, and impurities and delivers them to the separator. A scraper separates floating oil based on the difference in oil-water proportions, and the processed cutting fluid is returned to the coolant tank.
• Automatic Oil-Level Tracking
  The adsorption device uses the buoyancy difference between the internal and external liquid surfaces to keep the suction port aligned with changes in the liquid level, helping improve floating oil collection efficiency.
• Deodorization and Sterilization
  SUN-03 features deodorization, sterilization, and disinfection functions to help address unpleasant coolant odors and maintain cleaner operating conditions.
• Adjustable Operation
  Oil scraper motor speed is steplessly adjustable from 0 to 90 rpm. The operating time can be set from 0 to 60 minutes to suit different maintenance requirements.
• Designed for Machining Environments
  SUN-03 is designed for coolant maintenance in environments where iron filings may be present, supporting routine cleaning while minimizing unnecessary fluid loss.

Applications

• Removing floating oil from CNC machine tool coolant tanks
• Maintaining cutting fluids in machining centers and other machine tools
• Treating compatible water-based cutting fluids affected by floating oil, impurities, and unpleasant odors
• Shared coolant maintenance across multiple machines in a workshop

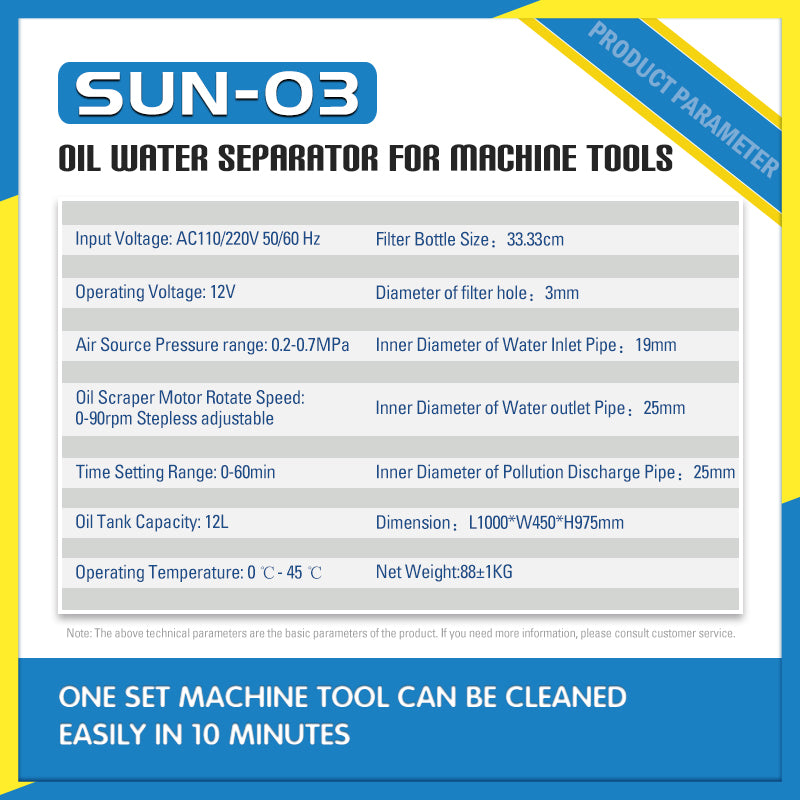

Technical Specifications

• Model: SUN-03
• Input Voltage: AC 220V / 110V
• Frequency: 50 / 60 Hz
• Operating Voltage: 12V
• Air Source Pressure Range: 0.2–0.7 MPa
• Oil Scraper Motor Speed: 0–90 rpm, stepless adjustable
• Time Setting Range: 0–60 minutes
• Flow Capacity: 1000 L/h
• Oil Tank Capacity: 12 L
• Operating Temperature: 0°C–45°C
• Filter Bottle Size: 33.33 cm
• Filter Hole Diameter: 3 mm
• Water Inlet Pipe Inner Diameter: 19 mm
• Water Outlet Pipe Inner Diameter: 25 mm
• Pollution Discharge Pipe Inner Diameter: 25 mm
• Overall Dimensions: 1000 × 450 × 975 mm
• Net Weight: 88 ± 1 kg
